7Semi Vikram 3020 High-Current Single-Channel Brushed DC Motor Driver with 7–32V Input and 20A Continuous Output
The 7Semi Vikram 3020 is a high-current single-channel motor driver designed to control one brushed DC motor from a 7–32V DC motor supply. Its discrete full H-bridge power stage provides bidirectional forward and reverse operation, while separate direction and PWM control inputs allow straightforward integration with microcontrollers and embedded controllers. The module supports up to 20A continuous motor current and short-duration peak currents up to 60A for a maximum of 1 second.
With support for both 3.3V and 5V logic signals, the driver can interface with common Arduino, ESP32, STM32, RP2040, and similar control platforms. A maximum PWM control frequency of 20kHz supports adjustable motor-speed control, while integrated overcurrent, overvoltage, VM undervoltage-lockout, and thermal-shutdown functions help protect the power stage during abnormal operating conditions. The 120°C thermal-shutdown threshold adds protection in high-current robotics, automated vehicles, actuators, and industrial motion-control systems.
Key Features
- Single Motor Channel: Controls 1 brushed DC motor independently
- High Continuous Current: Supports up to 20A continuous motor current
- Peak Current Capability: Supports up to 60A for a maximum of 1 second
- Wide Motor Supply Range: Operates from 7–32V DC
- Bidirectional Control: Supports forward and reverse motor rotation
- PWM Speed Control: Maximum PWM frequency of 20kHz
- Direction + PWM Interface: Dedicated direction and PWM control inputs
- 3.3V/5V Logic Compatible: Interfaces with common microcontroller logic levels
- Discrete H-Bridge: High-current discrete power-stage architecture
- Overcurrent Protection: Protects the output stage against excessive current and fault conditions
- Overvoltage Protection: Helps protect the driver against excessive motor-supply voltage
- Undervoltage Lockout: Prevents unstable operation when the motor supply falls below the required level
- Thermal Shutdown: Disables motor operation at a 120°C thermal-shutdown threshold
- High-Current Terminals: Designed for secure motor and power connections
- Compact High-Power Design: 72 × 42 × 27.22 mm module dimensions
Applications
- High-current brushed DC motor control
- Mobile robots
- Automated guided vehicles
- Differential-drive robots
- Industrial actuators
- Conveyor systems
- Robotic platforms
- Motorised mechanisms
- Automated equipment
- Battery-powered vehicles
- Motion-control prototypes
- Industrial automation
7Semi Vikram 20A Single channel motor driver

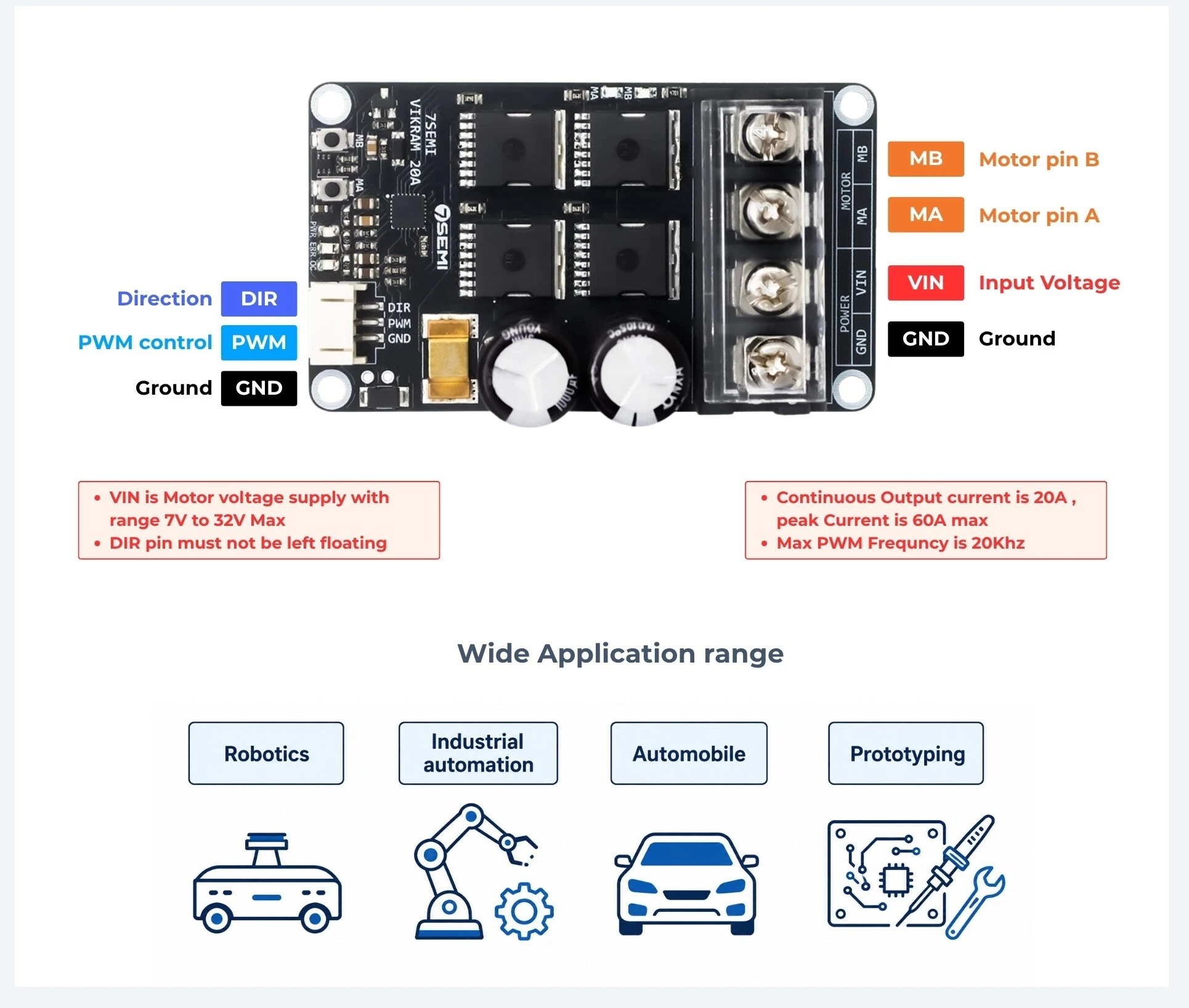

Pinout Reference Guide
7Semi Vikram 20A Single channel motor driver

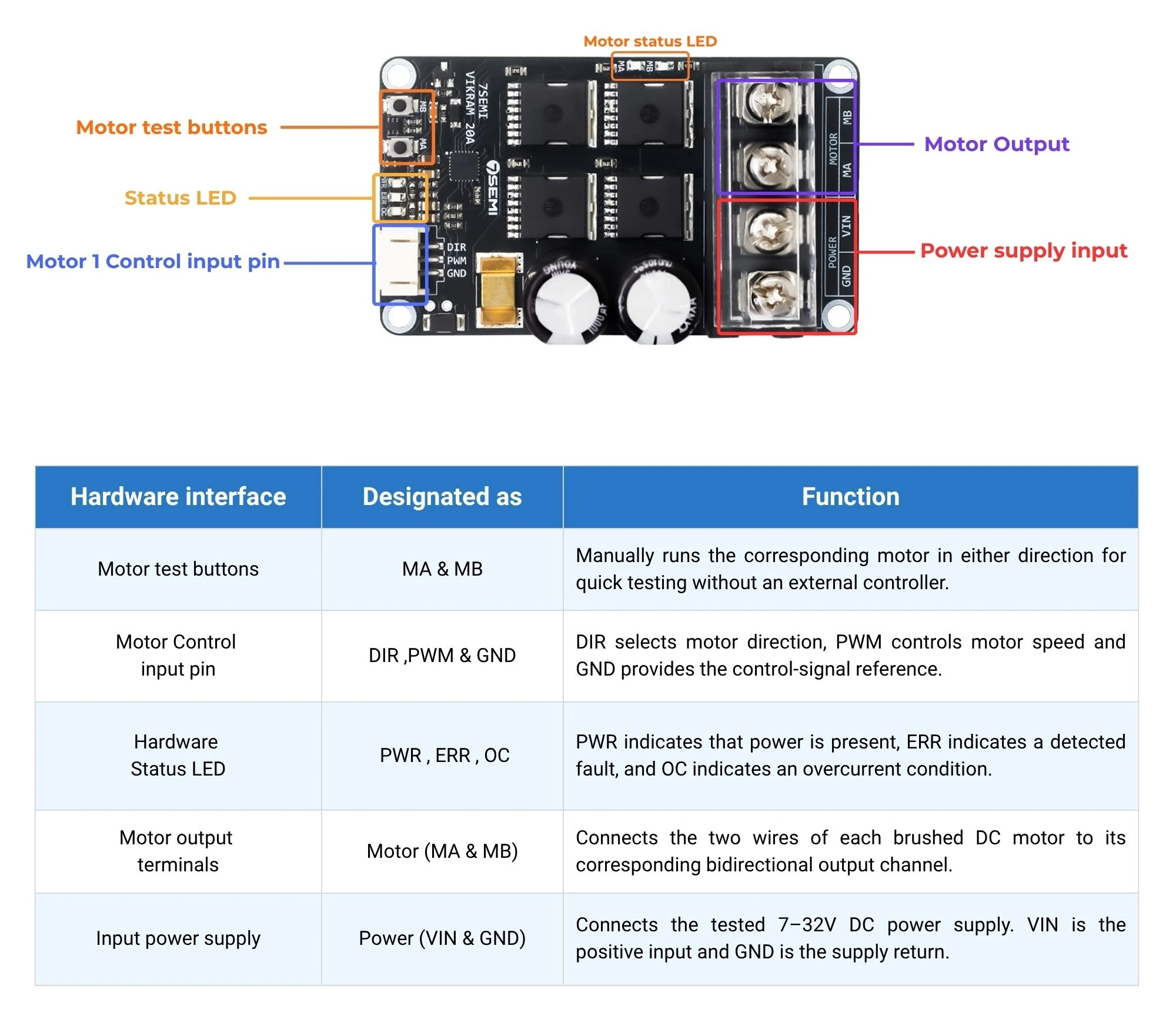

Hardware Interfacing Guide
7Semi Vikram 20A Single channel motor driver

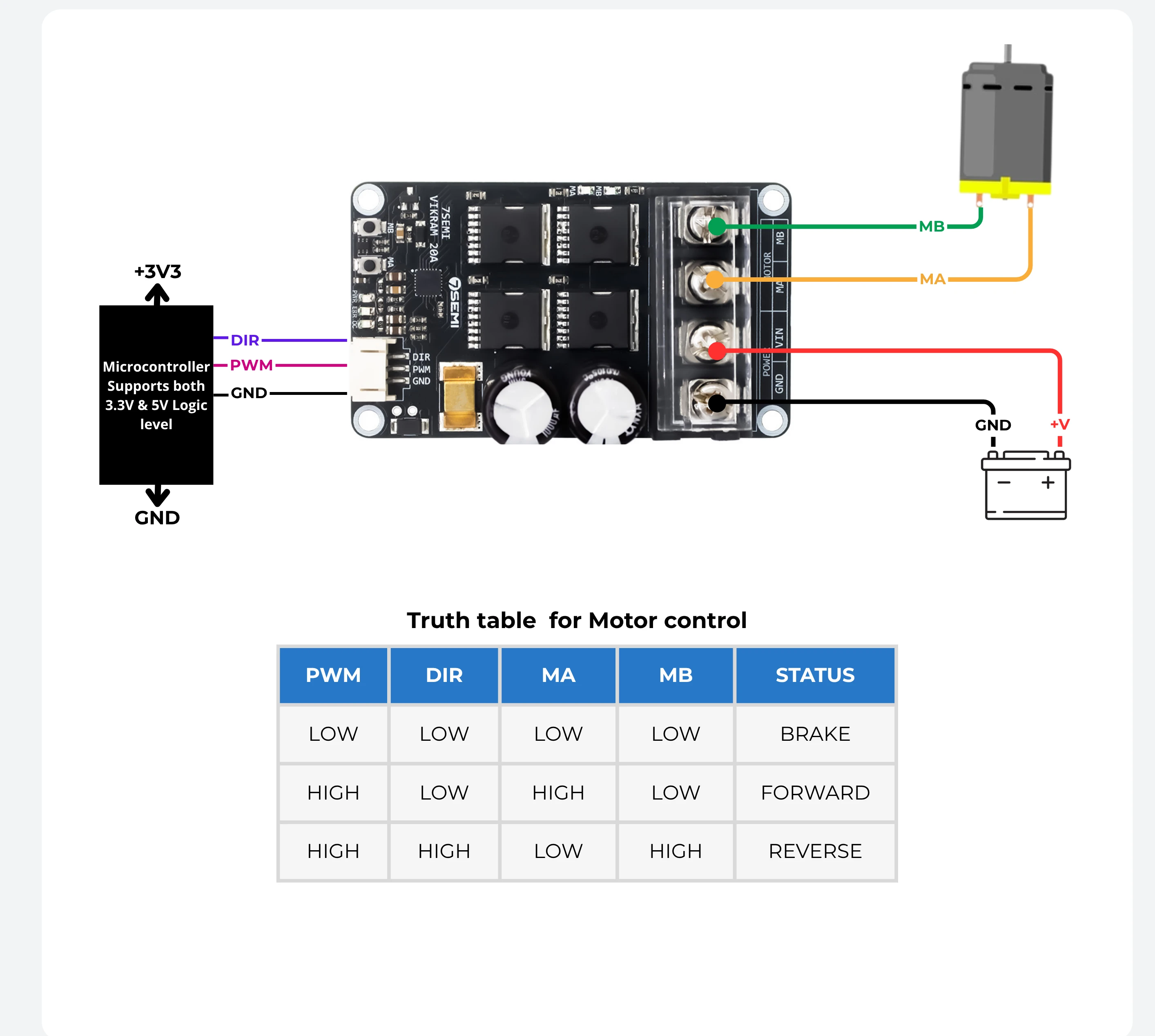

Circuit Reference Guide
Package Includes:
- 1x Motor driver module (MD-10125)
- 1x JST connector cable
