Name: 4.3 inch 480x272 HMI IPS-TFT LCD Display Resistive Touch Flash 8MB UART
Brand: DWIN
SKU: 353-DMG48270C043_06WTR
Price: 1294.9 INR
Availability: InStock

Technical Specifications

Brand:

DWIN

Display Size:

4.3 inch

LCD Type:

IPS, TFT LCD

Viewing Angle:

80/80/80/80

Resolution:

480x272

Active Area (AA):

95.0mm(W)x53.9mm(H)

Brightness:

200nit

Touch Type:

Resistive

Mode:

UART2: ON=TTL/CMOS; OFF=RS232, UART4: ON=TTL/CMOS; OFF=RS232

Data Format:

UART2: N81, UART4: N81/E81/O81/N82

Interface Cable:

10Pin_1.0mm, 10Pin_1.0mm Socket

Rated Power:

Operating Voltage:

4.5~5.5V, Typical Value of 5V

Operating Current:

170mA

Operating Temperature:

-10 C~60 C

Operating Humidity:

10%~90%RH, typical value of 60% RH

Dimensions:

121.9mm (W)x73.2mm (H)x13.4mm (T)

Net Weight:

115g

Flash:

8MB

User Interface:

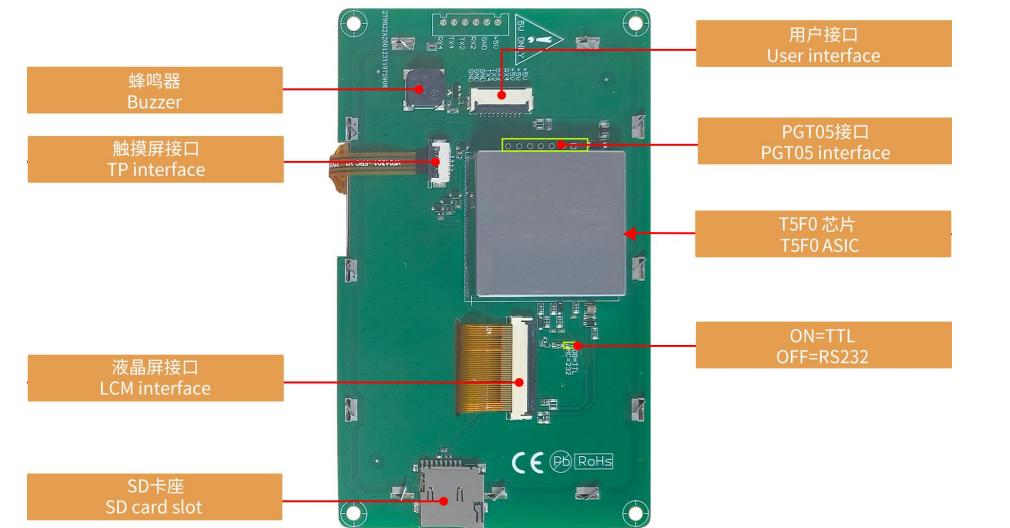

10Pin_1.0mm socket for power supply and serial communication

Buzzer:

3V Passive Buzzer

Display Type:

HMI

Display Panel:

IPS-TFT LCD

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Resources:
Datasheet

4.3-Inch IPS-TFT HMI Display With Resistive Touch, 8 MB Flash Memory And UART Interface

This 4.3-inch HMI display combines a 480x272 IPS-TFT LCD, resistive touch panel, and integrated T5F0 ASIC for embedded control and visualisation applications. It operates on the DGUS II HMI platform, allowing developers to create graphical interfaces for displaying system data, adjusting parameters, selecting functions, and monitoring connected equipment.

The integrated 8 MB flash memory stores interface assets and project data, while the UART interface supports communication with microcontrollers, industrial controllers, and embedded systems. Its resistive touch panel can be operated with a finger, gloved hand, or compatible stylus, making the display well-suited for industrial control panels, instrumentation, automation equipment, and interactive embedded products.

Key Features

4.3-Inch Display: Provides a compact screen size for embedded control panels and space-constrained equipment.
480x272 Resolution: Displays text, icons, status information, menus, and graphical interface elements clearly.
IPS-TFT LCD: Offers consistent image visibility across wider viewing angles.
Resistive Touch Panel: Supports reliable touch input using a finger, glove, or compatible stylus.
T5F0 ASIC: Integrates dedicated processing hardware for running the graphical HMI interface.
DGUS II Platform: Supports the development of customised graphical user interfaces for embedded applications.
8 MB Flash Memory: Provides onboard storage for interface graphics, fonts, icons, and project resources.
UART Communication: Enables serial data exchange with microcontrollers, PLCs, and embedded controllers.
Smart LCM Design: Combines display, touch control, processing, and memory within a single HMI module.
Commercial-Grade Construction: Suitable for commercial equipment, control panels, and embedded user interfaces.
Cost-Effective Integration: Reduces the need for separate display-processing and touch-control hardware.
Customisable Interface: Supports application-specific menus, indicators, buttons, and data-display pages.
