STS3045M TTL Serial-Bus Smart Servo with 6 kgcm Torque, 12-Bit Magnetic Encoder and Aluminium Case
The STS3045M is a digital serial-bus smart servo designed for robotics, industrial equipment, automation systems, and compact drive mechanisms requiring accurate position and motion control. At 6V, it delivers up to 6 kg.cm peak stall torque with a no-load speed of 0.133 sec/60deg. Its 12-bit magnetic encoder provides 4096-position resolution over 360deg, enabling precise angular control without relying on a conventional potentiometer.
The servo combines an aluminium-alloy case, metal gearbox, coreless motor, ball bearings, and FEETECH TTL control electronics in a compact package. It supports 0-360deg position control as well as continuous multi-turn operation for applications requiring wheel-like rotation. Position, speed, voltage, current, temperature, and load monitoring provide useful system feedback, while overload and over-current protection help protect the servo during demanding operation.
Key Features
- 6 kg.cm Stall Torque: Delivers up to 6 kg.cm peak stall torque at 6V for compact robotic and industrial mechanisms.
- TTL Serial-Bus Control: Uses half-duplex asynchronous serial communication for digital command and feedback.
- 360deg Position Control: Supports programmable positioning anywhere within a full 0-360deg rotation.
- Multi-Turn Operation: Supports continuous multi-turn rotation for applications requiring extended rotary movement.
- 12-Bit Magnetic Encoder: Provides 4096-position resolution across 360deg for accurate position sensing.
- Coreless Motor: Provides responsive operation and smooth motion for dynamic control applications.
- Metal Gearbox: Uses metal gears for dependable torque transmission and mechanical durability.
- Aluminium-Alloy Case: Provides a rigid housing with effective heat dissipation for demanding applications.
- Ball Bearings: Supports smooth output-shaft rotation and reduced mechanical friction.
- Acceleration Control: Supports configurable slow-start and slow-stop movement for smoother mechanical operation.
- One-Key Middle Position: Allows convenient setting of the servo centre position.
- Real-Time Feedback: Supports monitoring of position, speed, voltage, current, temperature, and load parameters.
- Overload Protection: Feedback-based protection helps protect the servo against excessive mechanical loading.
- Over-Current Protection: Current monitoring supports protection against excessive current conditions.
- Multiple Servo IDs: Supports addressable IDs from 0 to 253 for multi-servo bus systems.
- High-Speed Communication: Supports serial communication rates from 38400bps to 1Mbps.
- 25T Output Spline: Provides compatibility with suitable 25-tooth servo horns and mechanical linkages.
- Compact Construction: Measures 36 x 15 x 29.2mm for installation in space-constrained robotic assemblies.
Applications
- Industrial automation equipment
- Robotic arms
- Robot joints
- Mobile robots
- Small torque-drive systems
- Pan-and-tilt mechanisms
- Automated positioning systems
- Educational robotics
- Research robots
- Compact actuator systems
- Multi-servo robotic mechanisms
- Continuous-rotation drive systems

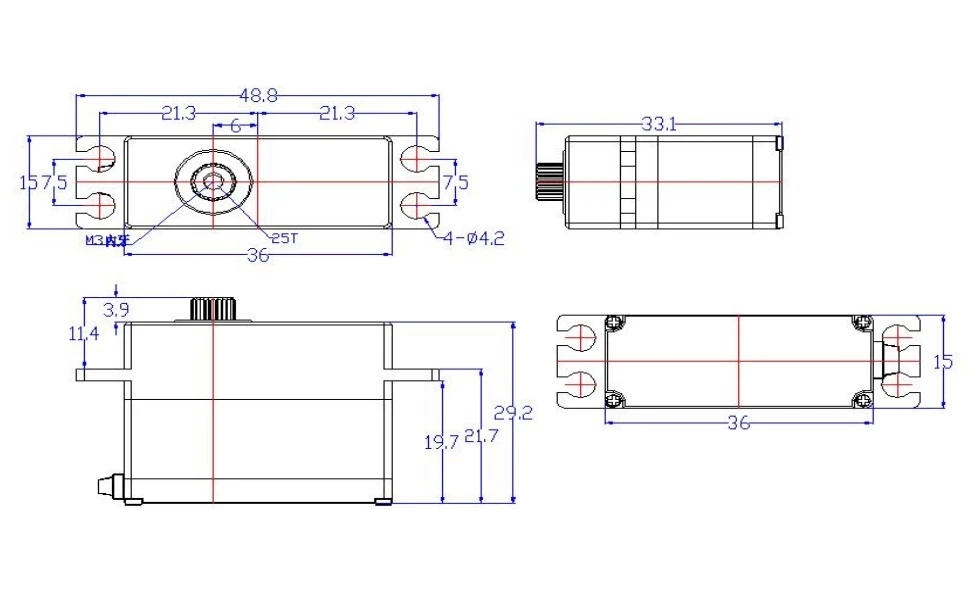

Diagram
