Name: FT90R - 6V 1.5kg.cm PWM 360deg Copper Metal Continuous Rotation Digital Servo Motor
Brand: Feetech
SKU: 501-FT90R
Price: 448.03 INR
Availability: InStock

Technical Specifications

Brand:

Feetech

Storage Temperature Range:

-30 C～80 C

Operating Temperature Range:

-10 C～70 C

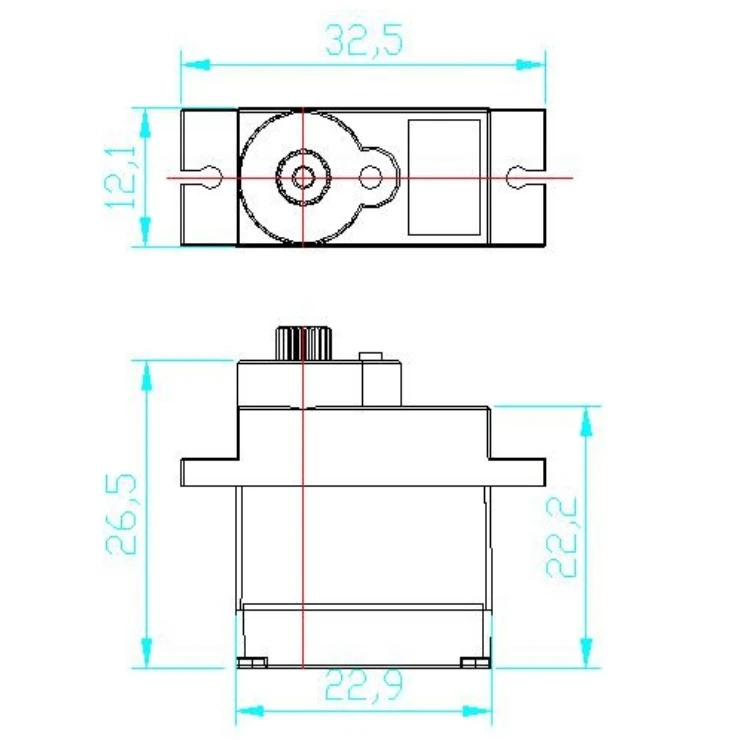

Size:

22.9mmx12.1mmx26.5mm

Weight:

Gear Type:

Plastic Gear

Limit Angle:

360

Bearing:

NO Ball Bearings

Horn Gear Spline:

20T

Horn Type:

Plastic,POM

Case:

ABS

Connector Wire:

250mm +-5 mm JR

Motor:

Metal Brush Motor

Operating Voltage Range:

4.8-6V

Idle current(at stopped):

5mA-6mA

No Load Speed:

130RPM@6V

Running Current(at no load):

900mA @6V

Peak Stall Torque:

1.5kg.cm@6V

Rated Torque:

0.5kg.cm@6V

Stall Current:

900mA@6V

Rotating Direction:

CW (1500~ 1000 usec) , CCW (1500~ 2000 usec)

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Resources:
Datasheet

FT90R Compact Digital Continuous-Rotation Servo with 1.5 kgcm Torque and 130 RPM Speed

The FT90R is a compact digital continuous-rotation servo designed for robotics, RC projects, mobile platforms, automation prototypes, and mechanisms requiring bidirectional rotary motion. Operating from 4.8V to 6V, it delivers up to 1.5 kg.cm peak stall torque at 6V and reaches a no-load speed of 130 RPM at 6V. Unlike a positional servo, the FT90R provides continuous 360deg rotation, with the PWM control signal determining rotation direction and speed.

The servo combines a lightweight 9 g construction with an ABS case, plastic gear train, 20T output spline, and metal-brush motor. Clockwise rotation is controlled with pulse widths from approximately 1500 us to 1000 us, while counterclockwise rotation is controlled from approximately 1500 us towards 2000 us. Its compact 22.9 x 12.1 x 26.5 mm size makes it well-suited for small robots, servo-driven wheels, rotating mechanisms, and space-constrained embedded motion systems.

Key Features

360deg Continuous Rotation: Provides unrestricted bidirectional rotary motion instead of fixed-angle positioning.
1.5 kg.cm Stall Torque: Delivers up to 1.5 kg.cm peak stall torque at 6V.
130 RPM Speed: Provides a no-load rotational speed of up to 130 RPM at 6V.
Digital Servo Control: Uses PWM input for convenient speed and rotation-direction control.
Bidirectional Operation: Supports clockwise and counterclockwise continuous rotation.
4.8V To 6V Operation: Compatible with commonly used servo power-supply voltages.
Metal-Brush Motor: Uses a brushed motor construction for compact servo actuation.
Plastic Gear Train: Provides lightweight mechanical transmission for small robotic and RC applications.
20T Output Spline: Supports compatible servo horns and mechanical attachments.
ABS Housing: Provides a compact and lightweight protective enclosure.
9 g Weight: Suitable for applications where low component weight is important.
Compact Dimensions: Measures 22.9 x 12.1 x 26.5 mm for space-constrained installation.
JR Connector Cable: Includes a 250 +/- 5 mm JR-type servo lead for convenient integration.
Wide Temperature Range: Supports operation from -10 C to 70 C.
