NX5 IO Board - Compact High-Speed IO Expansion Board For Embedded Development And Industrial Applications
The NX5 IO Board is a compact and efficient application board designed for embedded development, edge computing, and industrial automation. It provides a wide range of high-speed interfaces and connectivity options, making it well-suited for prototyping and deployment in real-world systems.
With dual display outputs including HDMI and DP, the board supports flexible visual integration for HMI systems, digital signage, and monitoring solutions. It also includes dual MIPI CSI interfaces, enabling camera integration for vision-based applications such as surveillance and AI imaging.
Equipped with 4x USB3.0 ports and a Micro USB2.0 OTG port, the NX5 IO Board ensures fast data transfer and peripheral connectivity. The onboard Gigabit Ethernet with PoE support simplifies network-based deployments by enabling both data and power over a single cable.
The inclusion of a 40-pin GPIO header with support for I2S, UART, SPI, I2C, PWM, and more makes this board ideal for custom hardware interfacing and embedded control systems.
Key Features:
- Dual Display Output: HDMI and DP for flexible display connectivity
- High-Speed USB Connectivity: 4x USB3.0 host ports and 1x Micro USB2.0 OTG
- Camera Support: 2x MIPI CSI interfaces for vision-based applications
- Network Integration: Gigabit Ethernet with PoE support for simplified deployment
- Wireless Expansion: M.2 E key connector for Wi-Fi and BT modules
- Flexible GPIO Interface: 40-pin header with I2S, UART, SPI, I2C, PWM, and GPIO support
- Compact Form-Factor: Space-efficient design for embedded systems
- Thermal Support: 2-pin fan header for cooling solutions
- Reliable Storage: MicroSD card slot for system and data storage
- System Control: Dedicated power and maskrom buttons for operation and recovery

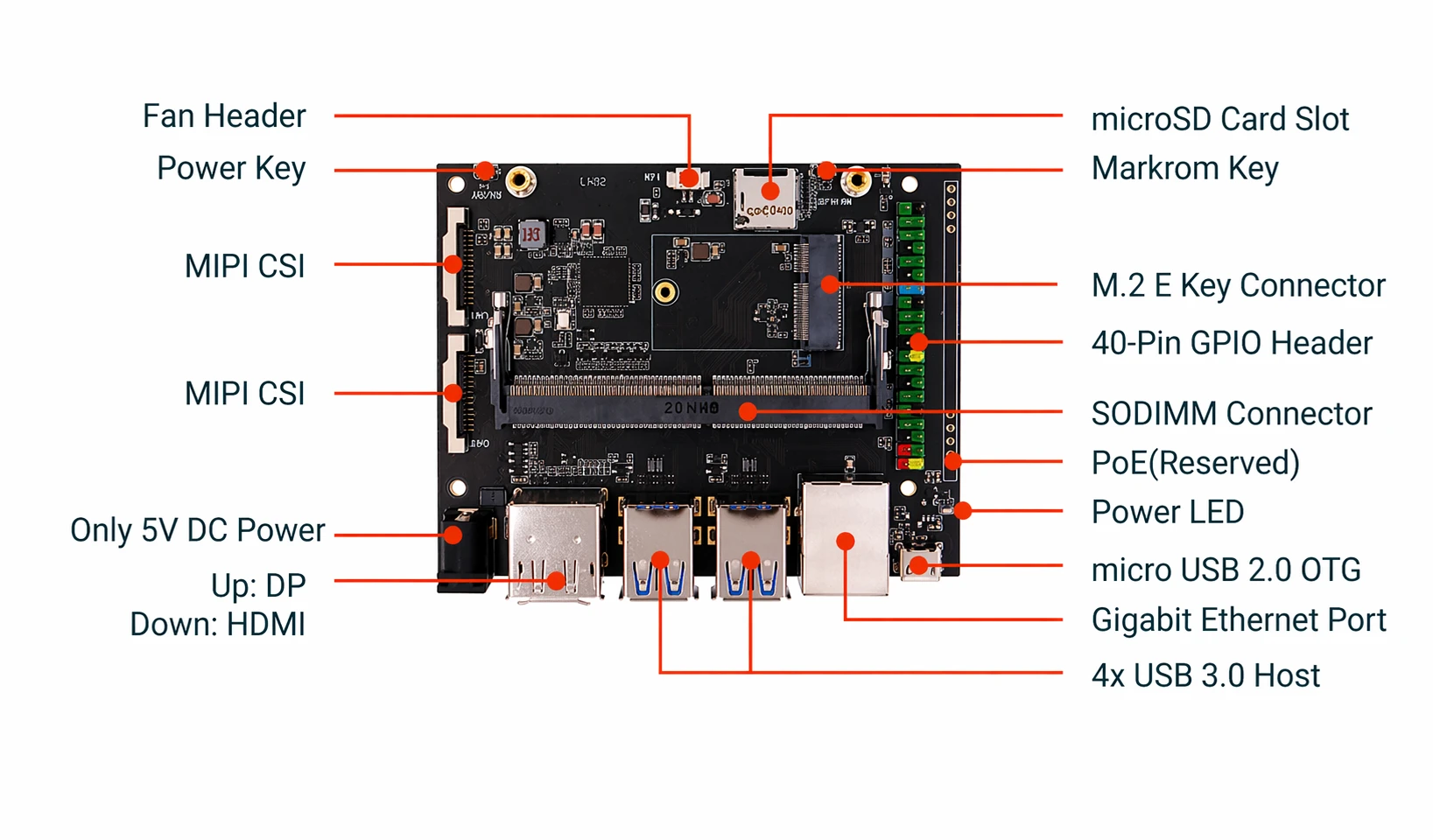

Interfaces
