Radxa CM3I IO Board for CM3I Compute Module

Radxa

No reviews yet Write a Review
SKU:
498-RC120
MPN:
RC120
CM3I IO board for Radxa CM3I with multiple interfaces including HDMI Ethernet SATA and M2 connectors
CM3I IO board for Radxa CM3I with HDMI, MIPI DSI, dual CSI, SATA 3.0, NVMe support, dual Gigabit Ethernet with PoE, and multiple industrial interfaces for embedded and IoT applications. View full description
  • 100% Original Products
  • GST Invoice
  • Earn 3% Cashback
₹3,254.30 inc. GST
₹2,757.88 ex. GST

Technical Specifications

Brand:
Radxa
Display:
1x MIPI DSI,1x HDMI,1x eDP with Touch Panel
Camera:
2xMIPI CSI
USB:
1x USB2.0 HOST Type-A Ports 1x USB3.0 OTG Type-A Port
Ethernet:
1x 1000Mbps Ethernet with PoE support,1x 1000Mbps Ethernet without PoE support
Storage:
1x MicroSD Card Slot,1x SATA3.0 with PSU,1x M.2 M Key Connector for 2280 NVMe SSD
Connectivity:
1x Fan Header,1x RTC Battery Seat,1x SIM Card Slot,1x RS232,1x RS485,1x CAN,1x M.2 B Key with SIM Card Slotfor 4G Module,1x M.2 E Key Connector for Wi-Fi / BT 14-Pin GPIO Header
Button:
1x Power Button,1x Recovery Button
Dimensions:
200mmx140mm

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Radxa CM3I IO Board - High-Performance Io Expansion Board For Embedded Systems And Industrial Applications

The CM3I IO Board is a well-designed application board tailored for the Radxa CM3I, offering extensive connectivity and expansion capabilities. It is well-suited for embedded systems, industrial automation, edge computing, and IoT deployments where multiple interfaces and reliable performance are required.

With support for multiple display outputs including HDMI, MIPI DSI, and eDP with touch panel, this board enables flexible visual integration. It also provides dual MIPI CSI interfaces for camera connectivity, making it suitable for vision-based applications such as surveillance, AI vision, and robotics.

The board includes high-speed storage options like SATA 3.0 with PSU and an M.2 M key connector for 2280 NVMe SSD, ensuring efficient data handling. Dual Gigabit Ethernet ports, including one with PoE support, enhance network flexibility for industrial and remote deployments.

Designed with a wide range of communication interfaces such as RS232, RS485, and CAN, along with M.2 slots for 4G and Wi-Fi BT modules, this board is ideal for scalable and connected systems.

Key Features:

  • Multi-Display Support: HDMI, MIPI DSI, and eDP with touch panel for versatile display integration
  • Dual Camera Interface: 2x MIPI CSI ports for vision and imaging applications
  • High-Speed Storage Options: SATA 3.0 with PSU and M.2 M key for 2280 NVMe SSD
  • Advanced Networking: 2x 1000Mbps Ethernet ports including 1x PoE-supported port
  • Flexible Connectivity: RS232, RS485, CAN for industrial communication
  • Wireless Expansion: M.2 B key for 4G module with SIM slot and M.2 E key for Wi-Fi BT
  • USB Connectivity: USB 2.0 host and USB 3.0 OTG ports for peripherals
  • System Control: Dedicated power and recovery buttons for easy operation
  • Thermal Management: 4-pin fan header for active cooling
  • RTC Support: RTC battery seat for time-based applications

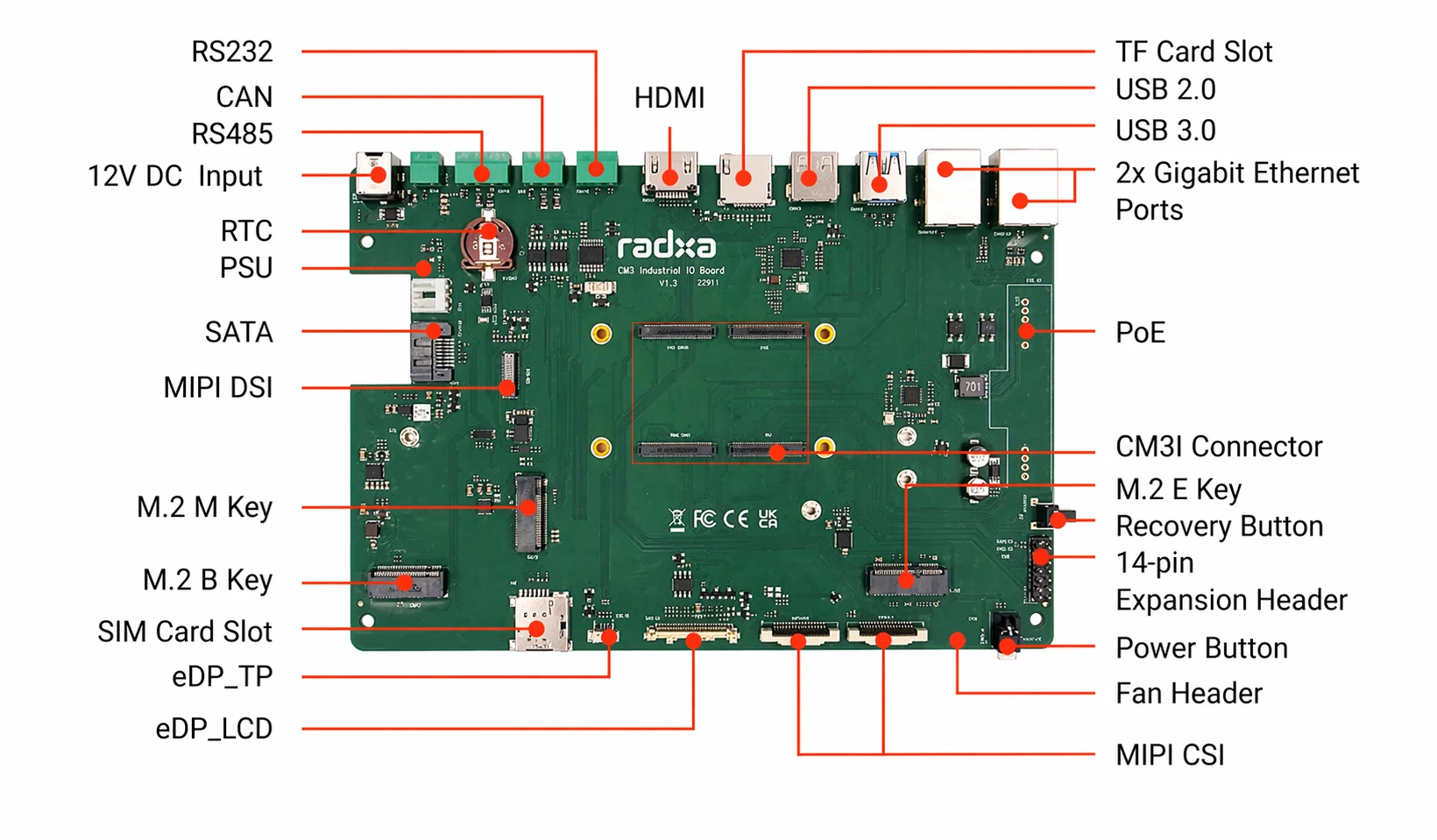

Interfaces
