SGP30 TVOC and eCO2 Air Quality Sensor with I2C and Grove Interface
The M5Stack U088 Unit Mini TVOC/eCO2 is a compact digital gas-sensing module based on the Sensirion SGP30 multi-pixel gas sensor. It is designed for indoor air-quality monitoring and provides processed Total Volatile Organic Compound (TVOC) and equivalent carbon dioxide (eCO2) readings. The SGP30 integrates multiple metal-oxide sensing elements, a temperature-controlled micro-hotplate, and digital signal processing in a compact sensor package.
The module communicates through I2C at address 0x58 and provides TVOC readings from 0 to 60,000 ppb and eCO2 readings from 400 to 60,000 ppm. On-chip baseline compensation supports long-term measurement stability, while humidity compensation can be applied using data from an external humidity sensor. The HY2.0-4P Grove interface enables convenient connection to M5Stack controllers, and two LEGO-compatible mounting holes simplify mechanical integration into air-quality monitors, ventilation systems, and IoT projects.
Key Features
- Sensirion SGP30 digital multi-pixel gas sensor
- Measures Total Volatile Organic Compounds (TVOC)
- Provides equivalent CO2 (eCO2) output
- TVOC output range from 0 to 60,000 ppb
- eCO2 output ranges from 400 to 60,000 ppm
- Ethanol sensing range up to 1000 ppm
- Hydrogen sensing range up to 1000 ppm
- Recommended TVOC and eCO2 sampling rate of 1 Hz
- Digital I2C communication
- Default I2C address: 0x58
- On-chip baseline compensation
- Supports humidity compensation using external humidity data
- HY2.0-4P Grove interface
- 2 × LEGO-compatible mounting holes
- Compact polycarbonate enclosure
- Supports UiFlow1, UiFlow2, Arduino, and Home Assistant integration
- Suitable for indoor air-quality and IoT monitoring
Applications
- Indoor air-quality monitoring
- Air purifier systems
- Demand-controlled ventilation
- Smart home air monitoring
- IoT environmental sensing
- TVOC monitoring systems
- Building automation
- HVAC monitoring
- Smart ventilation systems
- Environmental data logging
- Educational sensor projects
- Home Assistant air-quality nodes

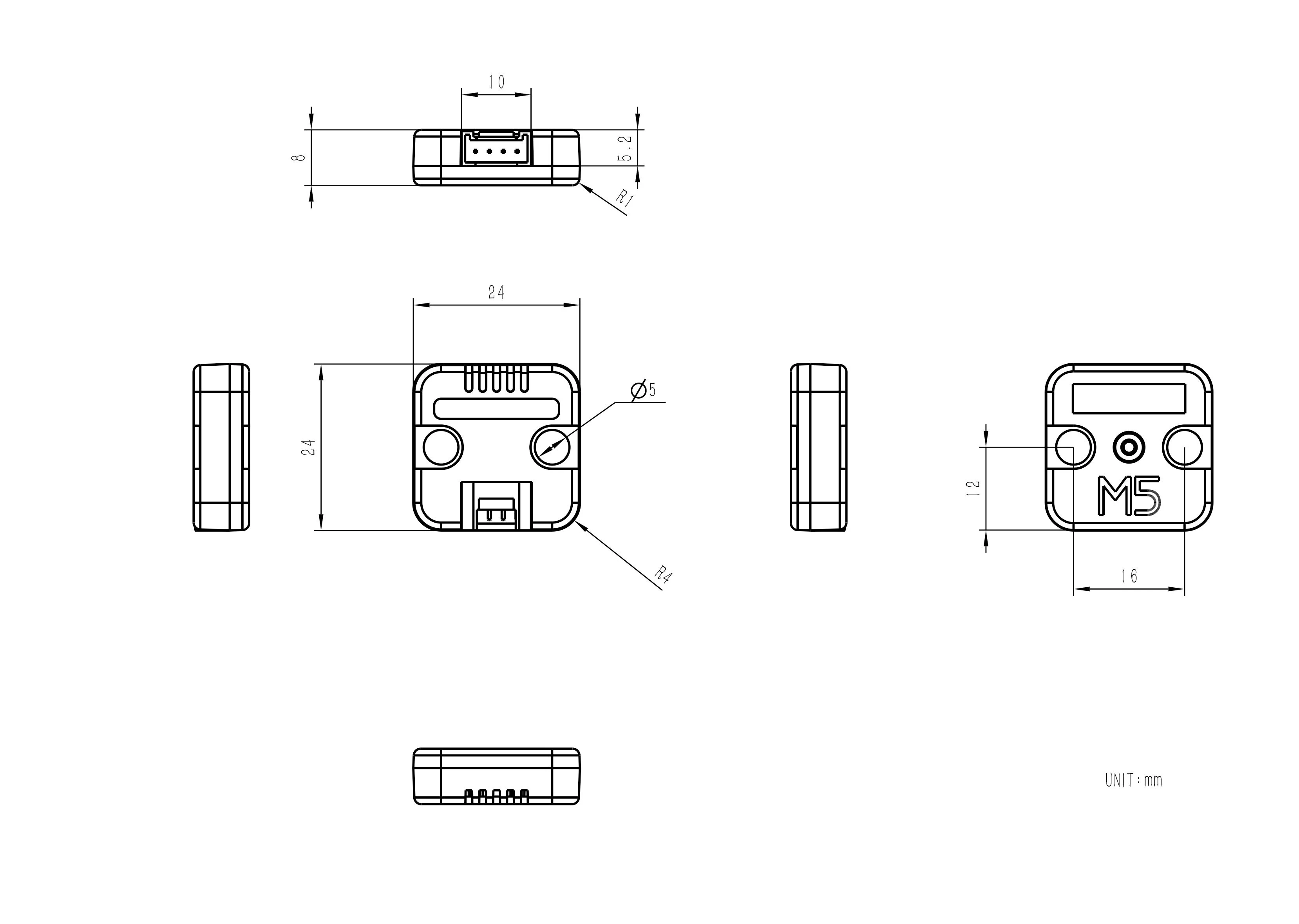

Model Size
Package Includes:
- 1 x Unit Mini TVOC/eCO2
- 1 x HY2.0-4P Grove cable (5cm)
