SAM2695 MIDI Synthesizer Unit with Multi-Channel Audio, 4-Band EQ and Class-D Amplifier
The M5Stack U178 MIDI Synthesizer Unit is a compact audio-synthesis module built around the SAM2695 audio synthesizer chip. It receives standard MIDI data through serial communication and converts the incoming commands into synthesised audio, making it suitable for embedded music systems, digital instruments and interactive sound projects. The module supports multi-channel instrument sound-source configuration along with audio mixing and sound-processing functions.
For additional audio control, the U178 supports adjustment of parameters including 4-band EQ and reverb. An onboard NS4150B Class-D amplifier provides amplified audio output for compact speaker-based applications. With support for the standard MIDI protocol and development through Arduino and UIFlow, the unit is well-suited for music-production experiments, live electronic performances, STEAM education, and programmable MIDI projects.
Key Features
- SAM2695 Synthesizer: Uses the SAM2695 audio synthesizer chip for MIDI-based sound generation and processing.
- Standard MIDI Support: Accepts standard MIDI commands for instrument and audio-control applications.
- Serial Communication: Receives MIDI data through a serial communication interface for straightforward controller integration.
- Multi-Channel Sound Output: Supports configuration of multiple instrument sound sources across MIDI channels.
- Audio Synthesis: Provides embedded sound-generation capability for programmable music systems.
- Audio Mixing: Supports mixing functions for combining multiple sound sources.
- 4-Band EQ: Allows adjustment of 4-band equalisation parameters for tonal control.
- Reverb Control: Supports configurable reverb and additional sound-effect processing.
- Class-D Amplifier: Integrates an NS4150B Class-D amplifier for efficient amplified audio output.
- Programmable Operation: Suitable for software-controlled instrument selection, sound parameters, and MIDI playback.
- Development Support: Compatible with Arduino and UIFlow development environments.
- Compact Music Module: Designed for embedded instruments, portable music systems, and education projects.
Applications
- MIDI synthesizer projects
- Electronic musical instruments
- Music-production systems
- Improvisational performance
- Electronic music stages
- Embedded audio systems
- Programmable sound modules
- Interactive art installations
- STEAM education
- MIDI controllers
- Audio-processing projects
- DIY synthesizers
- Music-learning systems
- Digital instrument prototypes

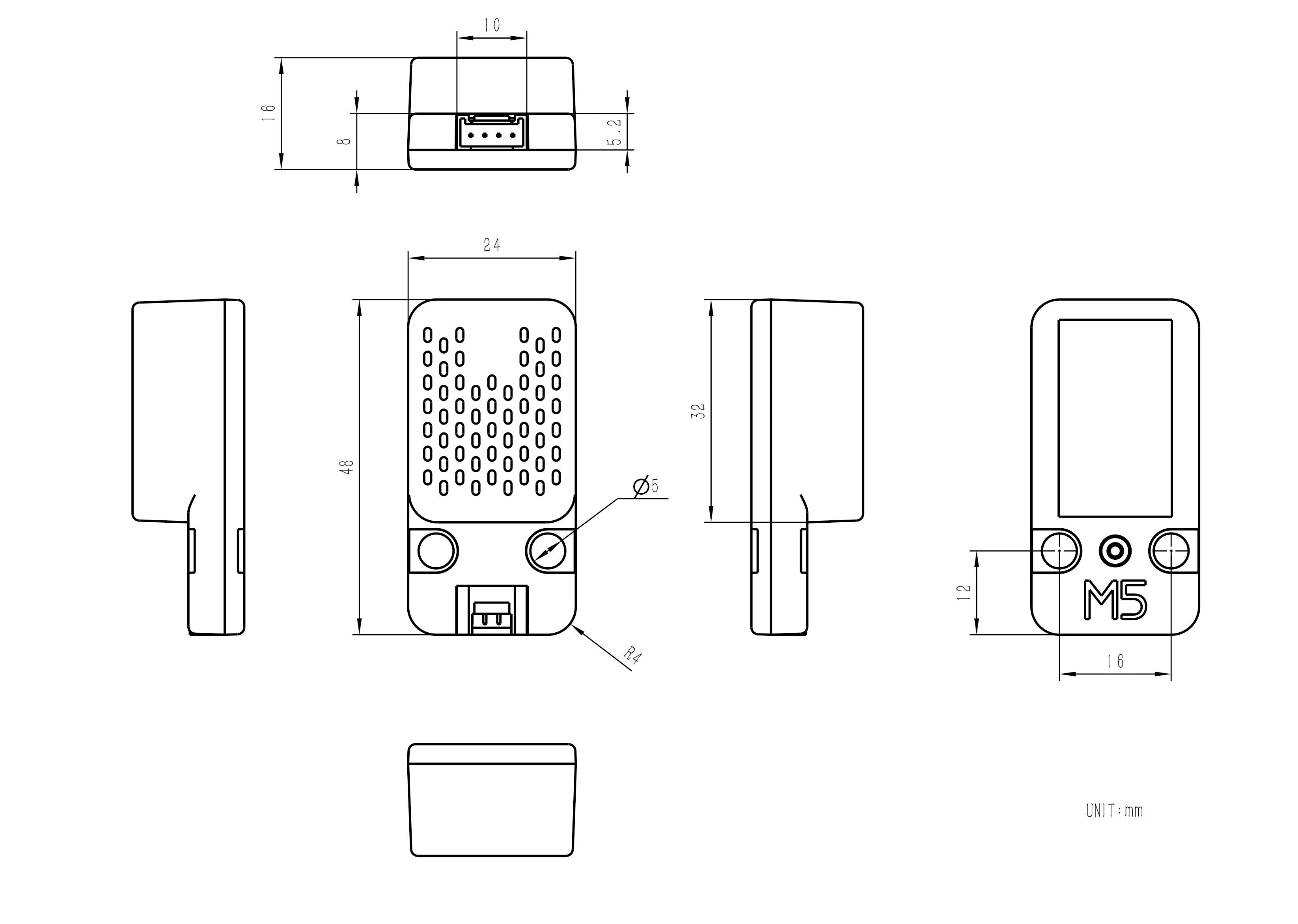

Model Size
Package Includes:
- 1 x Unit Synth
- 1 x HY2.0-4P Grove Cable (20cm)
