FPV AIO 5.8G 25MW 40CH 800TVL Transmitter LST-S4+FPV Camera With OSD Parts For RC Racing Drone

ReadytoSky

No reviews yet Write a Review
SKU:
447-CA-123
MPN:
CA-123

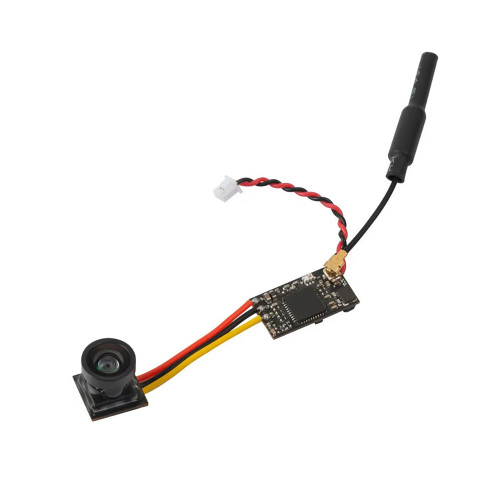

FPV AIO 5.8GHz 25mW 40CH transmitter with 800TVL camera for RC racing drones
Compact FPV AIO camera with integrated 5.8GHz 25mW 40CH VTX and 800TVL camera. Supports Raceband, OSD, NTSC/PAL switching, and 1S LiPo input for RC racing drones. View full description
  • 100% Original Products
  • GST Invoice
  • Earn 3% Cashback
₹2,574.63 inc. GST
₹2,452.03 ex. GST
16 people looking at this.

Technical Specifications

Brand:
ReadytoSky
Sensor:
1/4 CMOS
Resolution:
800TVL
Lens:
2.1MM M8
Format:
NTSC / PAL (switchable)
Power Consumption:
380mA @ 3 · 7V
Power:
3.6-5.5V
Support Video Format:
NTSC / PAL
Output Impedance:
75 Ohm
Output Signal Strength:
23 ~ 24dBm
Output Power:
25mW
Wireless Channel:
40CH
Antenna:
RHCP circular polarization clover leaf antenna
Operating Voltage:
3.6V ~ 5.5V
Current:
100mA
Audio Carrier:
6.5MHz

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

FPV AIO 5.8GHz 25mW 40CH Video Transmitter with 800TVL Camera and OSD Support for RC Racing Drones

The FPV AIO 5.8G 25mW 40CH Transmitter with integrated 800TVL camera is a lightweight all-in-one FPV solution designed for RC racing drones, micro quadcopters, and DIY FPV aircraft. Combining a high-quality FPV camera and 5.8GHz video transmitter into a single compact unit, this module reduces wiring complexity while delivering reliable real-time video transmission for immersive FPV flying.

Equipped with 40 channels including Raceband support, the module provides excellent compatibility with most FPV goggles and receivers. The 800TVL camera delivers clear live video with selectable NTSC/PAL formats, while the flexible cable design allows easier camera positioning in tight drone frames. With support for 1S LiPo or regulated 5V input and compatibility with flight controller OSD systems, this FPV transmitter camera combo is ideal for racing, freestyle, and beginner FPV drone builds.

Key Features

  • All-in-One FPV Design: Integrated 5.8GHz video transmitter and 800TVL camera.
  • Ultra-Lightweight Construction: Suitable for micro FPV drones and racing quadcopters.
  • 800TVL FPV Camera: Delivers sharp and clear live video transmission.
  • 5.8GHz 40CH VTX: Supports 40 channels including Raceband frequencies.
  • 25mW Output Power: Stable short-range FPV transmission compliant with racing standards.
  • Flexible Camera Cable: Allows convenient mounting and angle adjustment.
  • OSD Compatibility: Supports flight controller On-Screen Display integration.
  • Plug-and-Play Installation: Simple wiring for fast setup.
  • Push Button Controls: Easy channel, band, and video system selection.
  • NTSC/PAL Switchable: Supports multiple video output formats.
  • Wide Power Input: Operates from 1S LiPo battery or regulated 5V supply.

Applications

  • FPV racing drones
  • Tiny whoop drones
  • Micro quadcopters
  • DIY FPV aircraft
  • RC drone upgrades
  • Beginner FPV projects

Package List:

  • 1 X S2 AIO FPV Camera
  • 1 X wire
  • 1 X User Manual
