ESP32-S3 Camera Development Kit with GC0308 Camera, 9-Axis Motion Sensing, 8 MB PSRAM and UVC Support
The M5Stack AtomS3R Camera Kit is a compact IoT development controller integrating image capture, motion sensing, and wireless connectivity in a 24.0 x 24.0 x 13.5 mm form factor. It is powered by the ESP32-S3-PICO-1-N8R8 SoC with 8 MB Flash, 8 MB PSRAM, and Wi-Fi connectivity. A 0.3 MP GC0308 camera provides image-acquisition capability, while protective glass in front of the camera helps reduce dust exposure. The enhanced 3D antenna is designed to provide stable wireless performance for connected embedded applications.
For motion and orientation sensing, AtomS3R-CAM combines a BMI270 6-axis IMU with a BMM150 3-axis geomagnetic sensor to create a 9-axis sensing system. Factory firmware supports UVC (USB Video Class), allowing the device to operate as a driver-free USB camera when connected to a compatible host. The controller also supports infrared transmission control and includes USB Type-C, an HY2.0-4P expansion interface, 6 exposed GPIOs, and power pins for external hardware integration. These features make it suitable for IoT monitoring, smart-device control, wearable development, and educational embedded projects.
Key Features
- ESP32-S3-PICO-1-N8R8 SoC: Provides the main processing platform with integrated Wi-Fi connectivity for IoT and embedded applications.
- 8 MB Flash: Offers onboard storage for firmware, application code, and device resources.
- 8 MB PSRAM: Provides additional working memory for camera, image-processing, and data-intensive applications.
- 0.3 MP GC0308 Camera: Integrated camera enables image acquisition for monitoring and embedded vision projects.
- UVC Camera Support: Factory firmware supports USB Video Class operation for use as a driver-free USB camera with compatible hosts.
- BMI270 6-Axis IMU: Provides 3-axis acceleration and 3-axis angular-rate sensing for motion and orientation applications.
- BMM150 Geomagnetic Sensor: Integrated 3-axis magnetic sensing supports directional and orientation measurements.
- 9-Axis Sensor System: Combines the BMI270 6-axis IMU and BMM150 3-axis geomagnetic sensor.
- Infrared Transmission: Supports IR transmission control for compatible remote-control applications.
- Enhanced 3D Antenna: Updated antenna design supports stable wireless connectivity.
- Camera Protective Glass: Front glass helps reduce dust exposure around the camera while maintaining a clear imaging path.
- 5 V to 3.3 V Power Management: Integrated power circuit provides the required operating voltage for onboard electronics.
- USB Type-C Interface: Supports device power, firmware download, and UVC camera connectivity.
- HY2.0-4P Expansion: Provides connection to compatible M5Stack Units and peripheral hardware.
- 6 GPIO Pins: Exposed GPIO and power pins support sensors, actuators, and custom expansion circuits.
- Compact Form Factor: Measures 24.0 x 24.0 x 13.5 mm for space-constrained embedded applications.
- Multiple Development Platforms: Supports Arduino IDE, ESP-IDF, and PlatformIO.
Applications
- Driver-free USB cameras
- IoT monitoring
- Image-acquisition systems
- Motion detection
- Orientation sensing
- Wearable devices
- Smart-device control
- Embedded camera projects
- Remote monitoring terminals
- Motion-tracking devices
- Educational development
- IoT sensor nodes
- Infrared-control projects
- Compact embedded vision systems
- Wireless monitoring devices

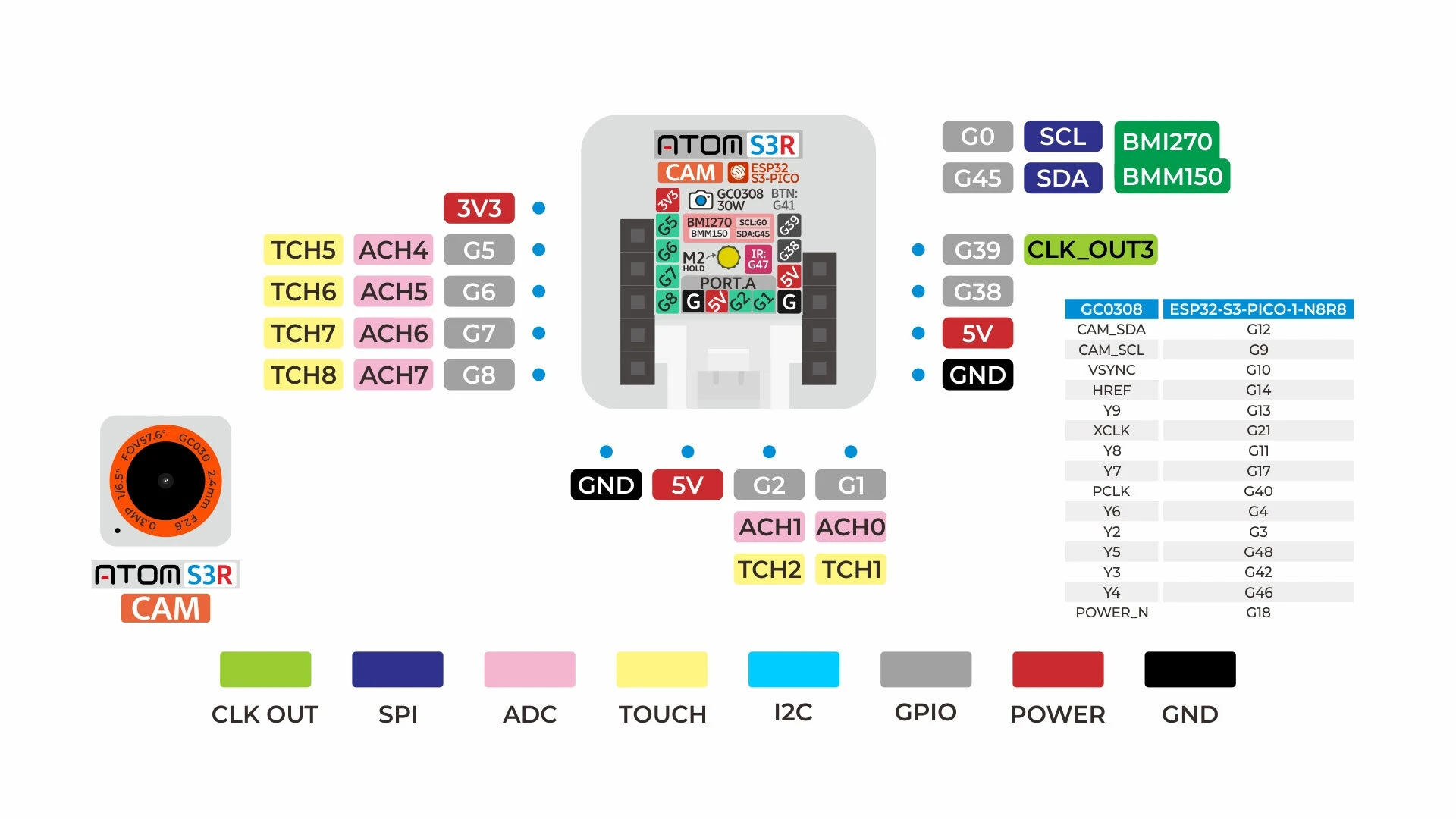

PinMap

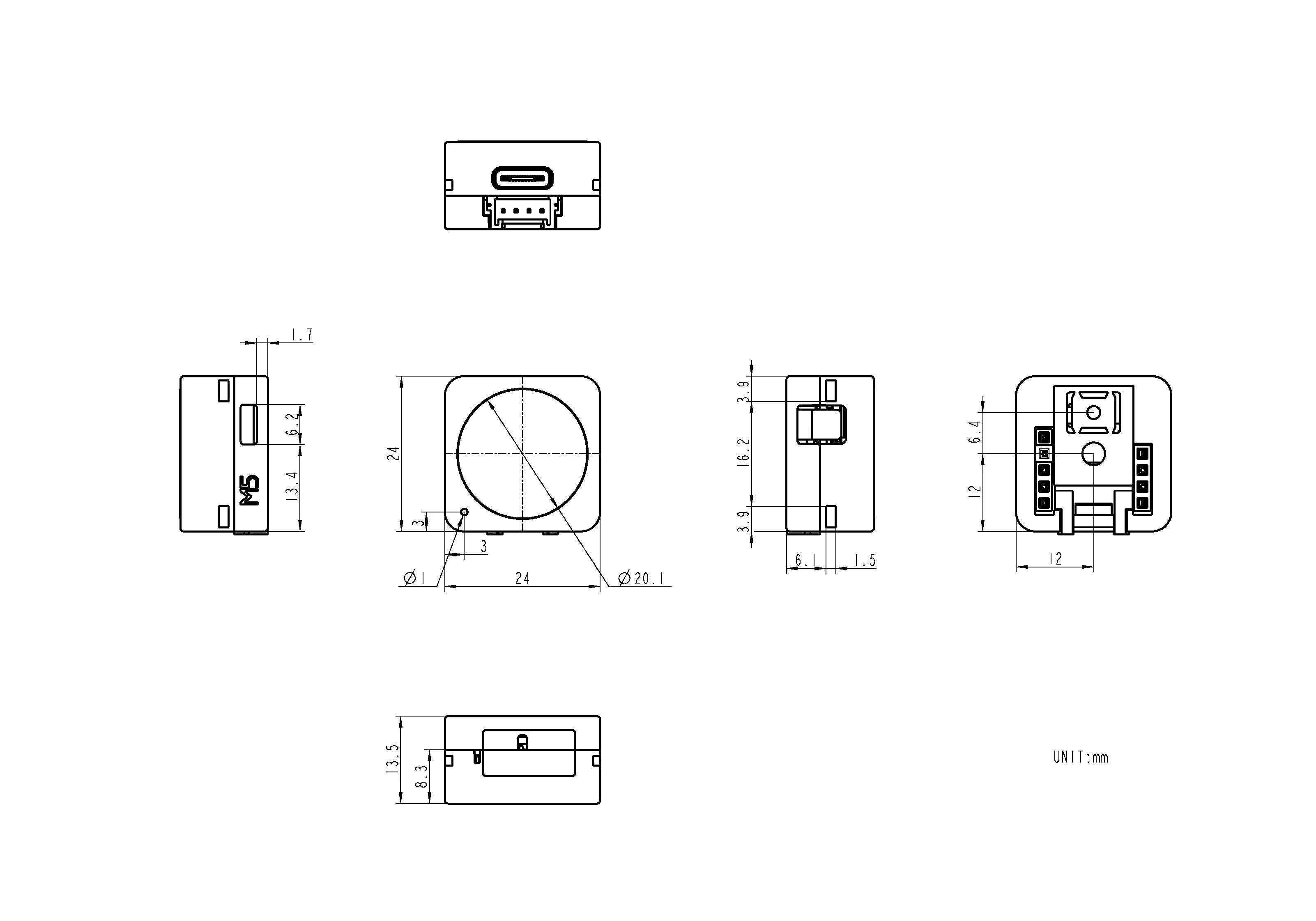

Model Size
