7Semi SCD43 High-Accuracy CO2, Temperature and Humidity Sensor Breakout with I2C and Qwiic
The 7Semi SCD43 CO2, Temperature and Humidity Sensor Breakout is designed for indoor air-quality monitoring, ventilation control, smart-building systems, and connected environmental sensing. It uses the Sensirion SCD43, which combines PASens photoacoustic NDIR CO2 measurement with integrated temperature and relative-humidity sensing. The sensor provides a CO2 output range of 0–40,000ppm, with specified CO₂ measurement accuracy of +-(30ppm + 3% of reading) across the 400–5,000ppm specified measurement range.
The breakout communicates over I2C at the fixed 7-bit address 0x62 and supports automatic self-calibration (ASC), forced recalibration (FRC), periodic measurement, and single-shot measurement modes. The board accepts 3.6–5.5V through VCC and provides Qwiic connectivity for convenient integration with compatible controllers. When powered through VCC, the 3V3 pin provides a regulated 3.3V output rated up to 200mA; alternatively, the board can be powered directly through 3V3. VCC and 3V3 must not be powered simultaneously.
Key Features
- Three Environmental Measurements: Measures CO₂ concentration, temperature, and relative humidity
- True CO₂ Measurement: Uses Sensirion PASens photoacoustic NDIR technology
- Wide CO₂ Output Range: Provides CO₂ output from 0–40,000ppm
- Specified CO₂ Range: Accuracy specified from 400–5,000ppm
- High CO₂ Accuracy: +-(30ppm + 3% of measured value) from 400–5,000ppm
- I²C Interface: Digital communication using fixed 7-bit address 0x62
- Qwiic Connectivity: Supports convenient plug-in I2C integration
- Automatic Self-Calibration: ASC helps maintain long-term CO2 measurement accuracy under suitable operating conditions
- Forced Recalibration: FRC allows recalibration against a known CO2 reference
- Single-Shot Measurement: Supports on-demand measurements for reduced average power consumption
- Integrated Temperature Sensor: Typical +-0.8°C accuracy from 15°C to 35°C
- Integrated Humidity Sensor: Typical +-6%RH accuracy under specified conditions
- Wide VCC Range: Supports 3.6–5.5V board supply through VCC
- Regulated 3.3V Output: 3V3 pin provides up to 200mA when powered through VCC
- Compact Breakout: 30 × 22 × 7.83mm board dimensions
Applications
- Indoor air-quality monitors
- HVAC ventilation control
- Smart buildings
- Demand-controlled ventilation
- Home automation
- IoT environmental monitoring
- Office and classroom CO2 monitoring
- Building-management systems
- Air-quality data loggers
- Environmental instrumentation
- Embedded sensing systems
SCDX CO2 Measurement Sensor

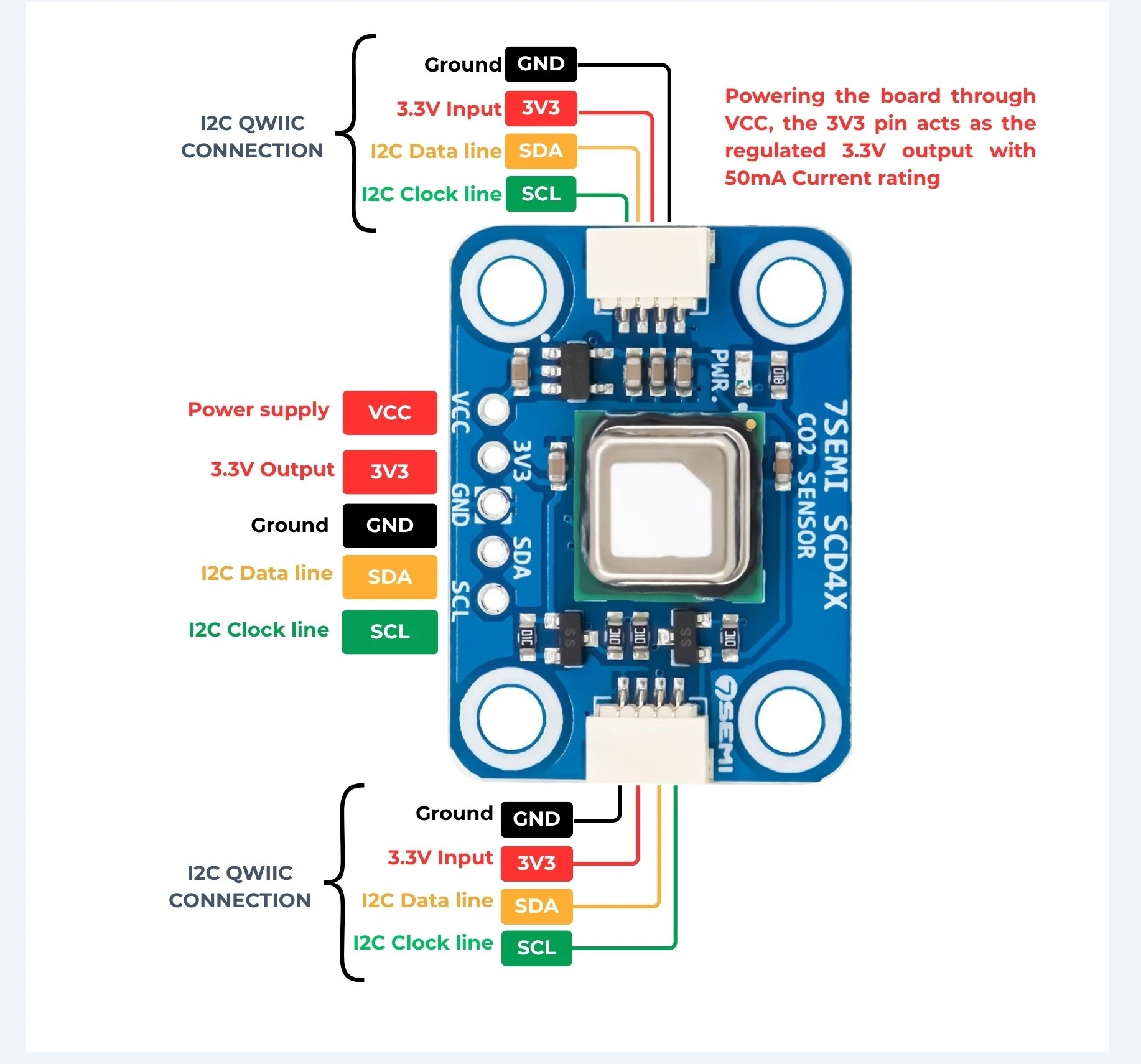

Pinout Reference Guide
Calibration Certificate
A calibration certificate is available for the sensor. To request the certificate, please email us the sensor serial number, and we will share the corresponding calibration certificate.
Package Includes:
- 1x7Semi SCD43 Breakout Board (ES-12295)
- 1xPin Header
