7Semi Compact SCD43 CO2, Temperature and Humidity Sensor Breakout with I2C Interface
The 7Semi SCD43 CO2, Temperature and Humidity Sensor Breakout Mini is a compact environmental-sensing module based on Sensirion's SCD43. It combines direct CO2 measurement with integrated temperature and relative-humidity sensing, making it suitable for indoor air-quality monitors, HVAC controls, smart-building systems, IoT devices, thermostats, and space-constrained embedded applications. The SCD43 uses PASens photoacoustic NDIR technology and provides a CO2 output range of 0–40,000ppm. Its specified CO₂ measurement accuracy is +-(30ppm + 3% of reading) across the 400–5,000ppm specified measurement range.
The Mini breakout communicates through I2C and accepts a 2.4–5.5V supply, allowing operation from common 3.3V and 5V embedded systems. It supports automatic self-calibration (ASC), forced recalibration (FRC), periodic measurement, low-power operation, and single-shot measurements. At only 20 × 20 × 7.5 mm, the board provides the SCD43 sensing functions in a smaller footprint than the larger 7Semi SCD43 breakout.
Key Features
- Three Environmental Measurements: Measures CO₂ concentration, temperature, and relative humidity
- True CO₂ Measurement: Uses Sensirion PASens photoacoustic NDIR technology
- Wide CO₂ Output Range: Provides output values from 0–40,000ppm
- Specified CO₂ Range: Accuracy specified from 400–5,000ppm
- High CO₂ Accuracy: +-(30ppm + 3% of measured value) from 400–5,000ppm
- I²C Interface: Digital communication for straightforward embedded integration
- Automatic Self-Calibration: ASC supports long-term CO2 measurement stability under suitable operating conditions
- Forced Recalibration: FRC enables recalibration against a known CO2 reference
- Single-Shot Mode: Supports on-demand measurements for low-duty-cycle applications
- Temperature Sensing: Typical ±0.8°C accuracy from 15°C to 35°C
- Humidity Sensing: Typical ±6%RH accuracy under specified conditions
- Wide Supply Range: Operates from 2.4–5.5V
- Compact Mini PCB: Measures only 20 × 20 × 7.5 mm
- Factory-Calibrated Sensor: Calibration certificate can be requested using the sensor serial number
Applications
- Indoor air-quality monitors
- HVAC ventilation control
- Smart thermostats
- Smart-building systems
- Demand-controlled ventilation
- IoT environmental monitors
- Office and classroom CO₂ monitoring
- Air purifiers
- Building-management systems
- Environmental data loggers
- Compact embedded sensing systems
- Battery-powered monitoring devices
SCD4X CO2 Measurement Sensor

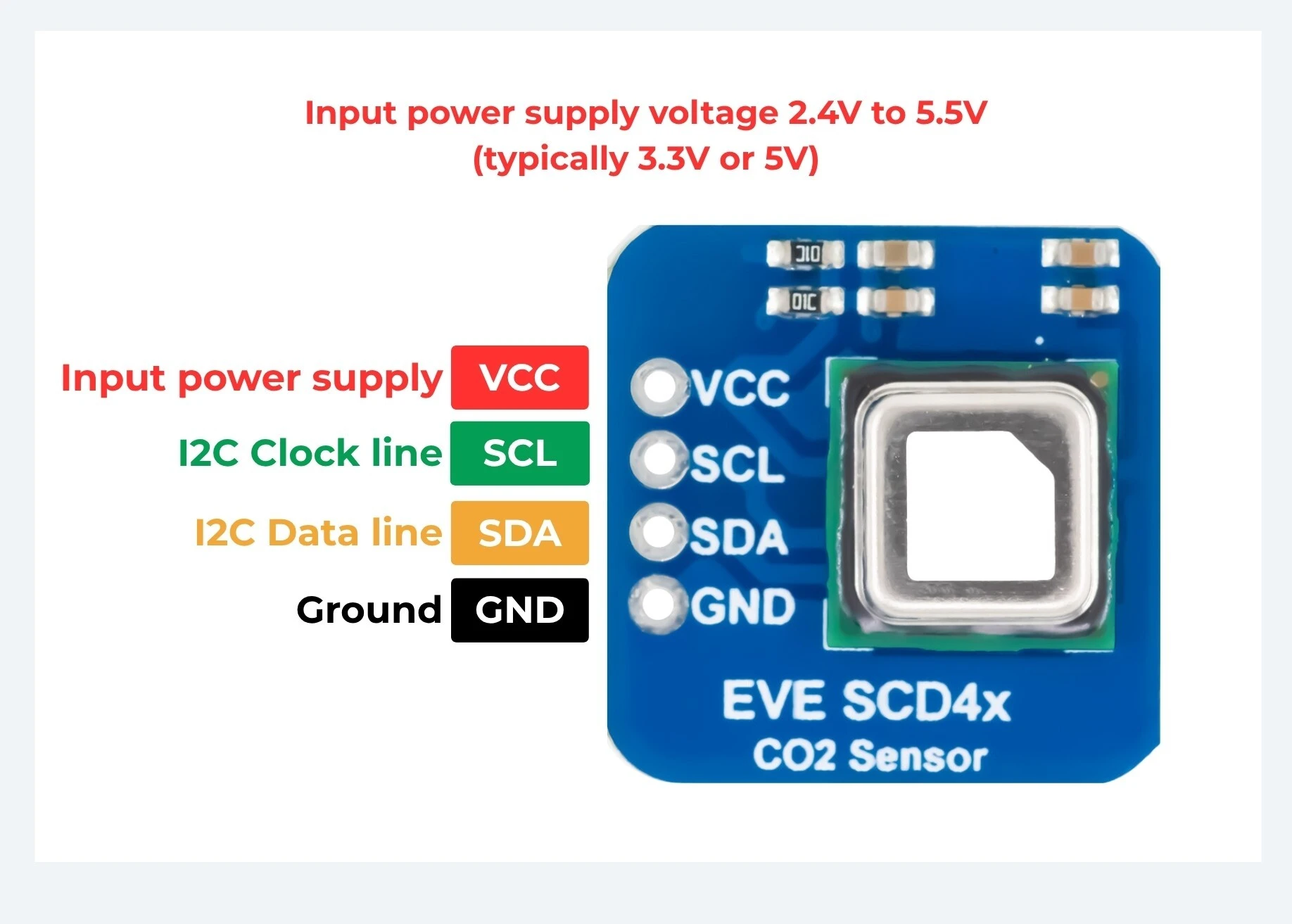

Pinout Reference Guide
Calibration Certificate
A calibration certificate is available for the sensor. To request the certificate, please email us the sensor serial number, and we will share the corresponding calibration certificate.
Package Includes:
- 1x7Semi SCD43 Breakout Board (ES-12295-v1)
- 1xPin Header
