10A 5V-30V Input Dual Channel DC Motor Driver For Robotics And Industrial Automation
The 7Semi VIKRAM 3010D dual-channel DC motor driver is designed for applications that need reliable high-current motor control with flexible voltage support. It operates from 5V to 30V DC input and delivers up to 10A continuous current per channel, making it suitable for demanding robotics, AGVs, automation systems, and motor-driven machinery.
This dual-channel DC motor driver gives smooth control over two DC motors independently. It supports forward and reverse motion, braking, and PWM-based speed control for precise motor performance. With support for 1.8V, 3.3V, and 5V logic input, it can be integrated easily with modern microcontrollers, development boards, and embedded control systems.
The board is built for stable operation in high-load environments. Strong screw terminals provide secure motor and power connections, while onboard capacitors help manage sudden current variation during motor startup and load changes. Built-in thermal shutdown and overcurrent protection add an extra layer of safety for long-term use in industrial and robotic setups.
Key Features
- Dual Motor Control Drives 2 high-power DC motors independently for motion control applications
- High Current Capacity Supports up to 10A continuous current per channel for heavy load motors
- Wide Input Voltage Range Operates from 5V to 30V DC for flexible system design
- Direction And Speed Control Enables forward and reverse braking and PWM speed regulation
- Multi Voltage Logic Compatibility Works with 1.8V, 3.3V and 5V control signals
- Secure Terminal Connections Uses strong screw terminals for reliable power and motor wiring
- Built-In Protection Includes thermal shutdown and overcurrent protection for safer operation
- Status And Fault Monitoring LED indicators help monitor driver status and fault conditions
- Stable High Load Performance Onboard capacitors support current surge handling during motor switching
- Industrial Ready Design Suitable for robotics AGVs, automation systems and high-power motor projects
Applications
The 7Semi dual-channel motor driver is a practical choice for robotic platforms, automated guided vehicles, conveyor systems, industrial automation, DIY motor control projects, and other systems that require precise and dependable dual DC motor operation. Its high current capacity and wide input range make it useful in both prototyping and deployment environments.

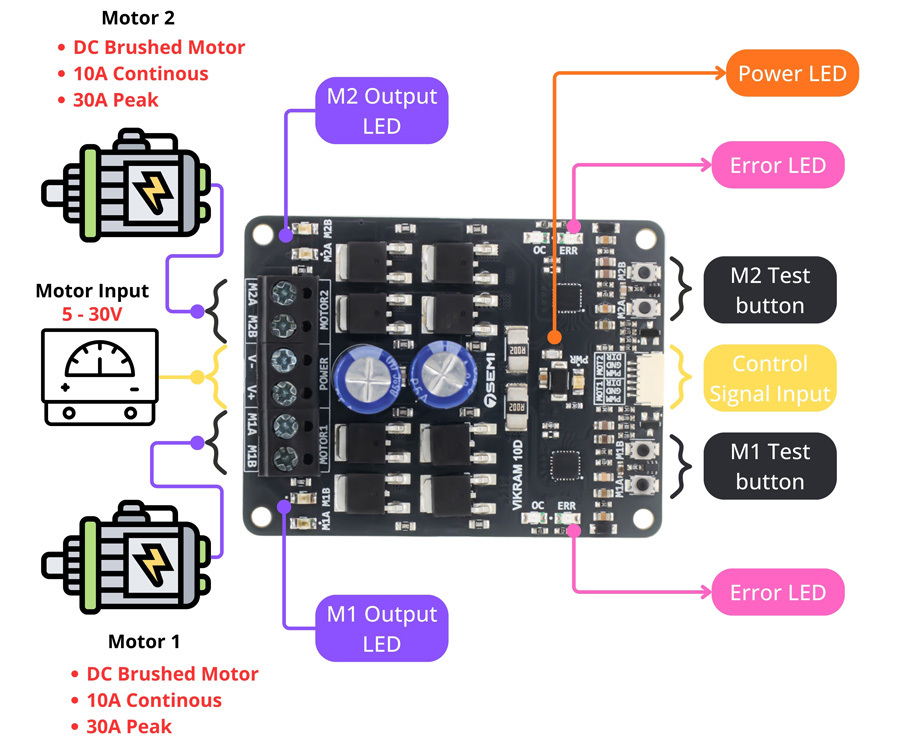

Pinouts
