2.7 inch E-Paper Display HAT for Raspberry Pi, Three-color, SPI interface, 264x176 Resolution - Waveshare

Waveshare

No reviews yet Write a Review
SKU:
061-13357
Manufacturer Part Number:
13357
₹1,811.30 inc. GST
₹1,535.00 ex. GST
2.7 inch E-Paper Display HAT for Raspberry Pi, Three-color, SPI interface
₹1,811.30 inc. GST
₹1,535.00 ex. GST

Description

The 2.7-inch E-Paper E-Ink Display HAT (B) is a powerful and versatile display module designed for Raspberry Pi enthusiasts. With a resolution of 264x176 pixels and a three-color display (Red/Black/White), this display delivers sharp and vivid visuals that are easy on the eyes.

One of the key features of this display is its ultra-low power consumption. Thanks to the E-Ink technology, the display only requires power for refreshing, making it ideal for battery-powered devices that need to operate for long periods of time. Additionally, the display is capable of retaining the last content displayed even when power is turned off, ensuring that your data is always safe.

This display module is incredibly easy to use, with a standard Raspberry Pi 40PIN GPIO extension header that supports Raspberry Pi series boards and Jetson Nano. It also comes equipped with an SPI interface for connecting with controller boards like Raspberry Pi, Arduino, and STM32.

Features
  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • Compatible with Raspberry Pi 2B/3B/Zero/Zero W
  • Onboard 4x Keys
  • SPI interface, for connecting with other controller boards like Raspberry/Arduino/Nucleo, etc.
  • Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
Package Content
  • 2.7inch e-Paper HAT (B) x1
  • RPi screws pack (2pcs) x2
  • PH2.0 20cm 8Pin x1

Resources

Advantages Of E-INK

The basis of the microcapsule electrophoretic technology used in e-paper displays is that when an electric field is applied, charged particles suspended in clear fluid move to the sides of the microcapsule, making it visible by reflecting ambient light, just like traditional printed paper. E-paper displays have approximately a 180 deg viewing angle and can clearly display images and messages in both artificial and natural light. As a result of its paper-like effect, it is typically utilised as an e-reader.

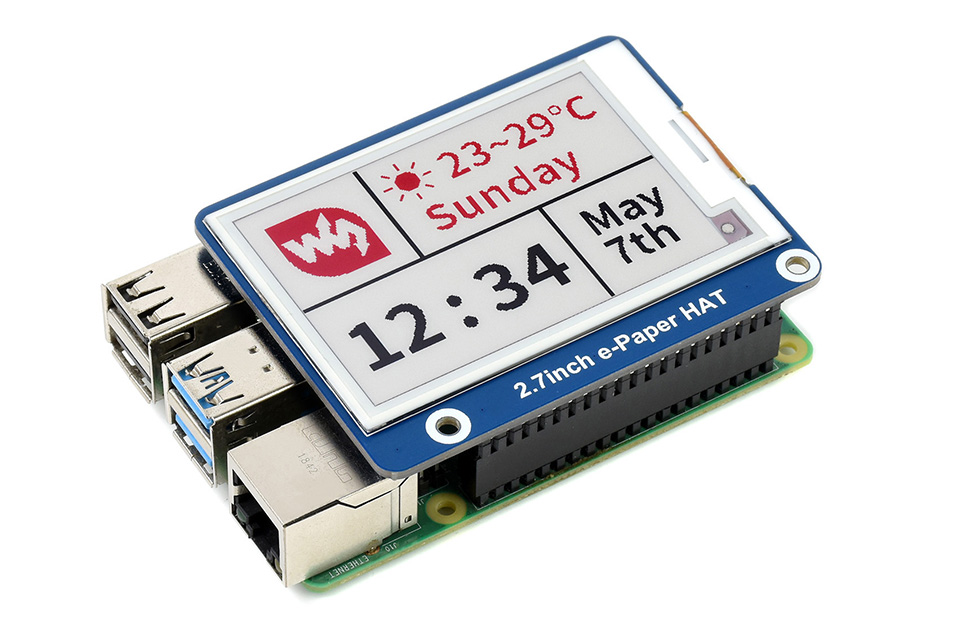

Standard Raspberry Pi 40PIN GPIO Header

Compatible With Raspberry Pi Series Boards, Jetson Nano

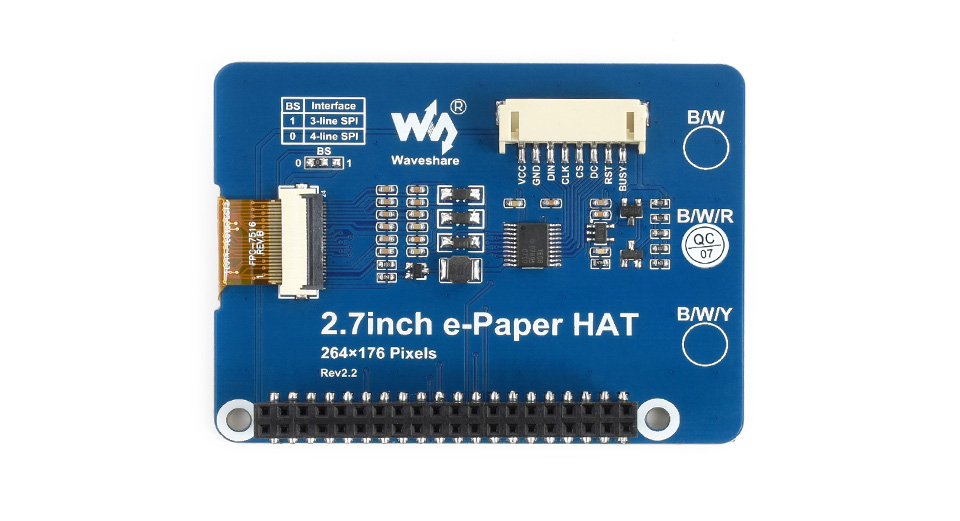

Onboard SPI Control Interface

For Use With Controller Boards Like Raspberry Pi/Jetson Nano/Arduino/STM32

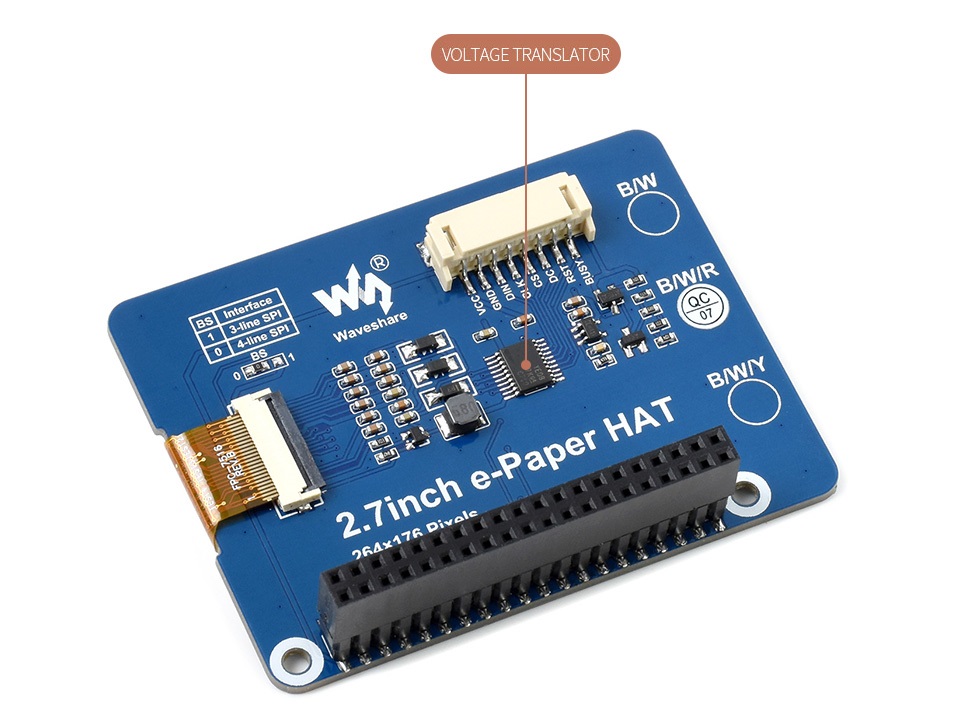

Onboard Voltage Translator

Compatible With 3.3V / 5V MCUs

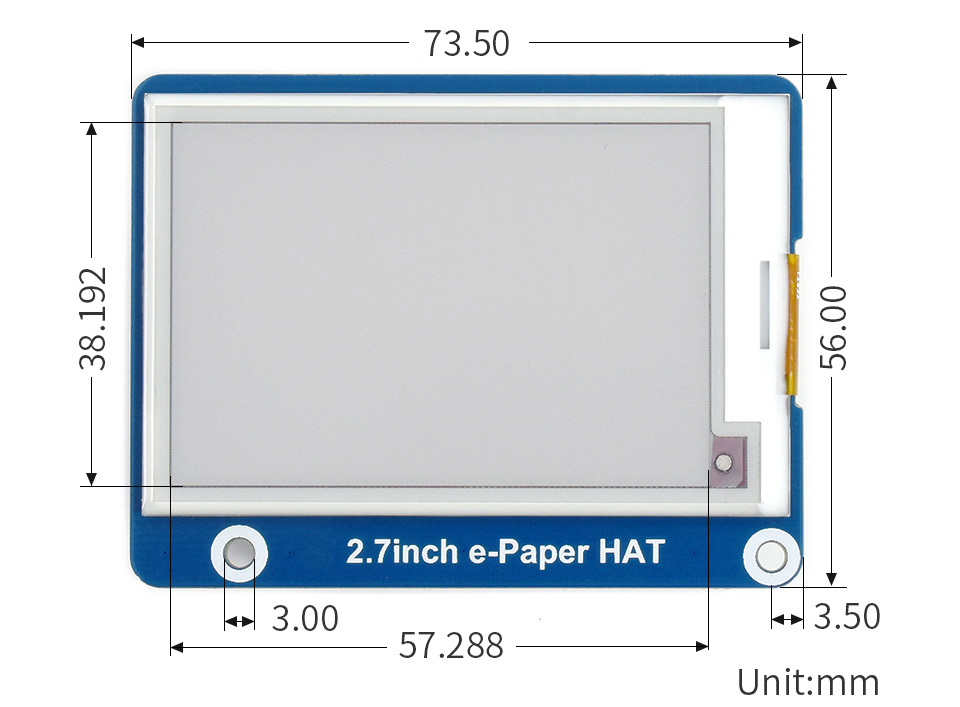

Dimensions



Technical Specifications

Brand:
Waveshare
Operating Voltage:
3.3V/5V
Interface:
3-wire SPI, 4-wire SPI
Outline Dimensions:
73.50 x 56mm
Viewing Area:
57.288 x 38.192mm
Dot Pitch:
0.217 x 0.217mm
Resolution:
264x176
Display Color:
red, black, white
Grey Scale:
2
Refresh Time:
15s
Refresh Power:
26.4mW (typ.)
Standby Power:
< 0.01uA (almost none)
Viewing Angle:
> 170 deg
Display Size:
2.7 inch
