DYS WU 2206 2400KV CW Brushless Motor for RC FPV Racing Drone and Multirotor - 523.2W Maximum Power, 3-4S LiPo, 16x16mm Mount, 31.15g Lightweight Construction
The DYS WU 2206 is a 2400KV clockwise-rotation brushless motor built on the 2206 stator platform, delivering a maximum continuous power output of 523.2W on 3-4S LiPo power systems for FPV racing drones and multirotor builds where the 2206 stator geometry provides a power-to-weight ratio suited to high-speed 5-inch propeller racing and aggressive freestyle flight on lighter-weight frames. The 2206 stator designation indicates a 22mm stator diameter and 6mm stator height, an identical diameter to the 2207 format but with 1mm less stator height, resulting in a motor that is marginally lighter and has a slightly lower torque ceiling than a 2207 at equivalent KV while delivering comparable peak power output in the 3S and 4S operating range where the 523.2W maximum continuous power specification positions it among the higher-output motors in the compact FPV racing motor class. At 31.15 grams, the WU 2206 keeps individual motor weight in the lightweight tier for the 2206-class, contributing to a lower total 4-motor set weight than heavier 2207 and 2306 alternatives while the 523.2W maximum continuous power output sustains the high thrust levels required for competitive FPV racing performance.
The 2400KV rating places the WU 2206 in the higher-KV band for 3S and 4S FPV racing motor pairings, delivering the elevated RPM per volt characteristic preferred in racing builds where snap throttle response, fast RPM changes, and high top-end speed are prioritised over the mid-throttle efficiency and maximum torque per ampere of lower-KV alternatives. On 3S LiPo, the 2400KV provides a practical no-load RPM and thrust combination for smaller 4-inch propeller builds or lighter 5-inch builds where reduced battery voltage is used to control all-up weight and cost. On 4S LiPo, the 2400KV delivers the high-RPM racing power characteristic suited to 5-inch propeller FPV racing builds where the pilot prioritises high motor response speed and top-end velocity over hover efficiency. The 16 x 16mm mounting bracket provides compatibility with the standard motor mount spacing used across a broad range of mini and standard FPV racing and freestyle frames, allowing the WU 2206 to be fitted to compatible frames without custom adapter plates or non-standard hardware.
Key Features
- 2206 Stator Format: 22mm stator diameter and 6mm stator height for compact, lightweight FPV racing motor dimensions with competitive power output in the 3S and 4S class
- 2400KV Rating: Higher-KV 3S and 4S-suited specification for fast RPM response, high top-end speed, and aggressive throttle characteristics in FPV racing and freestyle builds
- Maximum Continuous Power: 523.2W maximum continuous power output for competitive thrust performance in high-speed FPV racing drone and multirotor applications
- 3-4S LiPo Compatible: 3S and 4S LiPo voltage range for flexible power system configuration across lighter 3S racing builds and higher-power 4S FPV racing setups
- Lightweight at 31.15g: Low individual motor weight for minimal 4-motor set weight impact in weight-optimised FPV racing and freestyle quadrotor builds
- 16 x 16mm Mounting Bracket: Standard 16 x 16mm motor mount spacing for broad compatibility across mini and standard FPV racing and freestyle frame motor mount positions
- CW Rotation: Clockwise shaft rotation for correct motor position assignment in standard X-frame quadcopter motor layout without ESC phase reversal

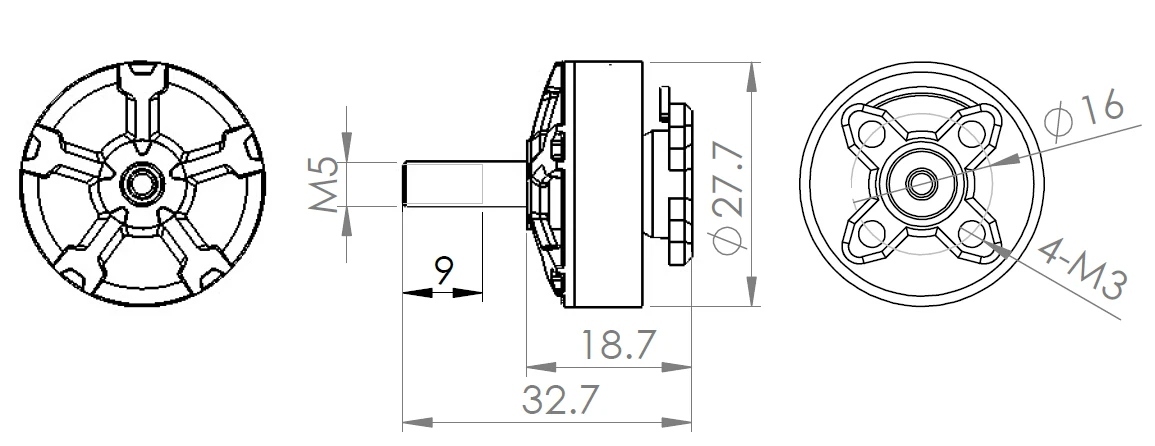

- Compact Motor Diameter: 27.7mm overall motor diameter for tight motor bay clearance in compact FPV racing and freestyle frame designs
- DYS WU Series: DYS WU motor series construction for reliable performance and durable motor body across sustained FPV racing and freestyle flight sessions
- High-Speed Flight Optimised: Motor KV, stator geometry, and power output specification collectively optimised for the high-speed, high-throttle demands of competitive FPV racing.
Applications
- 5-inch FPV racing drone builds requiring a 2206 2400KV CW motor on 4S LiPo for high-RPM racing performance with 31.15g lightweight motor weight in standard 16 x 16mm mount frames
- 3S LiPo FPV racing and freestyle builds requiring a 2400KV 2206 motor for competitive RPM performance on reduced voltage power systems on 4-inch to 5-inch propellers
- Lightweight FPV racing quadrotor builds where 2206 motor weight advantage over 2207 and 2306 alternatives directly reduces 4-motor set weight and improves all-up weight budget
- Standard 16 x 16mm motor mount frame FPV builds requiring a CW-rotation 2206 2400KV motor without custom adapter plates or non-standard mount hardware
- High-power FPV racing and multirotor builds requiring 523.2W maximum continuous motor power output for sustained competitive thrust at full-throttle racing speeds
- DYS motor ecosystem FPV builds requiring a matched 2206 stator CW motor with 3-4S LiPo compatibility alongside other DYS motor and ESC products.
Package Includes:
1 x Wu 2206 2400KV Brushless Motor
1 x motor nut.
1 x Set of Screws
