Portable Battery Expansion Chassis With Grove Connectivity For Wio Terminal Development Projects
The Wio Terminal Chassis with 650mAh Battery is a compact expansion enclosure designed to enhance the portability and functionality of the Wio Terminal development board. Equipped with a built-in rechargeable lithium-polymer battery, this chassis provides reliable external power for portable IoT, embedded-system, and edge-computing applications. The integrated ABS enclosure offers added protection and improved aesthetics while maintaining easy access to the WiO Terminal interfaces and expansion capabilities.
This battery chassis also expands connectivity through multiple Grove ports, enabling simplified integration with Grove sensors, actuators, and communication modules without soldering or jumper wiring. With USB Type-C charging support, onboard battery fuel gauge, overcurrent protection, and hidden magnetic mounting support, the chassis is well-suited for portable monitoring systems, smart-home devices, educational projects, industrial prototyping, and rapid IoT development.
Key Features
- Built-In 650mAh LiPo Battery: Rechargeable lithium-polymer battery for portable Wio Terminal operation.
- USB Type-C Charging: Convenient Type-C charging interface for battery charging and power management.
- Battery Status Indicators: Charging and discharging LED indicators for battery monitoring.
- Battery Power Switch: Dedicated ON OFF button for efficient power control.
- Integrated Fuel Gauge: Built-in BQ27441-G1A fuel gauge for accurate battery status monitoring.
- Multiple Grove Ports: Includes 4 Grove Analog Digital ports, 1 Grove I2C port, and 1 Grove UART port.
- Overcurrent Protection: Integrated protection circuitry improves operational safety and reliability.
- Hiccup Protection Mode: Supports automatic fault recovery during abnormal current conditions.
- Magnetic Enclosure Design: Hidden magnets inside the chassis allow mounting on whiteboards and metal surfaces.
- Raspberry Pi Compatible GPIO: Rear 40-pin GPIO compatibility for additional expansion modules and accessories.
- ABS Protective Enclosure: Durable enclosure provides protection and compact portability.
Applications
- Portable IoT devices
- Wio Terminal expansion projects
- Smart-home monitoring systems
- Educational electronics platforms
- Embedded-system prototyping
- Sensor data collection systems
- Portable automation controllers
- Edge-computing applications
- Wireless monitoring devices
- DIY electronics development

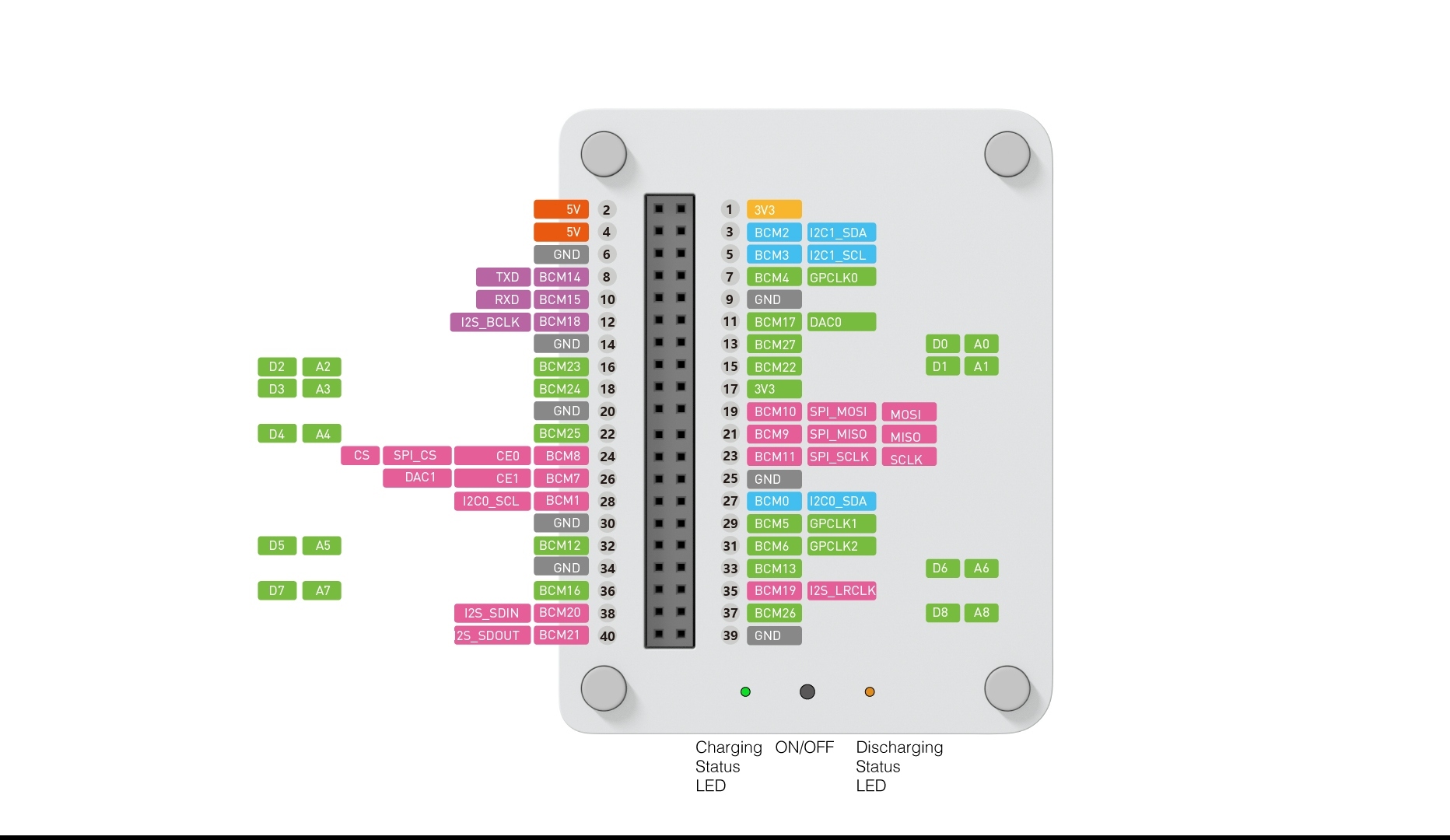

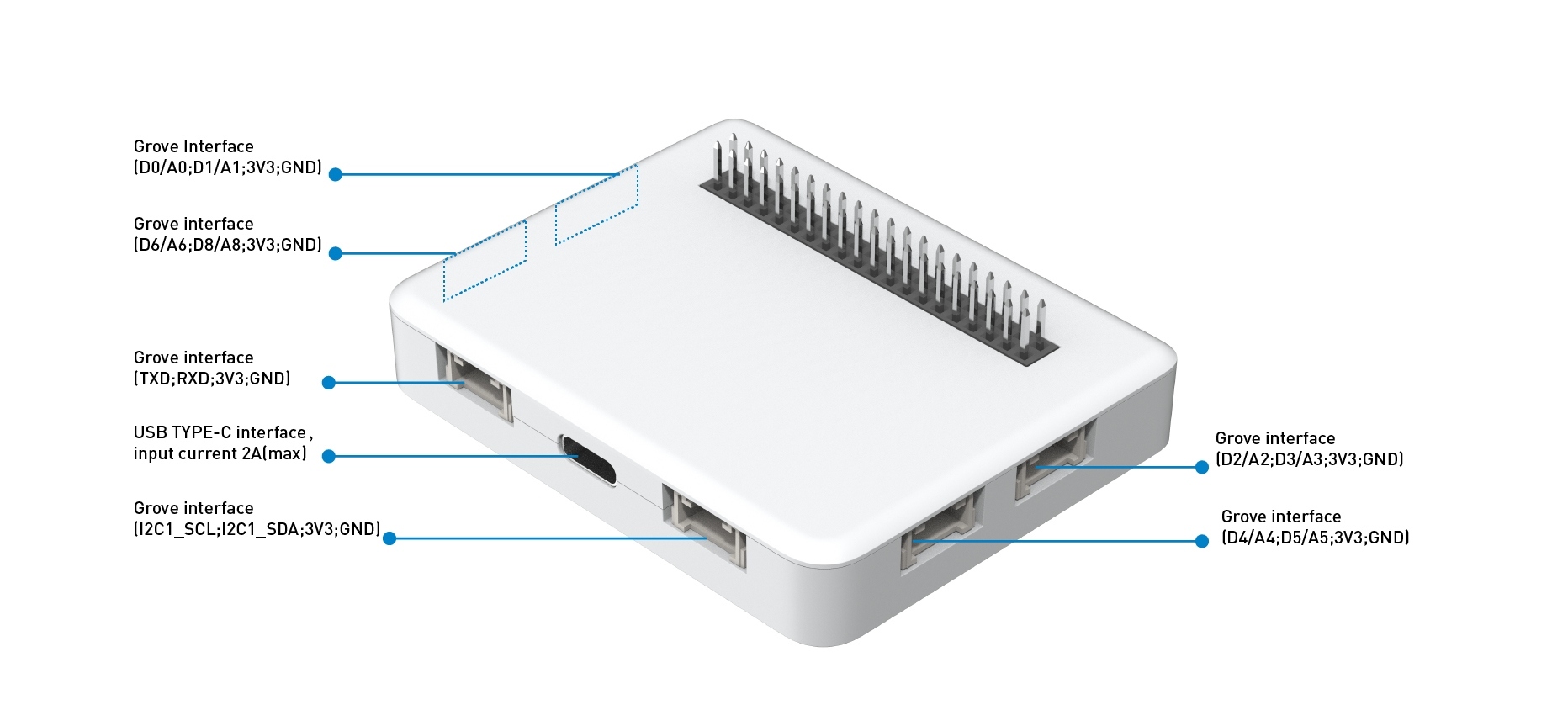

Pinout Diagram
Package List:
- Wio Terminal Battery Chassisx1
