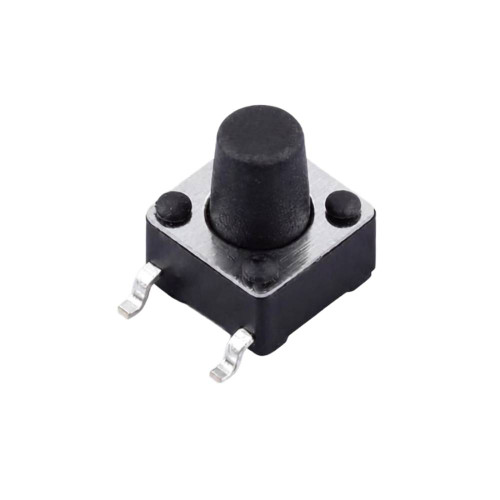

Tactile Switch 4 pin SPST Round Button 6.35x6.25x3.5mm - TS6635BA

SHOU HAN

No reviews yet Write a Review
SKU:
336-TS6635BA
Manufacturer Part Number:
TS6635BA
Full Reel Quantity:
1500 (to receive in standard manufacturer packaging, please order in multiples of this quantity)
₹9.68 inc. GST
₹8.20 ex. GST
Buy 10 - 99
15% off
Buy 100 or above
30% off
₹9.68 inc. GST
₹8.20 ex. GST
8 people looking at this.

Description

This 4 Pin SPST Round Button Tactile Switch with Lamp is ideal for various applications. With a switch width of 6.25mm, switch height of 3.5mm, and switch length of 6.35mm, along with a round button actuator style, this switch is designed for brick nogging mounting. The circuit configuration is SPST, and the switch includes a lamp. It has a contact current rating of 50mA and a voltage rating of 12V DC.

Resources



Technical Specifications

Brand:
SHOU HAN
Mount:
Surface Mount
Number of Pins:
4
Current Rating:
50 mA
Orientation:
Straight
Throw Configuration:
SPST
Voltage Rating:
12 V
Size (LxWxH):
6.35x6.25x3.5 mm
Max Operating Temperature:
70 C
Min Operating Temperature:
-20 C
Operating Force:
250 gf
Action Type:
Momentary
Contact Resistance:
< 100 mOhm
Insulation Resistance:
> 50 mOhm (100V DC)
Switching Life:
100000 Cycles
Full Reel Quantity:
1500
