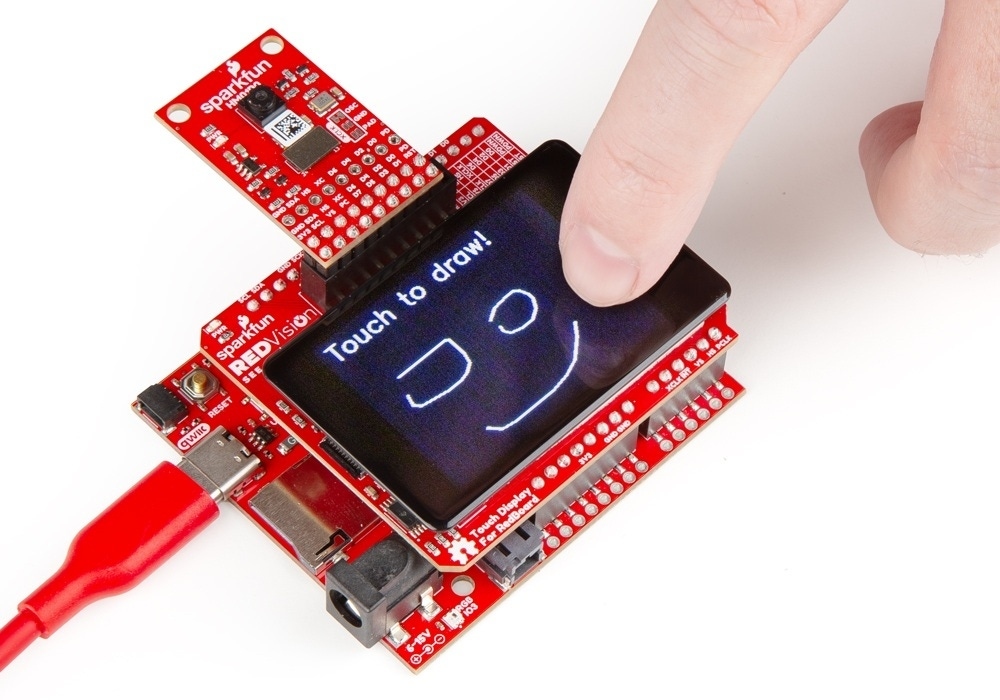

SparkFun Red Vision Touch Display Shield with 2.0 Inch Capacitive LCD for RedBoard IoT
The SparkFun Red Vision Touch Display for RedBoard is an integrated visual and touch interface designed to add interactive display and machine vision support to the RP2350 RedBoard IoT platform. It features a bright 2.0 inch capacitive touch LCD with a 320x240 pixel resolution, delivering clear visuals and responsive touch control for connected and vision-based IoT applications. Designed in the standard R3 shield footprint, the display plugs directly onto the board using male headers, enabling a clean, cable-free assembly. While the hardware is electrically compatible with other 3.3 V logic RedBoards and R3-style Arduino boards with adequate processing capability, the dedicated Red Vision code package is currently supported only on the RP2350.
This touch display shield also includes a dedicated camera expansion socket and an onboard I/O expander, enabling advanced use cases such as image capture, edge AI experiments, smart monitoring, and interactive user interfaces. Visual system feedback is provided through an onboard red power LED, making it suitable for rapid prototyping, education, and embedded product development where compact integration and ease of use are essential.
Key Features:
- Touch Display: 2.0 inch capacitive touch LCD for interactive user interfaces
- Display Resolution: 320x240 pixels for clear graphics and text
- Form Factor: Standard R3 shield footprint for direct RedBoard mounting
- Board Compatibility: Designed for RP2350 RedBoard IoT and other 3.3 V logic R3 boards
- Camera Expansion: 2x10 socket for connecting a compatible camera board
- I/O Expansion: Integrated I/O expander for additional peripheral control
- Connectivity: Male R3 headers including 2x8-pin, 1x10-pin, and 1x6-pin headers
- Status Indication: Onboard red power LED for quick visual feedback.
