Industrial RS485 Electrical Conductivity Sensor With TDS Salinity And Temperature Monitoring

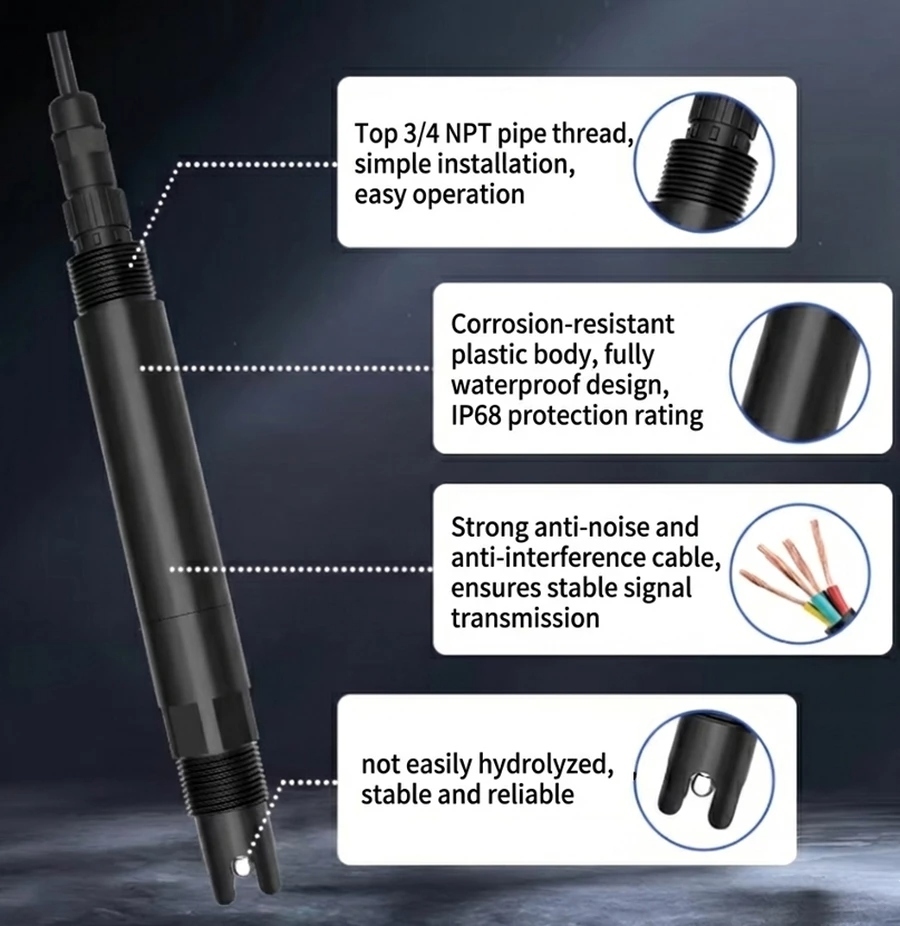

The Industrial RS485 Water Electrical Conductivity Sensor is a high-precision water quality monitoring solution designed for continuous measurement of electrical conductivity in industrial, environmental, agricultural, and water treatment applications. Featuring an integrated probe and housing design, the sensor provides reliable conductivity measurements while simplifying installation and deployment. With an electrode constant of K=1, a measurement range of 1 to 2000μS/cm, a resolution of 0.1μS/cm, and an accuracy of ±1%FS, it delivers dependable real-time water quality data for professional monitoring systems.
Beyond conductivity measurement, the sensor incorporates intelligent conversion algorithms that simultaneously output salinity, TDS, and temperature values, providing comprehensive 4-in-1 water quality analysis. Automatic Temperature Compensation (ATC) ensures measurement accuracy across varying environmental conditions, while the RS485 ModBus-RTU communication interface enables seamless integration with PLCs, industrial controllers, IoT gateways, SCADA systems, Arduino platforms, and remote monitoring networks. Factory calibration and the included 1413μS/cm calibration solution allow immediate deployment and simplified maintenance.
Key Features
- 4-in-1 Multi-Parameter Measurement: Simultaneously outputs Conductivity, Salinity, TDS, and Temperature.
- Electrical Conductivity Measurement: Range from 1 to 2000μS/cm.
- High Resolution: 0.1μS/cm measurement resolution.
- Excellent Accuracy: ±1%FS measurement accuracy.
- Salinity Measurement Output: Supports salinity monitoring up to 1000ppm.
- TDS Measurement Output: Supports TDS monitoring up to 1100ppm.
- Automatic Temperature Compensation: Ensures accurate readings from -20°C to +60°C.
- Integrated Temperature Sensor: Real-time temperature monitoring.
- RS485 ModBus-RTU Communication: Industrial-standard connectivity.
- Industrial IP68 Waterproof Design: Suitable for continuous submersion.
- Wide Power Supply Range: Operates from 10V to 30V DC.
- Factory Calibrated: Ready for immediate deployment.
- Includes Calibration Solution: Supplied with 1413μS/cm calibration solution.
- 5-Meter Integrated Cable: Simplifies installation in field environments.
Applications
- Aquaculture water quality monitoring
- Hydroponics nutrient management
- Smart agriculture systems
- Water treatment facilities
- Drinking water monitoring
- Environmental water analysis
- Industrial process water monitoring
- Wastewater treatment systems
- Reservoir and pond monitoring
- Smart water management platforms
- Remote IoT monitoring systems
- Educational laboratories

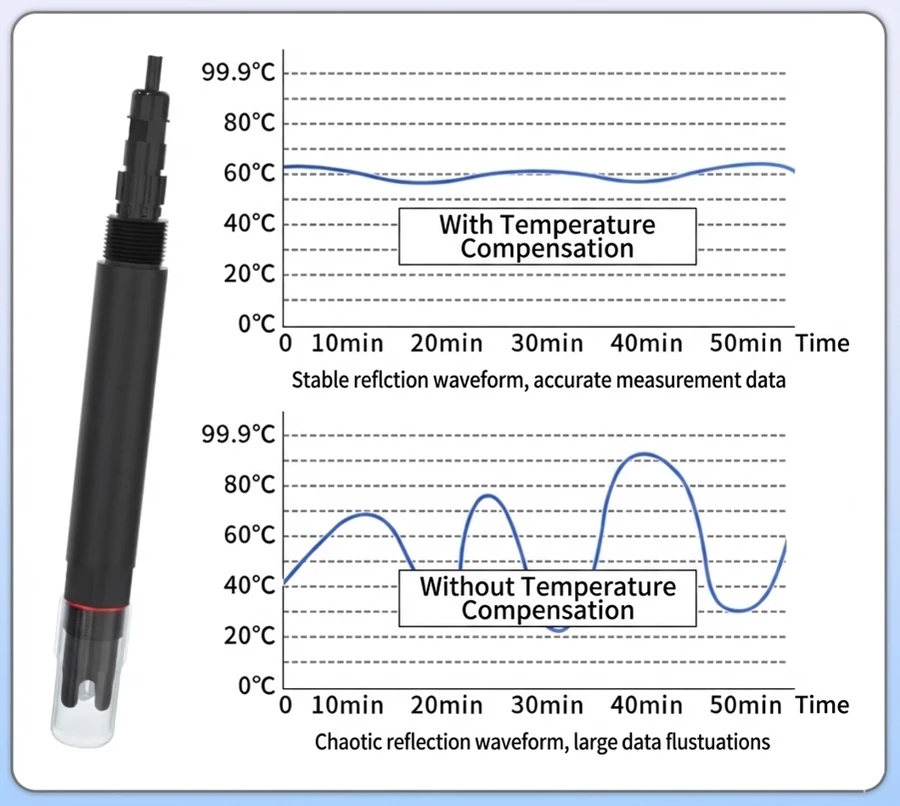

The electrical conductivity sensor features an RS485 communication interface and supports the ModBus-RTU protocol. Tutorials are supplied for connecting the sensor to Arduino development boards and DFRobot LoRaWAN, which allows for easy deployment of a test environment and real-time data monitoring. A built-in temperature sensor automatically compensates for temperature changes, resulting in precise and dependable data output under different environmental situations.
The electrical conductivity sensor is rigorously calibrated before leaving the factory and is ready for immediate use without additional calibration. It also has a conductivity calibration solution, which allows users to immediately adjust measurement accuracy after extended usage via register settings. With an overall waterproof certification of IP68, it may be submerged in water for long periods of time, making it ideal for aquaculture, tap water monitoring, drinking water treatment, hydroponics, and agricultural irrigation.
Package List:
- RS485 Water Quality Electrical Conductivity Sensor (K=1) x1
- 5m sensor cable x1
- 1413μS/cm conductivity calibration solution 100ml x1
- Black protective mesh x1
- Cable ties x2
