Raspberry Pi Zero 2W To 3B Expansion Board (Need Pi Zero 2W to Function)

Waveshare

No reviews yet Write a Review
SKU:
061-22383
Manufacturer Part Number:
22383
₹1,820.74 inc. GST
₹1,543.00 ex. GST
Raspberry Pi Zero 2W To 3B Adapter
The Raspberry Pi Zero 2W to 3B Expansion Board transforms Pi Zero 2W into Pi 3B, unlocking its full potential. Compatibility with various Pi3B accessories enhances project possibilities, making it a valuable tool for versatile and powerful creations. View full description
₹1,820.74 inc. GST
₹1,543.00 ex. GST

Description

The Zero 2W Development Board is equipped with a pogo pin connection, making it easy to attach and detach. It is specifically designed to be compatible with the interfaces of Raspberry Pi 3B and 3B+ boards, ensuring seamless integration.This development board features an onboard headphone jack, which is extended from the USB interface, allowing for convenient audio output. Additionally, it includes an additional speaker header for expanded audio capabilities.With 4-ch USB ports, this board provides flexible connectivity options and is fully compatible with USB 2.0 and 1.1 transmission standards, ensuring reliable data transfer.The onboard RTL8152B Ethernet chip enables the board to support a 1-ch RJ45 Ethernet port with adaptive 10/100 M speed. This allows for reliable and efficient network connectivity.

Please note that the Zero 2W Development Board is not compatible with the first generation Zero, and is specifically designed for use with Raspberry Pi 3B and 3B+ boards.

Features
  • Using pogo pin connection, the Zero 2W can be easily attached
  • Easily compatible with the interfaces of Raspberry Pi 3B / 3B+ boards
  • Onboard headphone jack(extended from USB) and an additional speaker header
  • Onboard 4-ch USB ports, compatible with USB 2.0 / 1.1 transmission
  • Onboard RTL8152B Ethernet chip, support 1-ch RJ45 Ethernet port, 10 / 100 M adaptive
  • Not compatible with the first generation Zero
Package content
Weight: 0.043 kg
  1. Zero-to-Pi3-Adapter (B) x1
  2. HDMI Adapter x1
  3. Screws pack x1

Resources

Raspberry Pi Zero 2W To 3B Adapter

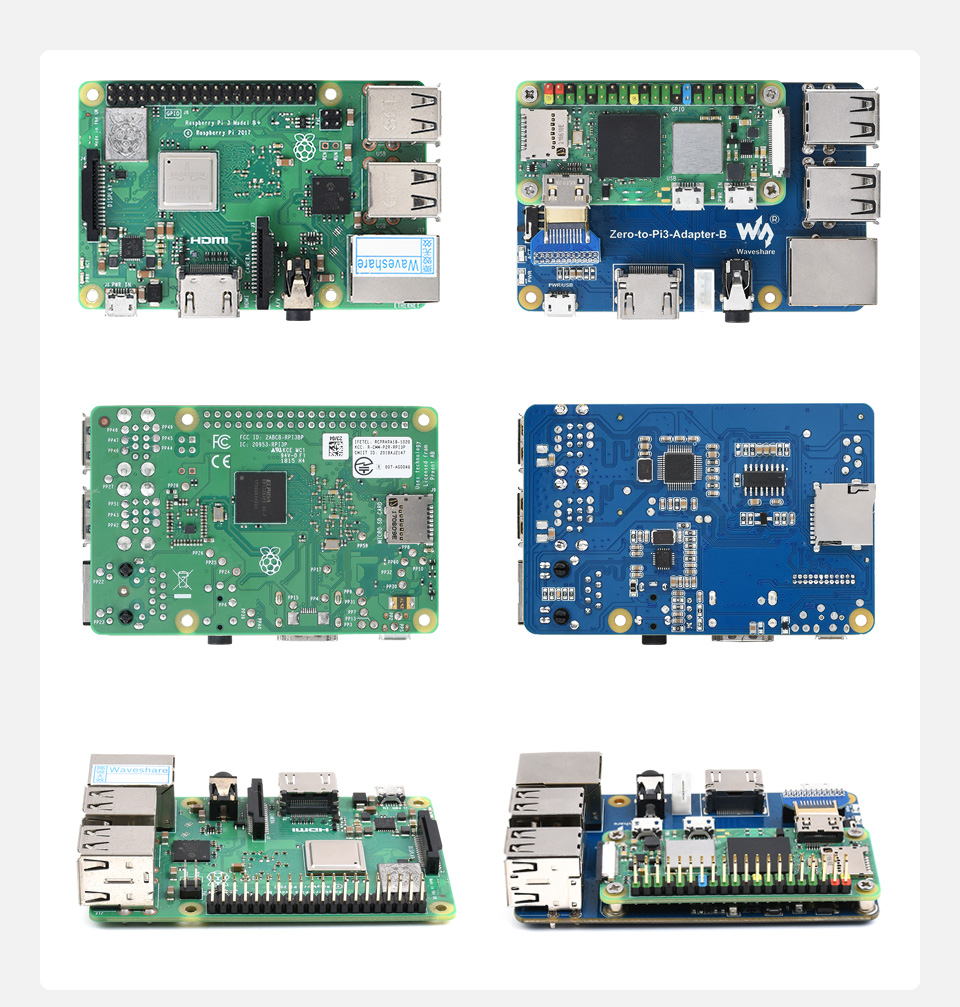

Alternative Solution for Raspberry Pi 3 Model B/B+

Based On Raspberry Pi 2W

Use Pi Zero 2W To Reproduce The Original Appearance Of The 3B Series As Much As Possible
More Cost-Effective Choice

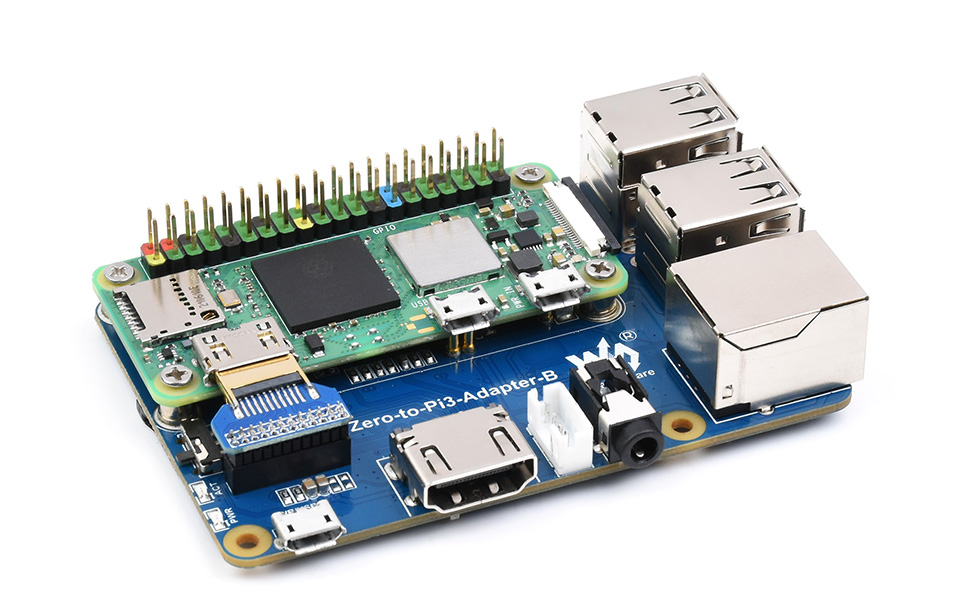

Easy To Install

Using Pogo Pin Connection, The Zero 2W Can Be Easily Attached

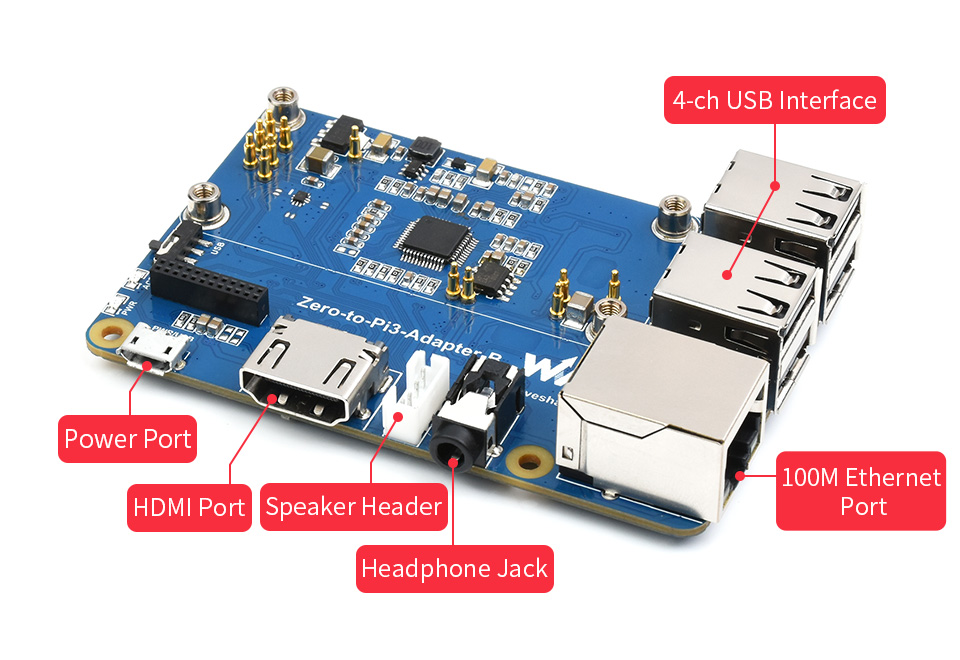

Interface Introduction

Onboard 4-Ch USB Interface, 100M Ethernet Port And HDMI Port
Note: The Ethernet Port Does Not Support PoE Function

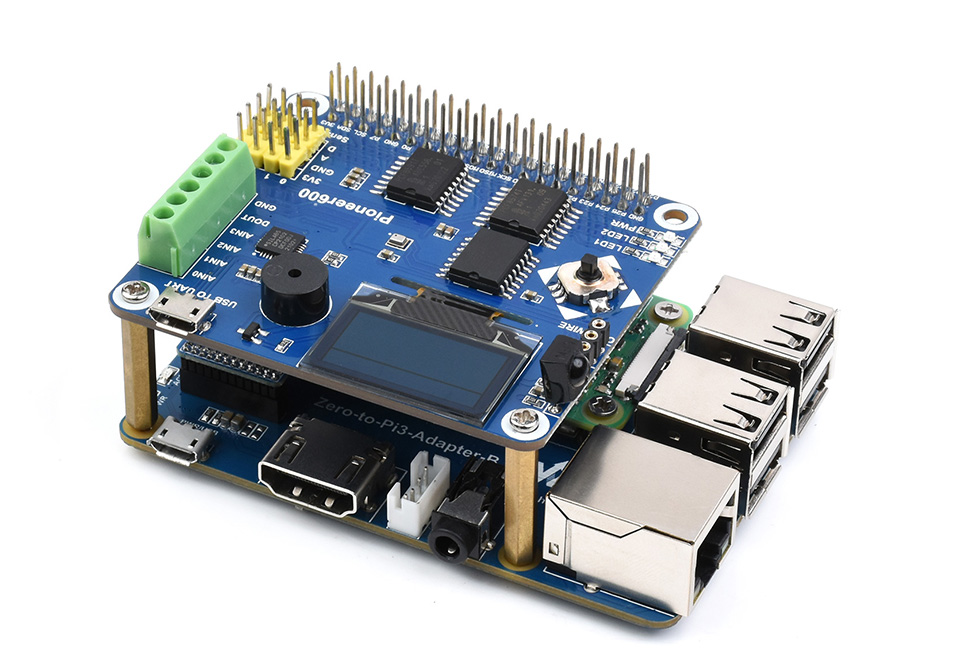

Compatible With Pi 3B Series HATs

Easy Access To Pi 3B Series HATs Or Other Development Projects
Note: The Height Of The GPIO Is Higher Than The Pi 3B / 3B+

Onboard Audio Interface

Support 3.5mm Headphone Jack And 4PIN Speaker Header
When Headphone Is Plugged In, The Speaker Will Be Automatically Disabled.

Outline Dimensions



Technical Specifications

Brand:
Waveshare
