M5Stack RS485T T-Shaped Connector

Resources:
Documents

T-Shaped RS485 Bus Expansion Connector with 4-Pin 3.96 mm Terminals and Termination Control

The M5Stack A071 485T is a compact T-shaped connector designed to simplify RS485 bus expansion in industrial and embedded communication systems. It allows a single RS485 connection to branch into two additional directions, making it suitable for point-to-point and point-to-multipoint wiring without requiring a separate active communication hub.

The connector uses 4-pin 3.96 mm terminal blocks compatible with several M5Stack RS485 products, including PLC, PLC-M12, Base26, and Hat RS485. A red onboard power LED provides visual power-status indication, while an internal DIP switch allows the termination resistor to be manually enabled or disabled according to the RS485 network topology. Its passive design requires no firmware or configuration.

Key Features

• RS485 Bus Expansion: Expands one RS485 bus connection into two branches
• T-Shaped Design: Simplifies point-to-point and point-to-multipoint network wiring
• Terminal Interface: Uses 4-pin 3.96 mm terminal blocks
• Termination Control: Internal DIP switch for enabling or disabling the termination resistor
• Power Indicator: Integrated red LED indicates power status
• Passive Operation: Requires no MCU, firmware, or software configuration
• M5Stack Compatibility: Suitable for compatible PLC, PLC-M12, Base26, Hat RS485, and other devices using the same terminal format
• Compact Form Factor: 56.0x26.0x17.0 mm

Applications

• RS485 bus branching
• Industrial automation networks
• PLC communication systems
• Modbus RTU wiring
• Point-to-multipoint serial networks
• Machine-to-machine communication
• Building automation
• Distributed sensor networks
• Industrial control panels
• Embedded RS485 systems
• Field-device interconnection
• RS485 prototyping and testing

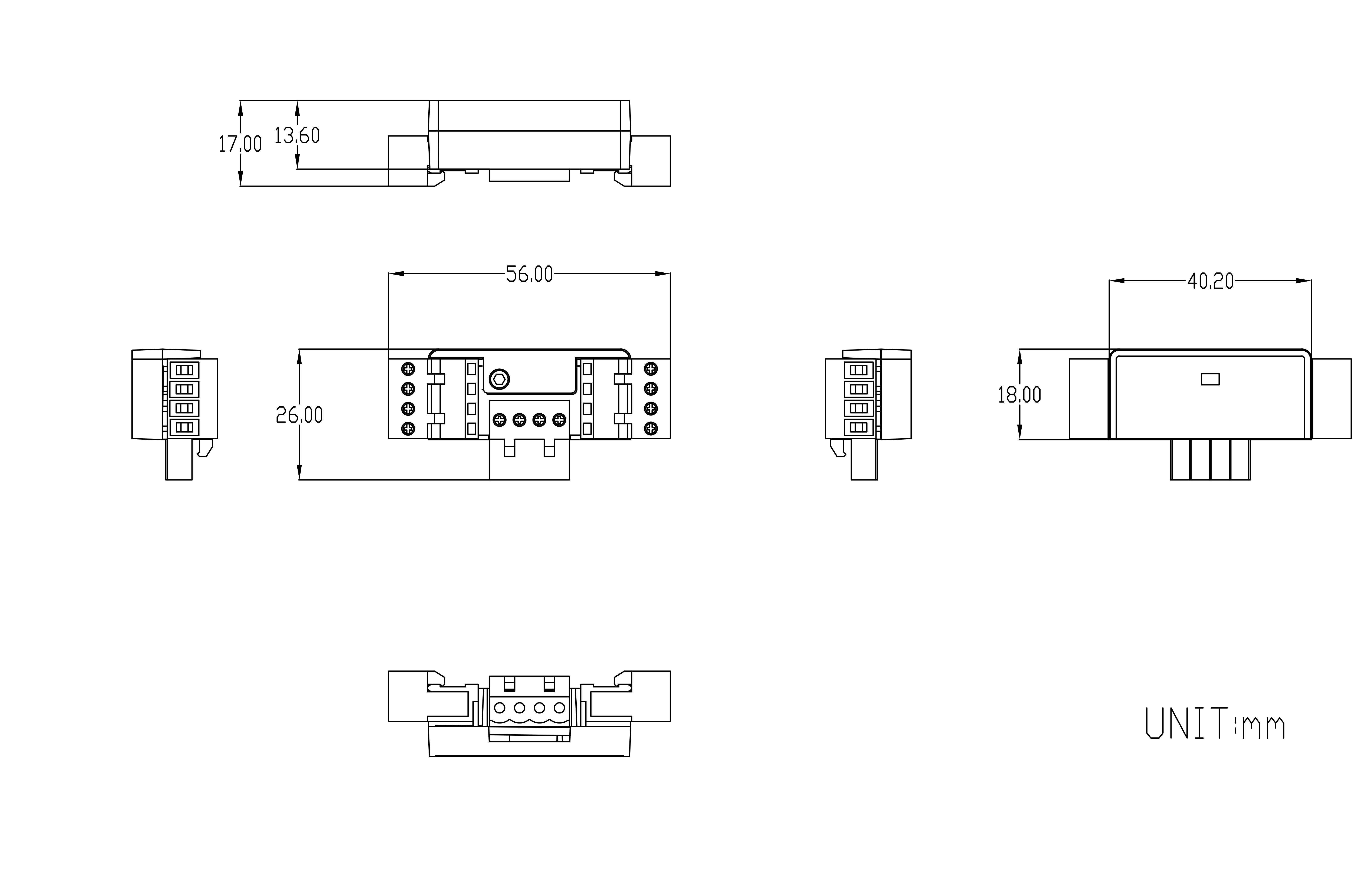

Model Size

Package Includes:

• 1x485T
