Integrated M0601 Direct-Drive Hub Motor with FOC Servo and Encoder for AGV, AMR, and Robotics Applications
The M0601 Direct-Drive Hub Motor is a highly integrated motion solution designed for advanced robotics, AGVs, and AMRs requiring precise, efficient, and compact drive systems. By combining a brushless DC motor, integrated FOC (Field-Oriented Control) servo driver, and high-resolution encoder within a 102mm hub structure, this motor eliminates the need for external controllers and complex wiring. The direct-drive architecture ensures smooth torque delivery, reduced mechanical losses, and improved system reliability, making it ideal for autonomous navigation and precision motion control.
Optimised for left and right wheel configurations, the M0601 simplifies system design and enhances mobility platform efficiency. Its compact and robust construction supports seamless integration into robotic chassis, while the integrated servo control enables accurate speed and position feedback. Suitable for industrial automation, service robots, and logistics platforms, this hub motor delivers high performance, reduced maintenance, and streamlined deployment for next-generation intelligent mobility systems.
Key Features
- Integrated design combining motor, driver, and encoder for "plug-and-play" deployment
- Supports RS485 communication for real-time monitoring of position, speed, and current
- Triple-loop closed control (Torque, Speed, Position) via advanced FOC algorithm
- High-precision 4096-line built-in encoder for accurate motion feedback
- Robust performance with 2.0 N·m stall torque and IP54 protection rating
- Ultra-quiet operation with noise levels maintained below 50 dB
- Comprehensive safety features including over-current, over-temperature, and stall protection
Compact All-in-One Integration
The M0601 transforms robot chassis design by combining the motor, servo driver, and encoder in a single 102mm diameter device. This "plug-and-play" architecture eliminates the need for external driver installation and extensive wiring, resulting in significant internal space savings and reduced mechanical assembly time.
Precision Motion Control
Driven by powerful FOC (Field Oriented Control) algorithms and a 4096-line high-precision encoder, the motor provides triple-loop closed control over torque, speed and position. This arrangement allows smooth low-speed operation while also providing the high-resolution input needed for precise navigation and placement in autonomous systems.

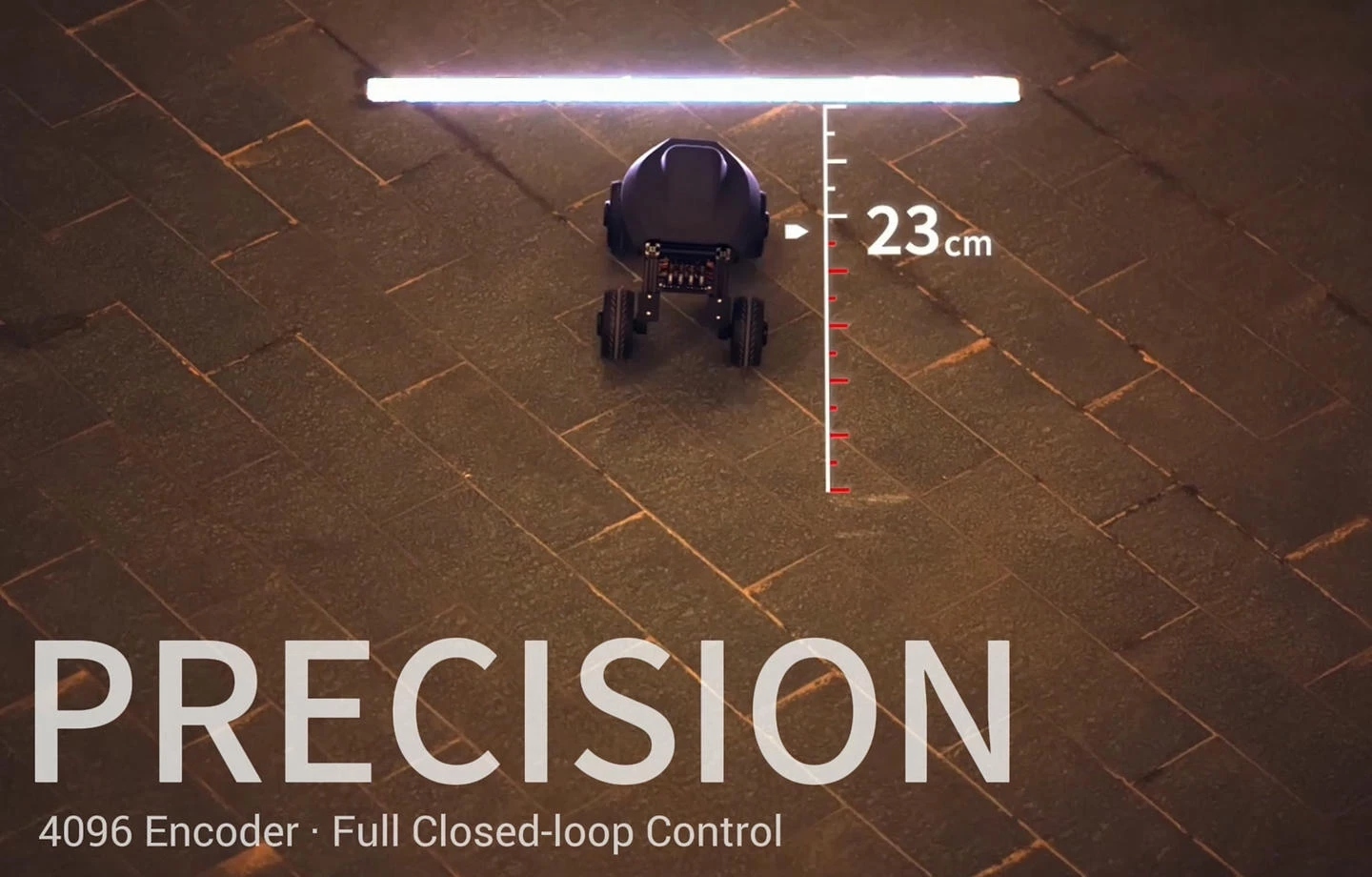

Figure: Precision Control of M0601 Direct-Drive Hub Motor

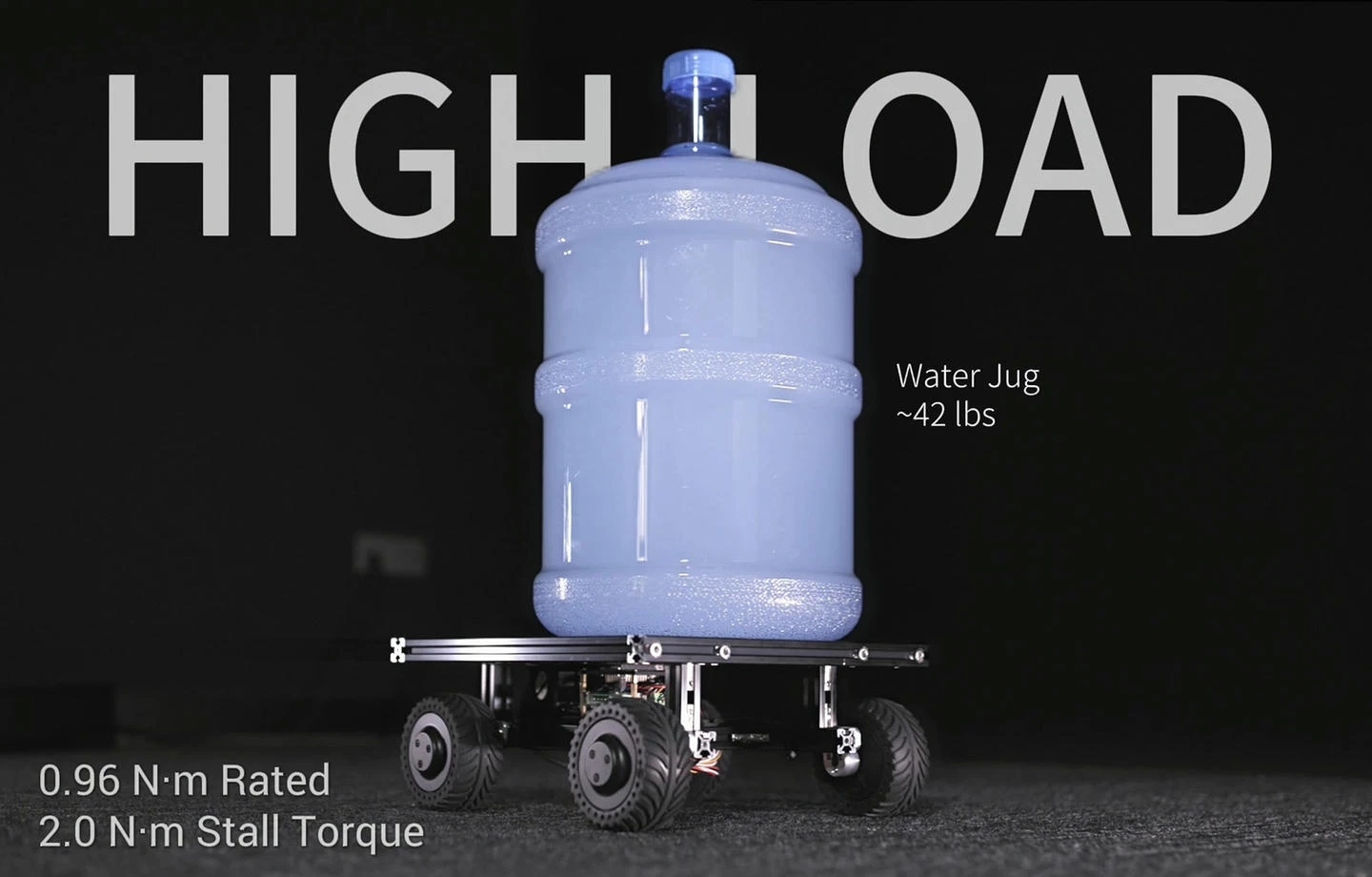

High Torque Density & Dynamic Performance
Despite its diminutive size, the motor has a rated torque of 0.96 N·m and a strong stall torque of 2.0 N·m. This power output allows for agile start-stop maneuvers and delivers enough force to overcome obstacles, ensuring dependable mobility in a variety of load scenarios.

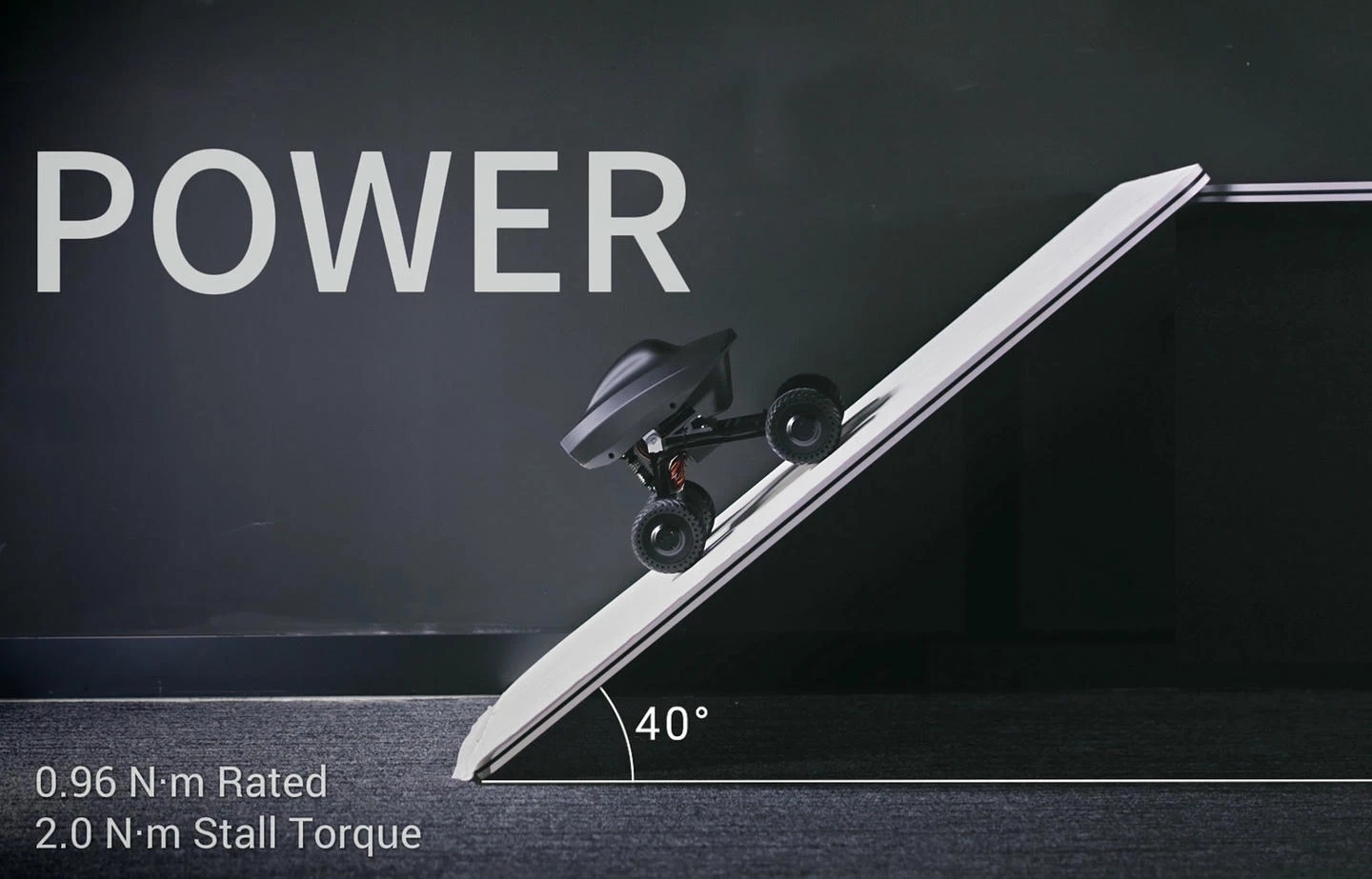

Figure: High Torque Density & Dynamic Performance of M0601 Direct-Drive Hub Motor
Industrial-Grade Reliability & Silence
Engineered for noise-sensitive and demanding situations, the motor runs at noise levels below 50 decibels while maintaining an IP54 dust and moisture protection rating. The system's durability is further enhanced with an RS485 interface, which allows for real-time monitoring of current and temperature and immediately triggers protection measures against over-current or stall occurrences.

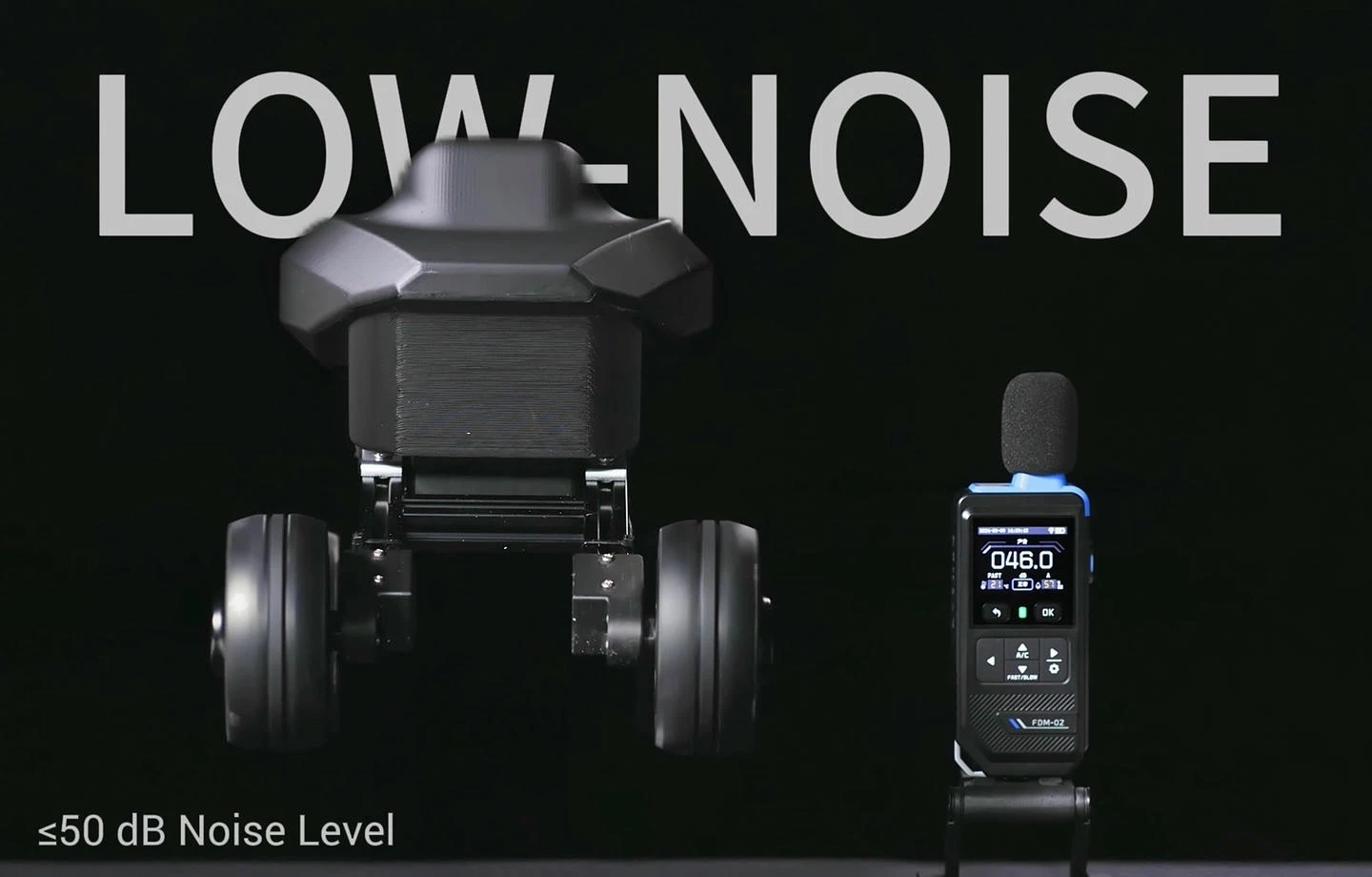

Figure: Low-noise of M0601 Direct-Drive Hub Motor

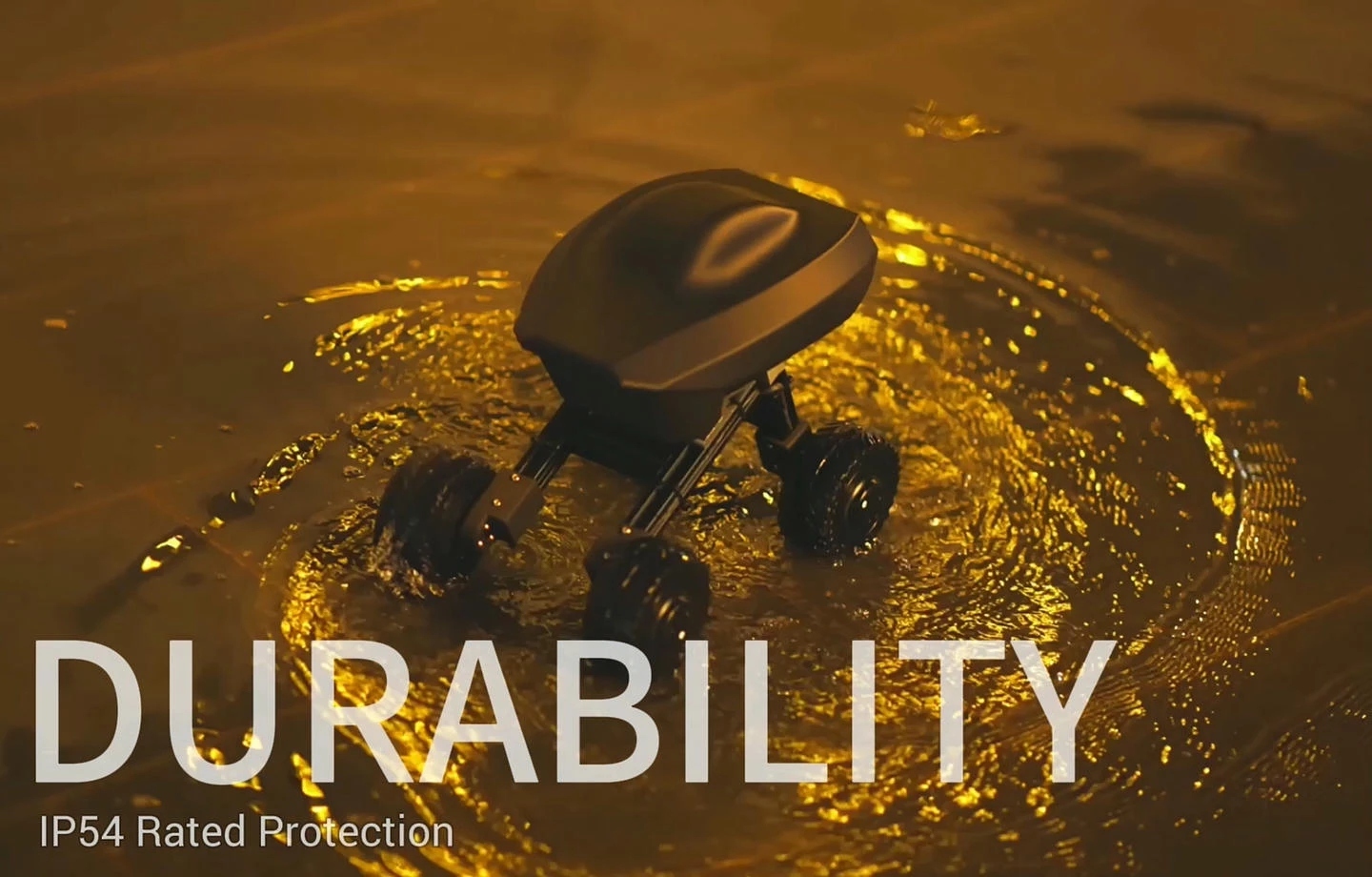

Figure: Duarbility of M0601 Direct-Drive Hub Motor

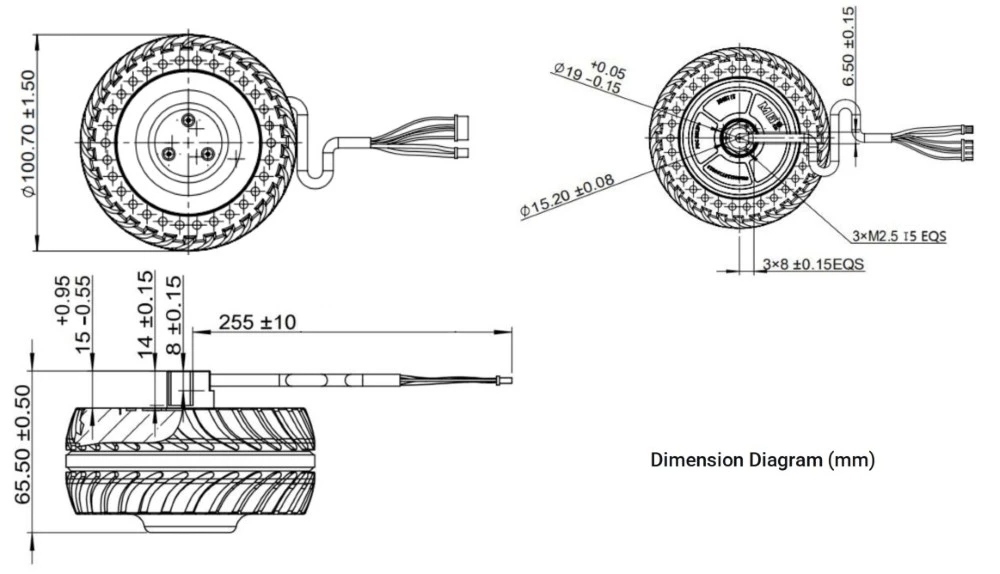

Figure: Dimension of M0601 Direct-Drive Hub Motor
Applications:
- Service Robots (Delivery, Guide, Cleaning)
- AGVs & AMRs (Logistics, Industrial Transport)
- Mobile Research Platforms
Package Content:
- M0601 Direct-Drive Hub Motor (Left Orientation)x1
- M0601 Direct-Drive Hub Motor (Right Orientation)x1
