Gravity: Infrared Light Photo Interrupter Module, 940nm

DFRobot

No reviews yet Write a Review
SKU:
147-DFR1129
MPN:
DFR1129
Gravity Infrared Light Photo Interrupter Module 940nm with ITR9608 photoelectric switch for precise detection and compatibility with Arduino, micro, and UNIHIKER.
The Gravity: Infrared Light Photo Interrupter Module, 940nm, equipped with the ITR9608 photoelectric switch, ensures precise detection. It features a wide photonic gap and standard Gravity interface, compatible with Arduino, micro, and UNIHIKER. View full description
  • 100% Original Products
  • GST Invoice
  • Earn 3% Cashback
₹287.92 inc. GST
₹244.00 ex. GST
5 people looking at this.

Technical Specifications

Brand:
DFRobot
Operating Voltage:
3.3-5.5V DC
Output Signal:
Digital Signal
Light Source Wavelength:
940nm (Infrared)
Photonic Gap:
5.0mm
Interface Type:
PH2.0-3P
Dimension:
27x32mm
Weight:
4.0g (total weight including packaging and sensor wire is 12g)

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Resources

Unleash Precision in Your Projects: Gravity: Infrared Light Photo Interrupter Module

Enhance your electronic projects with the Gravity: Infrared Light Photo Interrupter Module, 940nm. Engineered with the high-performance ITR9608 photoelectric switch, this module ensures reliable and precise photoelectric detection. Its compact design and ease of operation make it a perfect fit for various applications, from robotics to automation equipment and counting systems.

The photo interrupter works by blocking light with an object, utilizing a light emitter and receiver arranged face-to-face within the same enclosure. When an object interrupts the light path, the receiver detects the change, triggering the photoelectric sensor for accurate signal processing.

Key Features:

  • High Sensitivity and Precision: Leveraging the ITR9608 slotted photoelectric switch, it ensures accurate detection.
  • Wide Photonic Gap: The 5.0mm wide photonic gap design is suitable for detecting objects of various sizes.
  • Simple and Easy to Use: With a standard Gravity interface, it offers seamless operation and robust compatibility.
  • Strong Compatibility: Compatible with Arduino, micro, and UNIHIKER platforms, making it versatile for various projects.

Wiring Diagram of Gravity: Photo Interrupter Module

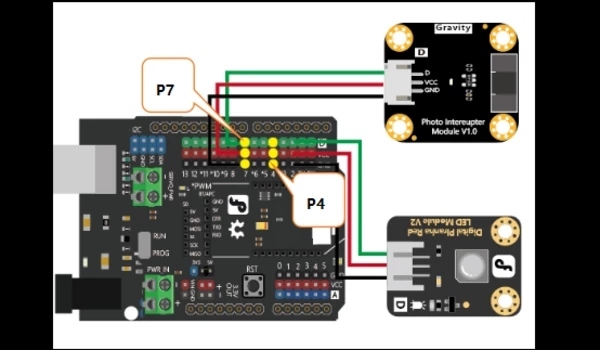

Wiring Diagram of Gravity: Photo Interrupter Module and Arduino UNO


Applications:

  • Counter: Facilitates object counting on production lines.
  • Speed Detection and Measurement: Provides pulse signals for calculating rotation speed and frequency.
  • Smart Card Switch: Detects card insertion and removal for power control.
  • Printer and Copier Paper Detection: Controls printing and transmission by detecting paper position.
Equip your projects with the Gravity: Infrared Light Photo Interrupter Module and achieve unparalleled accuracy and efficiency.

Shipping List

  • Gravity: Photo Interrupter Module x1
  • Gravity: Digital Sensor Cable for Arduino - 30cm x1
