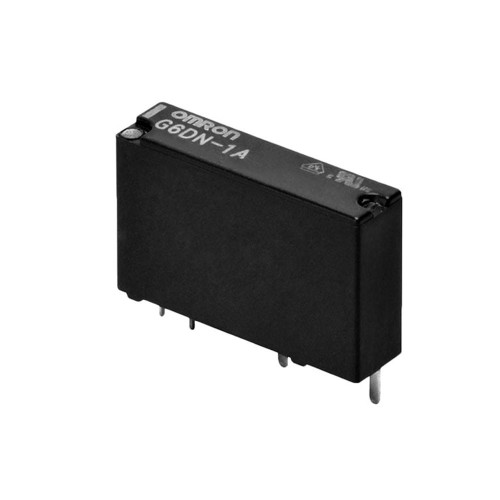

G6DN-1A-SL DC5 - 5V 5A 1FormA SPST High Power Relay DIP 20x5.1mm

Omron Electronics

No reviews yet Write a Review
SKU:
169-G6DN-1A-SL DC5
MPN:
G6DN-1A-SL DC5
G6DN 5V 5A SPST normally open slim DIP relay 20x5.1mm PCB mount relay for automation and control systems
Quantity
Unit Price (ex. GST)
1 - 9
₹ 172.65
10 - 99
₹ 164.02
100 or above
₹ 155.38
5V 5A SPST (1 Form A) ultra-slim DIP relay with 20x5.1mm compact size. Ideal for PCB switching, automation, and microcontroller-based applications. View full description
  • 100% Original Products
  • GST Invoice
  • Earn 3% Cashback
₹203.73 inc. GST
₹172.65 ex. GST
6 people looking at this.

Technical Specifications

Brand:
Omron Electronics
Package:
DIP
Size:
20x5.1mm
Contact Material:
Silver alloy+Gold plating
Coil Voltage:
5V
Number of Pins:
4
Operating Temperature:
-40 C~+90 C
Release Time:
5ms
Operate Time:
10ms
Contact Resistance:
100mOhm
Coil Rated Power:
110mW
Contact Form:
1 Set Normally Open: 1A (SPST NO)
Coil Resistance:
227Ohm
Switching Current(Max):
5A
Coil Type:
Non-Polarized - Single Coil

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Resources:
Datasheet

5V 5A SPST (1 Form A Normally Open) DIP Relay for High-Density PCB Switching and Control Applications

The G6DN 5V 5A 1 Form A SPST high power relay is a compact electromechanical relay engineered for efficient switching in PCB-based control systems. Operating on a 5V DC coil, this relay is ideal for microcontroller-driven applications, PLC outputs, and embedded electronics where low-voltage control meets moderate load switching. With a contact rating of up to 5A, it is suitable for controlling lighting circuits, small motors, and power lines. Its SPST normally open (NO) configuration ensures simple and reliable ON/OFF switching in automation and control systems.

Designed in an ultra-slim DIP package measuring approximately 20 × 5.1mm, the G6DN relay is optimised for high-density PCB layouts and compact device designs. It features low coil power consumption (~110mW), fast switching (~10ms), and high insulation strength, ensuring energy-efficient and stable operation. The relay supports a wide operating temperature range and durable silver alloy contacts, making it a dependable choice for industrial, telecom, and IoT applications.

Key Features

  • 5A Switching Capacity: Suitable for industrial and embedded load control
  • 5V DC Coil Voltage: Ideal for microcontrollers and low-voltage systems
  • SPST (1 Form A) Configuration: Normally Open (NO) switching
  • Ultra-Slim DIP Design: 20mmx5.1mm compact footprint
  • Low Power Consumption: ~110mW efficient coil operation
  • Fast Switching Speed: ~10ms operate time
  • High Insulation: ~3kV coil-to-contact isolation
  • Wide Operating Temperature: -40°C to+90°C
  • Reliable Contacts: Silver alloy contacts for long service life
