Banana Pi CM5 Pro IO Board For CM5 Pro Compute Module With HDMI, DP, 4x USB 3.0, PoE Gigabit Ethernet, M.2 PCIe, and MIPI DSI-CSI Interfaces
The Banana Pi CM5 Pro IO Board is an expansion carrier board built for the CM5 Pro compute module. It breaks out the module’s interfaces into standard connectors, so you can move from a bare module to a working system without designing a custom carrier board. This makes it a practical base for system development, testing and embedded prototyping.
The board offers 1x HDMI output, 1x DP output, 4x USB 3.0 Type-A ports and a Gigabit Ethernet RJ45 port with PoE support. A 40-pin GPIO header, an M.2 M-key slot with PCIe support and a microSD slot cover storage and peripheral expansion. Camera and display projects are well-supported by 1x 4-lane MIPI DSI, 1x 4-lane MIPI CSI and 1x 2-lane MIPI CSI connectors. Power input is through a 12V DC barrel jack, and a USB Type-C port handles firmware flashing and device mode.
Key Features
- Dual Display Output: 1x HDMI and 1x DP output for connecting monitors during development and testing.
- 4x USB 3.0 Type-A Ports: Connect keyboards, storage drives, cameras and other peripherals directly.
- Gigabit Ethernet With PoE Support: A single RJ45 port for wired networking, with PoE support for powering the board over the network cable.
- USB Type-C For Flashing And Device Mode: Update firmware and operate the board in device mode without extra adapters.
- 40-Pin GPIO Header: Interface sensors, modules and custom hardware.
- M.2 M-Key With PCIe Support: Add fast storage or other PCIe-based expansion.
- microSD Slot: An additional storage and boot option.
- MIPI DSI Display Interface: 1x 4-lane MIPI DSI supporting up to 4K at 60 fps.
- Two MIPI CSI Camera Interfaces: 1x 4-lane CSI0 and 1x 2-lane CSI1, each lane up to 2.5 Gbps.
- Additional Headers: HPOUT, FAN and VRTC connectors for audio output, cooling and real-time clock backup.
- 12V DC Barrel Jack: Standard power input for bench setups.
- Compact Build: 100 x 80 x 29 mm and 200 g.
Applications
- Embedded system and product prototyping
- Evaluation and testing of the CM5 Pro compute module
- Camera and machine-vision development using MIPI CSI
- Display-based projects such as kiosks and signage using HDMI, DP or MIPI DSI
- Edge computing and networked devices using PoE Ethernet
- Storage-focused builds using M.2 PCIe expansion
- Education, labs and hobbyist development

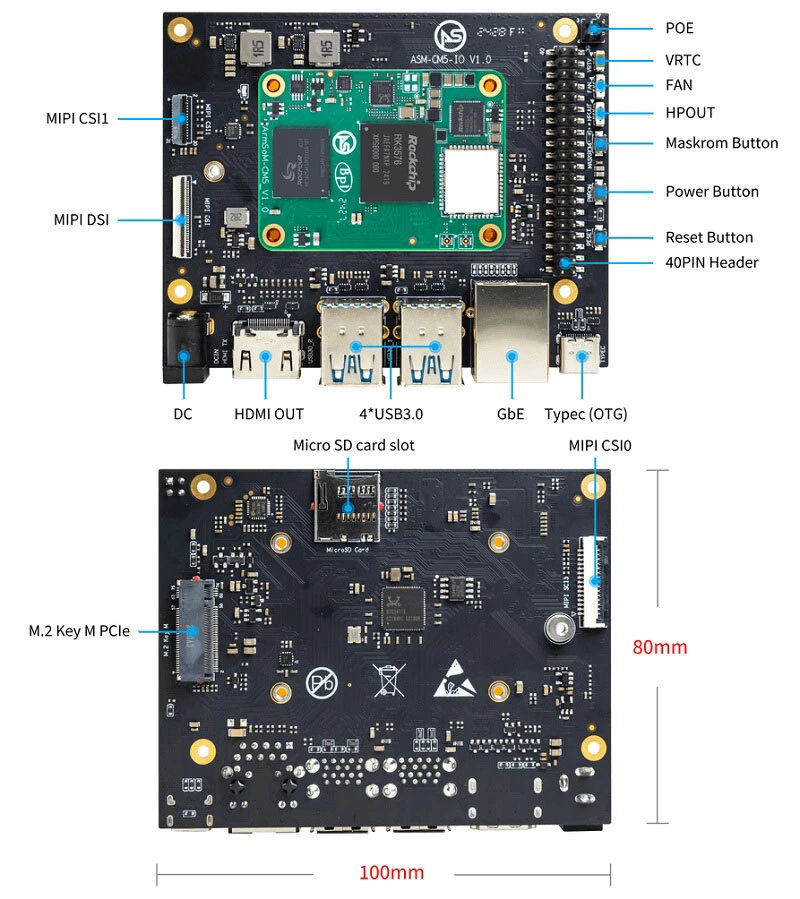

Hardware Interface(BPI-CM5 Pro+IO Board)
Note: CM5 Pro module not included in the package
