8inch 800x1280 DSI IPS Capacitive Touch Display Optical Bonding Toughened Glass

Waveshare

No reviews yet Write a Review
SKU:
061-30326
MPN:
30326
8 inch IPS capacitive touch display 800x1280 DSI interface 10 point multi touch glass panel for embedded systems
8-inch IPS touch display with 800x1280 resolution, DSI interface, and 10-point capacitive touch. Ideal for embedded systems, HMI, and IoT applications. View full description
  • 100% Original Products
  • GST Invoice
  • Earn 3% Cashback
₹6,224.50 inc. GST
₹5,275.00 ex. GST
18 people looking at this.

Technical Specifications

Brand:
Waveshare
Display Size:
8 inch
Resolution:
800x1280
Display Panel:
IPS
Viewing Angle:
178 Deg
Touch Type:
Capacitive Touch
Brightness:
400cd/m2

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Resources:
Wiki: www.waveshare.com/wiki/8-DSI-TOUCH-A

8 Inch IPS Touch Display with 800x1280 Resolution, DSI Interface and 10-Point Capacitive Multi-Touch Glass Panel

The 8-inch IPS capacitive touch display offers a balanced combination of clarity, responsiveness, and integration flexibility for embedded systems and interactive applications. With a resolution of 800x1280, this display delivers sharp visuals and consistent colour reproduction, supported by IPS technology for wide viewing angles and stable image quality. The DSI (Display Serial Interface) ensures high-speed data transmission with low latency, making it ideal for Raspberry Pi, embedded boards, industrial HMIs, and multimedia devices.

Designed for smooth user interaction, the display features a 10-point capacitive touch panel protected by durable glass, enabling precise multi-touch gestures and long-term reliability. Its compact and slim design makes it suitable for space-constrained applications such as smart control panels, IoT dashboards, portable devices, and automation systems. This display panel is well-suited for developers and engineers seeking a reliable and responsive touch interface for modern embedded projects.

Key Features

  • 8 Inch IPS Display: Wide viewing angles with accurate colour reproduction
  • 800x1280 Resolution: Clear and sharp visual output
  • DSI Interface: High-speed communication with low latency
  • 10-Point Capacitive Touch: Supports multi-touch gestures for enhanced interaction
  • Glass Panel Protection: Durable surface for long-term usage
  • Slim and Compact Design: Ideal for embedded and portable applications
  • Responsive Touch Performance: Smooth and accurate input detection
  • Wide Application Range: Suitable for IoT, HMI, and multimedia systems

Package Content:

  1. 8-DSI-TOUCH-A x1
  2. MIPI-DSI-Cable-12cm x1
  3. MX 1.25 2PIN to 2.54 3PIN cable x1
  4. FFC 22PIN cable ~200mm x2
  5. MX 1.25 2PIN to MX1.25 4PIN cable ~150mm x1
  6. Screws pack x1

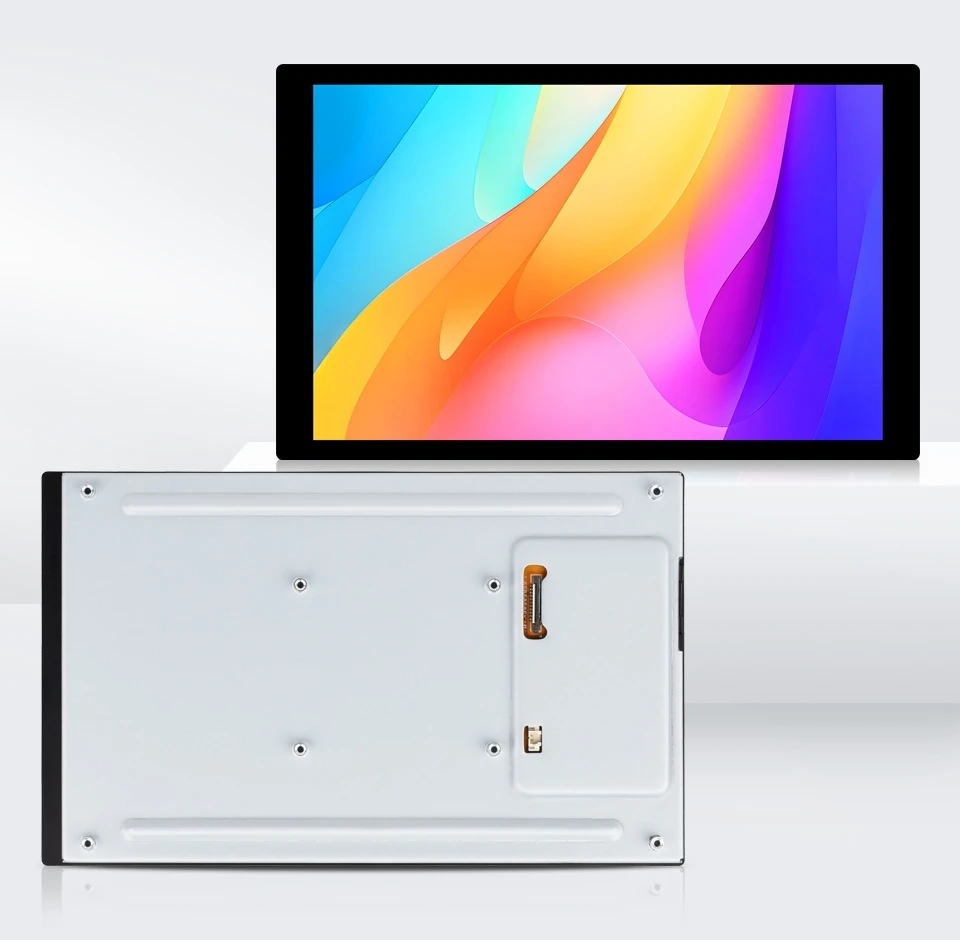

8 inch DSI Capacitive Touch Display

Connection Examples

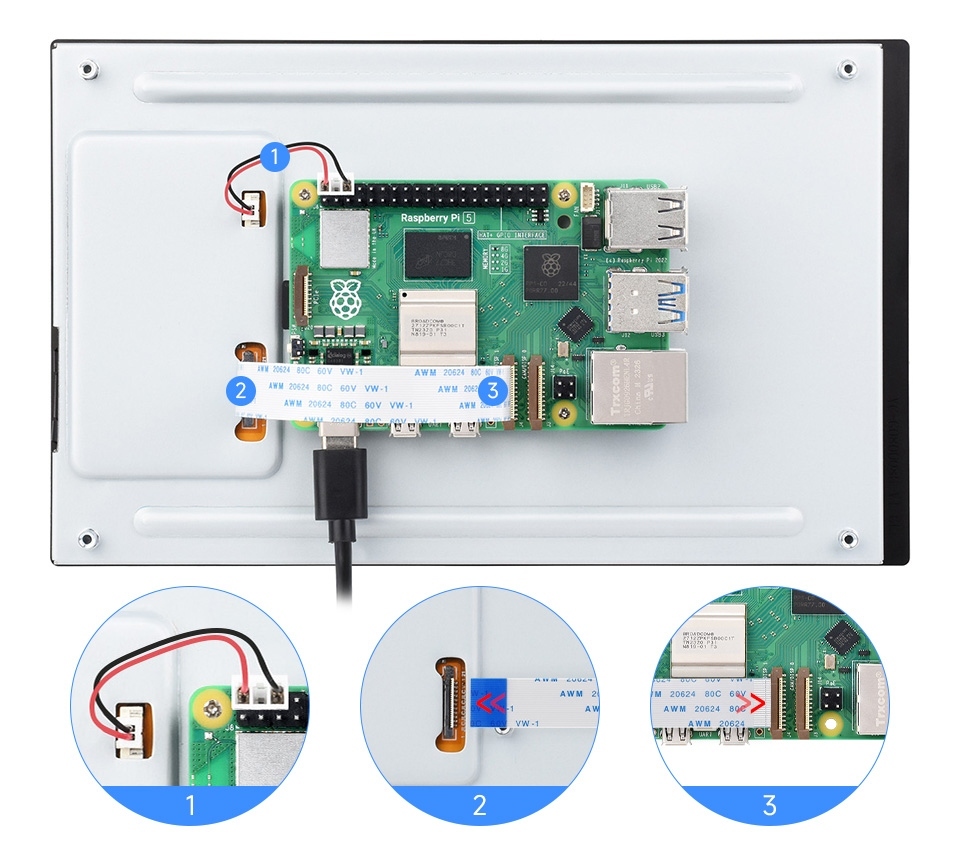

Connecting To Raspberry Pi 5

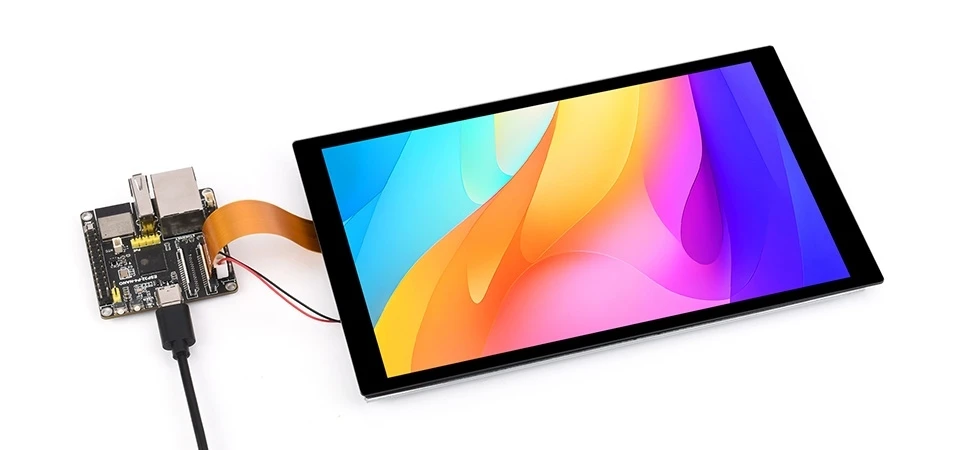

Connecting to ESP32-P4-NANO

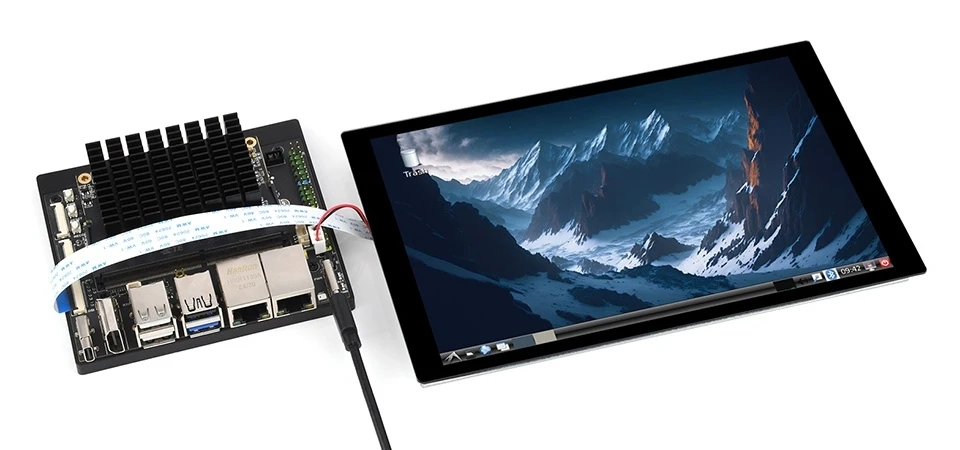

Connecting to Luckfox-Omni3576 Development Board

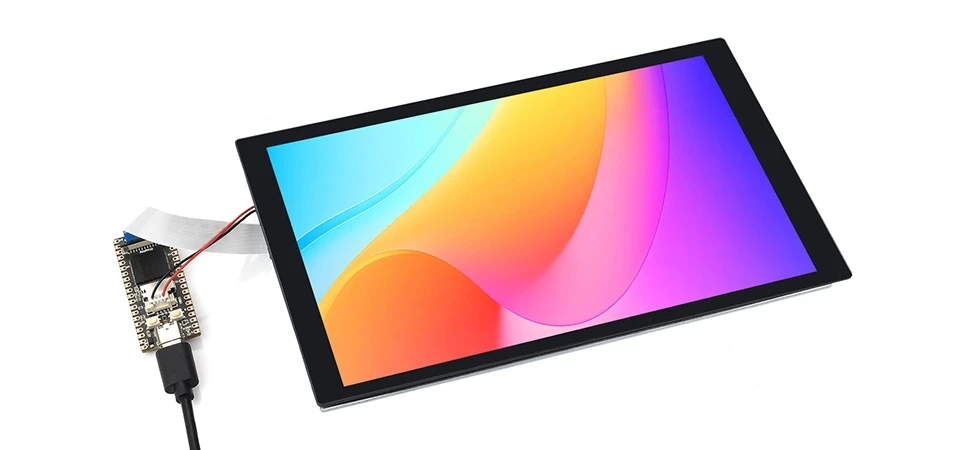

Connecting to Luckfox Lyra Development Board

Note: For Reference only, the above controller boards or hosts are NOT included

10-Point Capacitive Touch

  1. up to 10-point touch, depending on the operating system
  2. up to 6H hardness toughened glass panel
  3. Optical bonding, provides clear image, dustproof

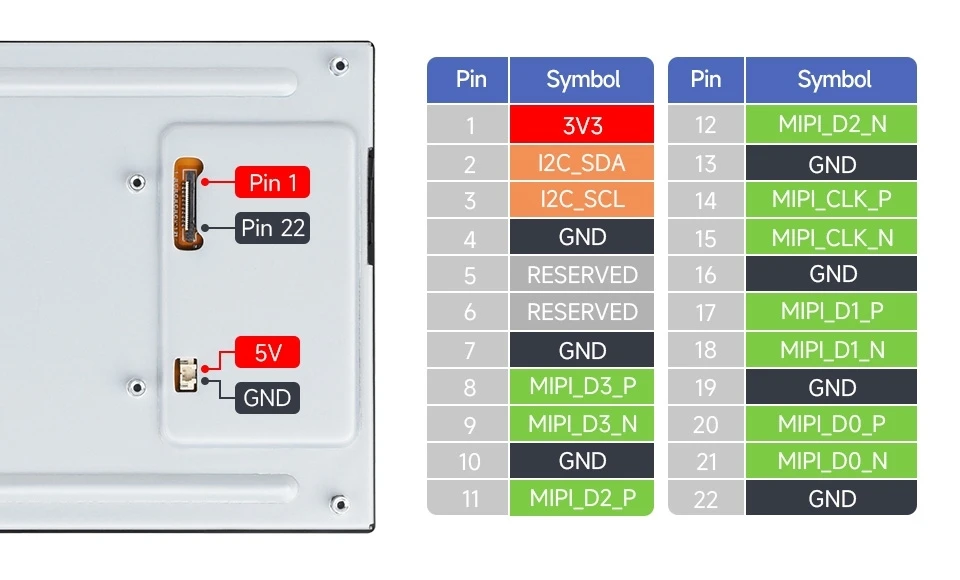

Interface

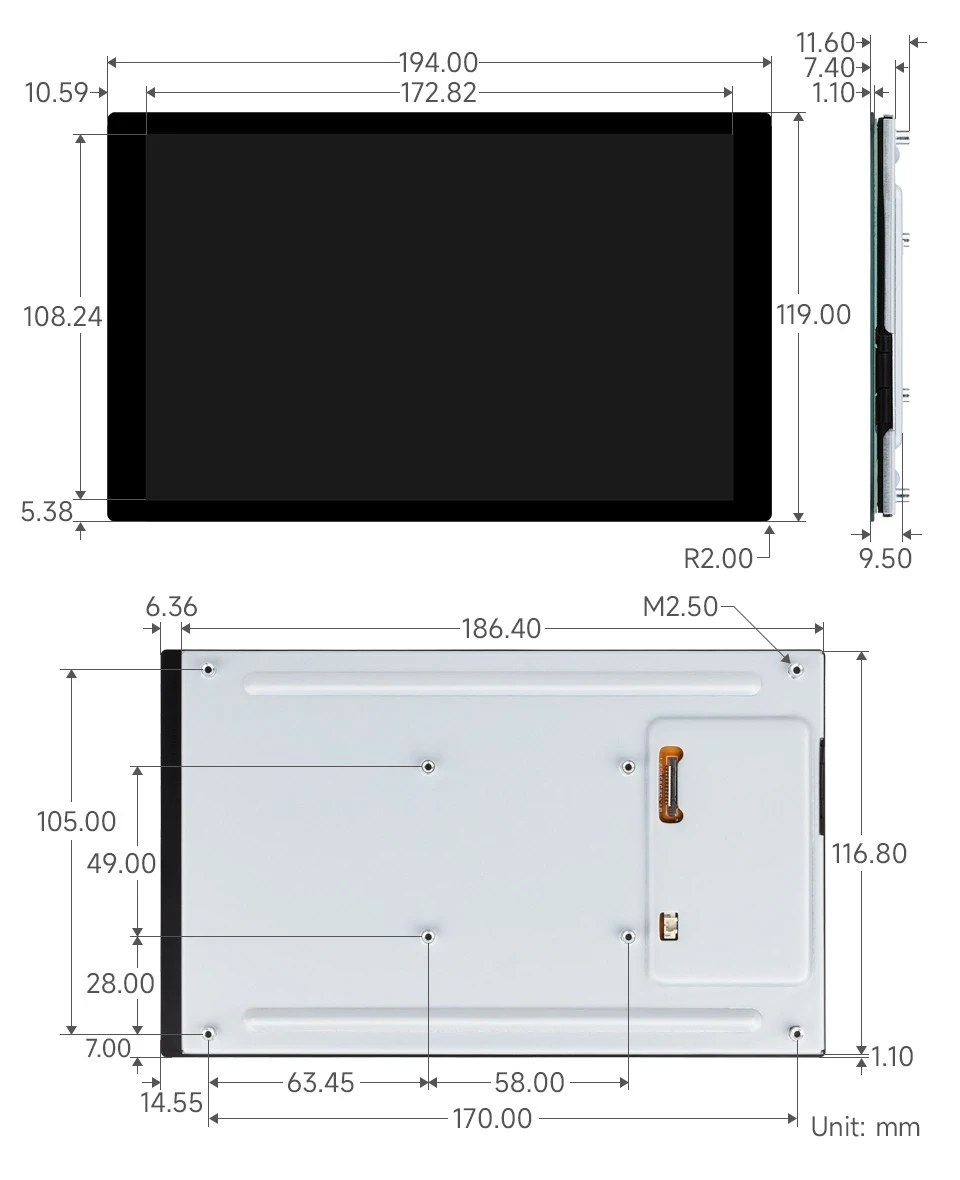

Outline Dimensions
