7-inch 1280x800 Touch Display, Optical Bonding Toughened Glass Panel, HDMI

Resources:
Wiki: www.waveshare.com/wiki/7EP-CAPLCD

7 Inch HDMI Capacitive Touch Display with 1280 x 800 Resolution and Optically Bonded Toughened Glass Panel, HDMI Interface, IPS, 10-Point Touch

The 7 Inch HDMI Capacitive Touch Display is a high-performance display module designed for embedded systems, industrial control, multimedia, and human-machine interface (HMI) applications. Featuring a 7 inch IPS display with a resolution of 1280 × 800 pixels, it delivers sharp visuals, vibrant colors, and wide viewing angles for an enhanced user experience. The optically bonded toughened glass panel minimizes internal reflections while improving display clarity, durability, and touch responsiveness.

Equipped with a responsive capacitive multi-touch panel and HDMI interface, this display integrates easily with Raspberry Pi, industrial PCs, mini computers, and other embedded platforms. The robust toughened glass construction provides excellent protection against scratches and impacts, making it suitable for demanding commercial and industrial environments. Its compact form factor and reliable performance make it an ideal solution for interactive kiosks, smart home systems, medical devices, automation equipment, and portable embedded projects.

Key Features

• 7 Inch IPS Display: Compact display with vivid colors and wide viewing angles.
• High Resolution: 1280 x 800 pixels provide sharp and detailed image quality.
• HDMI Display Interface: Simple connection to Raspberry Pi, PCs, and embedded systems.
• Capacitive Multi-Touch: Responsive touch panel supports smooth and accurate interaction.
• Optically Bonded Panel: Improves display clarity while reducing internal reflections.
• Toughened Glass Protection: Durable glass panel resists scratches and enhances reliability.
• Wide Viewing Angles: IPS technology ensures consistent image quality from multiple directions.
• Compact Design: Suitable for space-constrained embedded applications.
• Easy Integration: Compatible with a wide range of embedded computing platforms.
• Reliable Performance: Designed for continuous operation in industrial and commercial applications.

Applications

• Raspberry Pi projects
• Industrial HMI systems
• Embedded control panels
• Smart home interfaces
• Interactive kiosks
• Medical equipment
• Digital signage
• Portable embedded devices
• Multimedia systems
• Educational and research platforms

Connection Examples

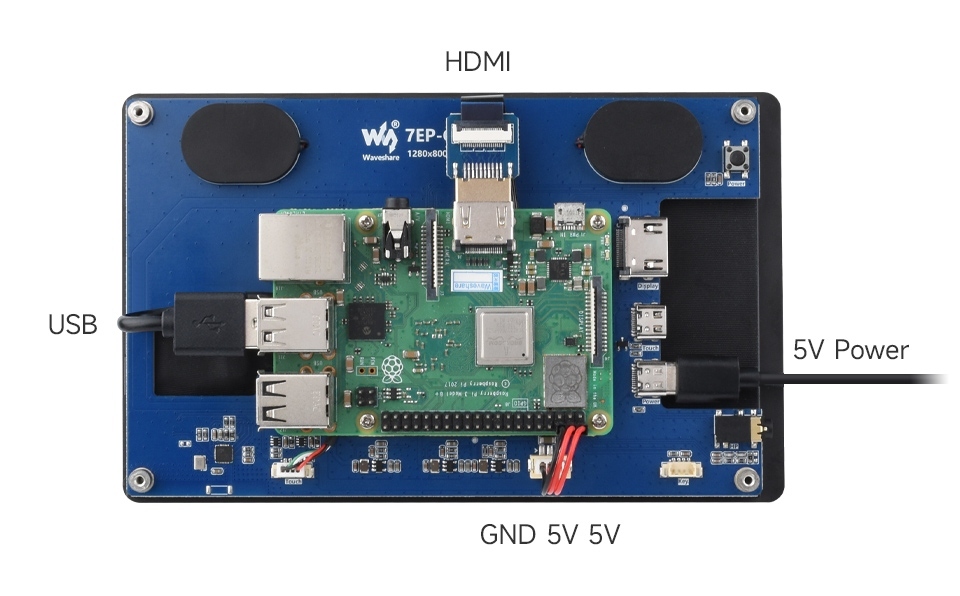

Working with Raspberry Pi 5 / 4B

Working with Raspberry Pi 3B+

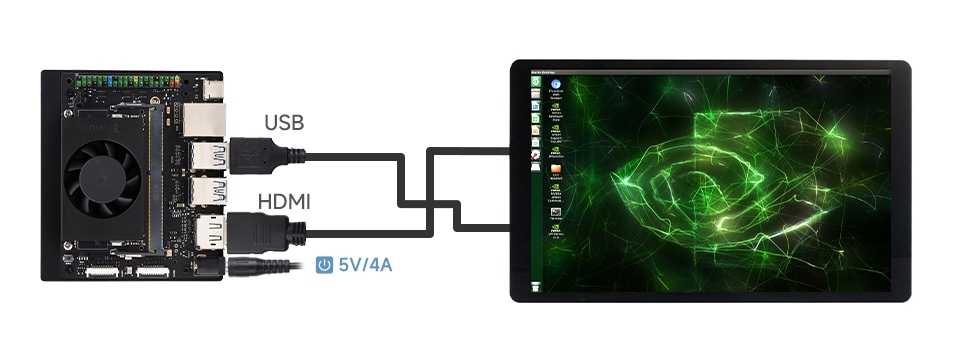

Working with Jetson Series Board

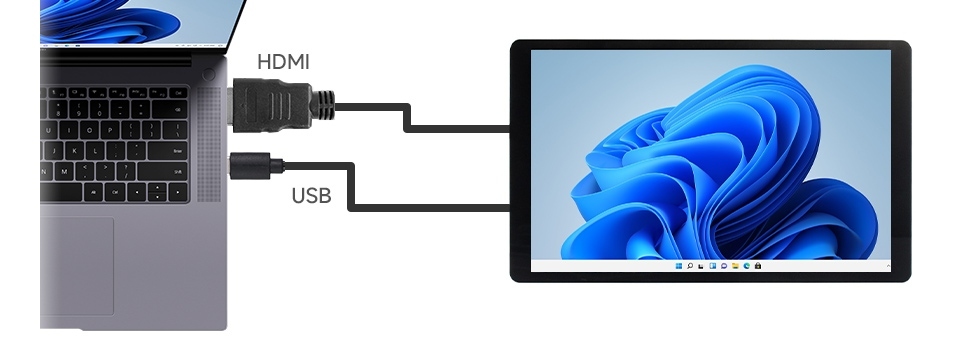

Working with PC

Note: For reference only, the above controller boards or hosts are NOT included

How to Install

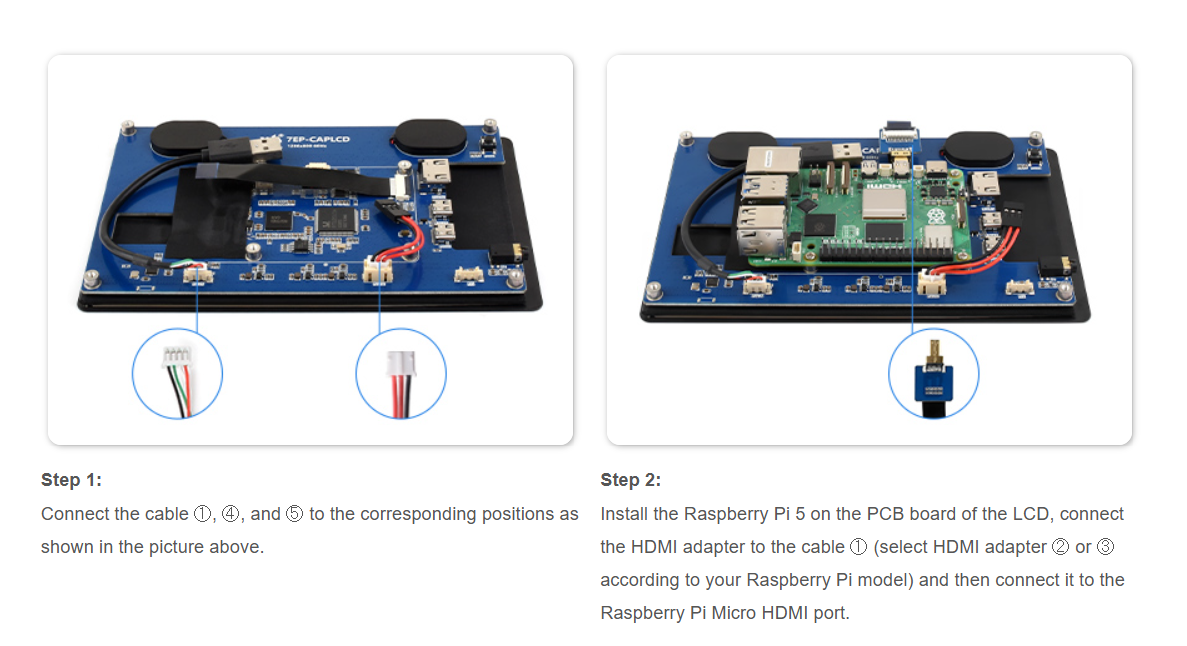

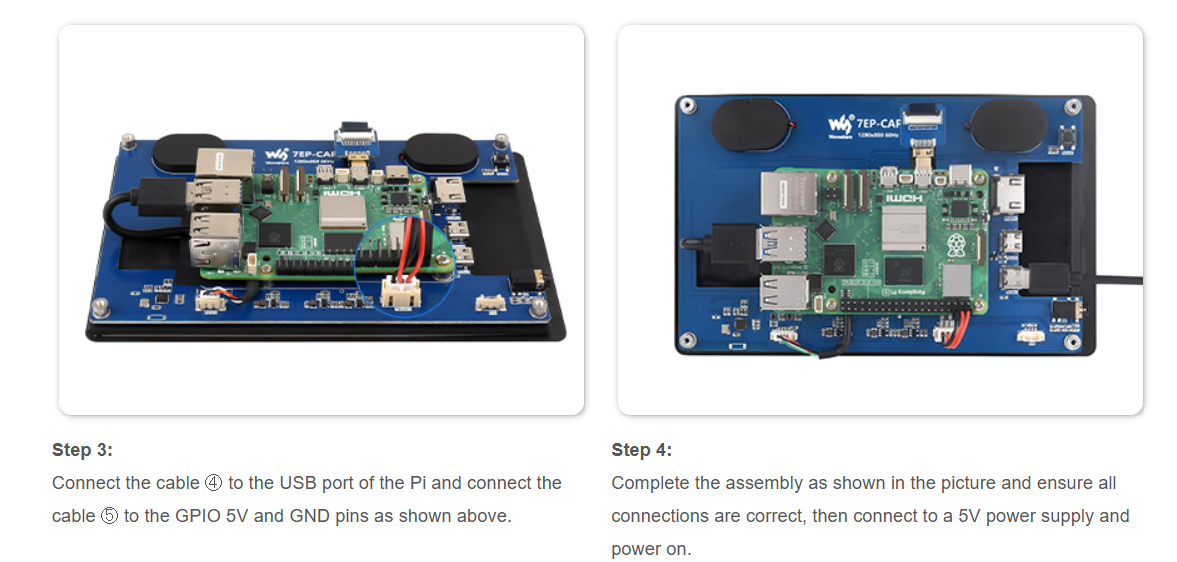

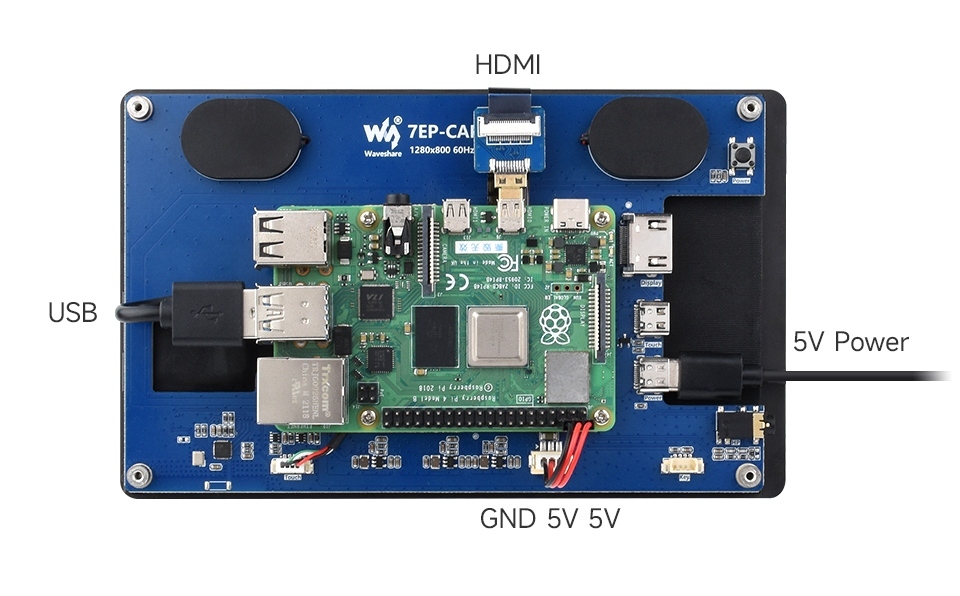

Prepare the accessories as shown above; here we take Raspberry Pi 5 as an example

NOTE: For reference only, the Raspberry Pi 5 is NOT included

Capacitive 10-Point Touch

1. up to 10-point touch, depending on the operating system
2. up to 6H hardness toughened glass panel
3. Optical Bonding, provides clear image, dustproof

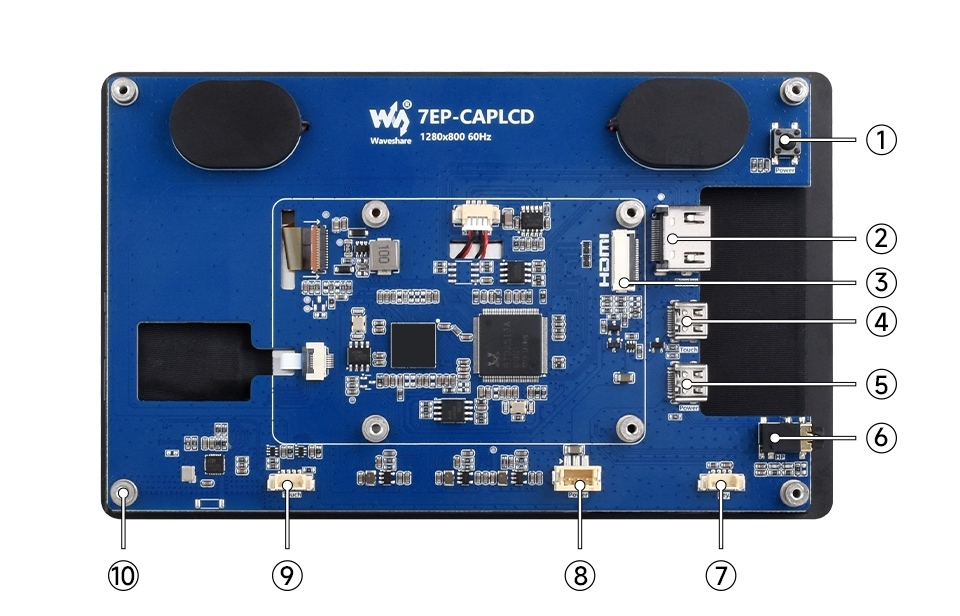

Interface Introduction

1. Backlight ON/OFF
2. HDMI Standard Interface
3. HDMI FFC Connector
4. Type-C Touch Port
5. Type-C Power Supply Port
6. 3.5mm Audio Jack
7. Button Board Header
8. 3PIN PH2.0 Power Supply Header
9. 4PIN PH1.25 Touch Header
10. M2.5 Mounting Standoff

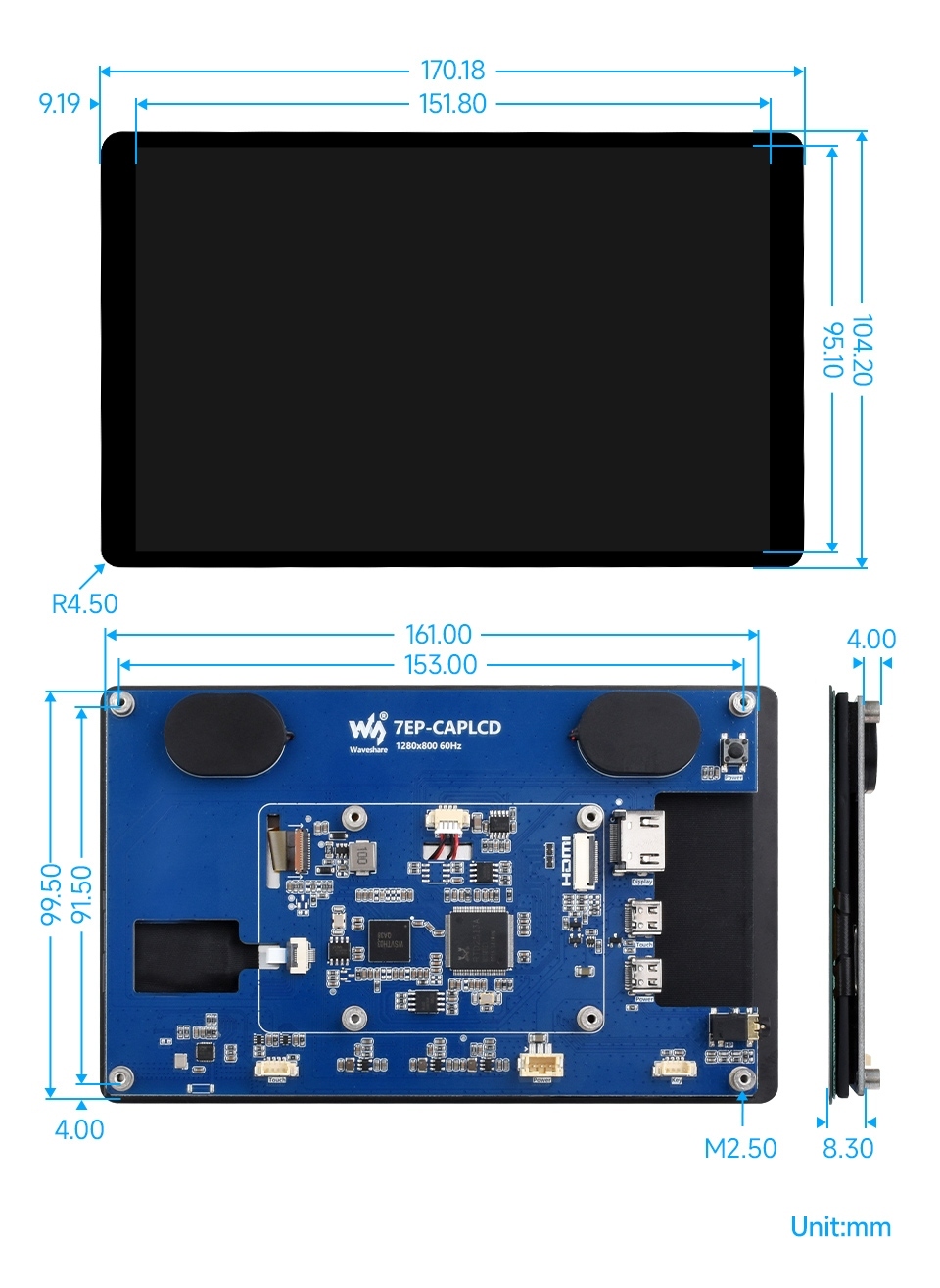

Dimensions

Package Includes:

1. 7EP-CAPLCD ×1
2. HDMI flat cable ~1m ×1
3. USB Type-A to Type-C cable ~1m ×1
4. Cleaning cloth x1
5. Micro HDMI Adapter ×1
6. HDMI Adapter ×1
7. Button board ×1
8. 3PIN cable ×1
9. HDMI to Micro HDMI Adapter ×1
10. FFC 20PIN cable 2pcs ×1
11. 1.27H 4PIN cable ×1
12. PH1.25 4PIN to Type-A cable ×1
13. Screws pack x1
