7Semi STM32C011J6M6 STM32 Micro Development Board

Unleash your embedded potential: The 7Semi STM32C011J6M6 Development Board

The 7Semi STM32C011J6M6 Development Board is your gateway to the exciting world of embedded systems development. This board packs the powerful STM32C011J6M6 Arm Cortex-M0+ microcontroller (MCU) into a compact and user-friendly design, making it ideal for beginners and experienced developers.

• Powerful STM32C011J6M6 MCU: At its heart lies the STM32C011J6M6 MCU, offering an ARM Cortex-M0+ core, ample memory, and a rich set of peripherals for diverse applications.
• Compact and portable: The board's small size and lightweight design make it perfect for prototyping and portable projects.
• Easy-to-use: The board comes pre-loaded with essential circuitry, including a voltage regulator and user LEDs, simplifying your development process.
• Flexible connectivity: Connect to various devices and sensors with onboard headers for SPI, I2C, UART, and GPIO interfaces.
• SWD debugging: Seamlessly program and debug your projects using the built-in Serial Wire Debug (SWD) interface.
• Includes ST state-of-the-art patented technology
• Core: Arm 32-bit Cortex-M0+ CPU, frequency up to 48 MHz
• Memories
  • 32 Kbytes of flash memory with protection
  • 6 Kbytes of SRAM with hardware parity check
• CRC calculation unit
• Reset and power management
  • Voltage range: 2.0 V to 3.6 V

• Learning embedded development: The board's user-friendly design and comprehensive resources make it perfect for learning embedded systems fundamentals.
• Rapid prototyping: Quickly test and iterate on your ideas with the board's easy setup and flexible connectivity options.
• IoT projects: Develop Internet of Things (IoT) applications leveraging the MCU's low-power consumption and wireless communication capabilities.
• Wearable electronics: Create compact and power-efficient wearable devices with the board's small form factor.

• STM32C011J6M6 datasheet
• DV-10118 Board 3D Step File
• DV-10118 Board DXF File

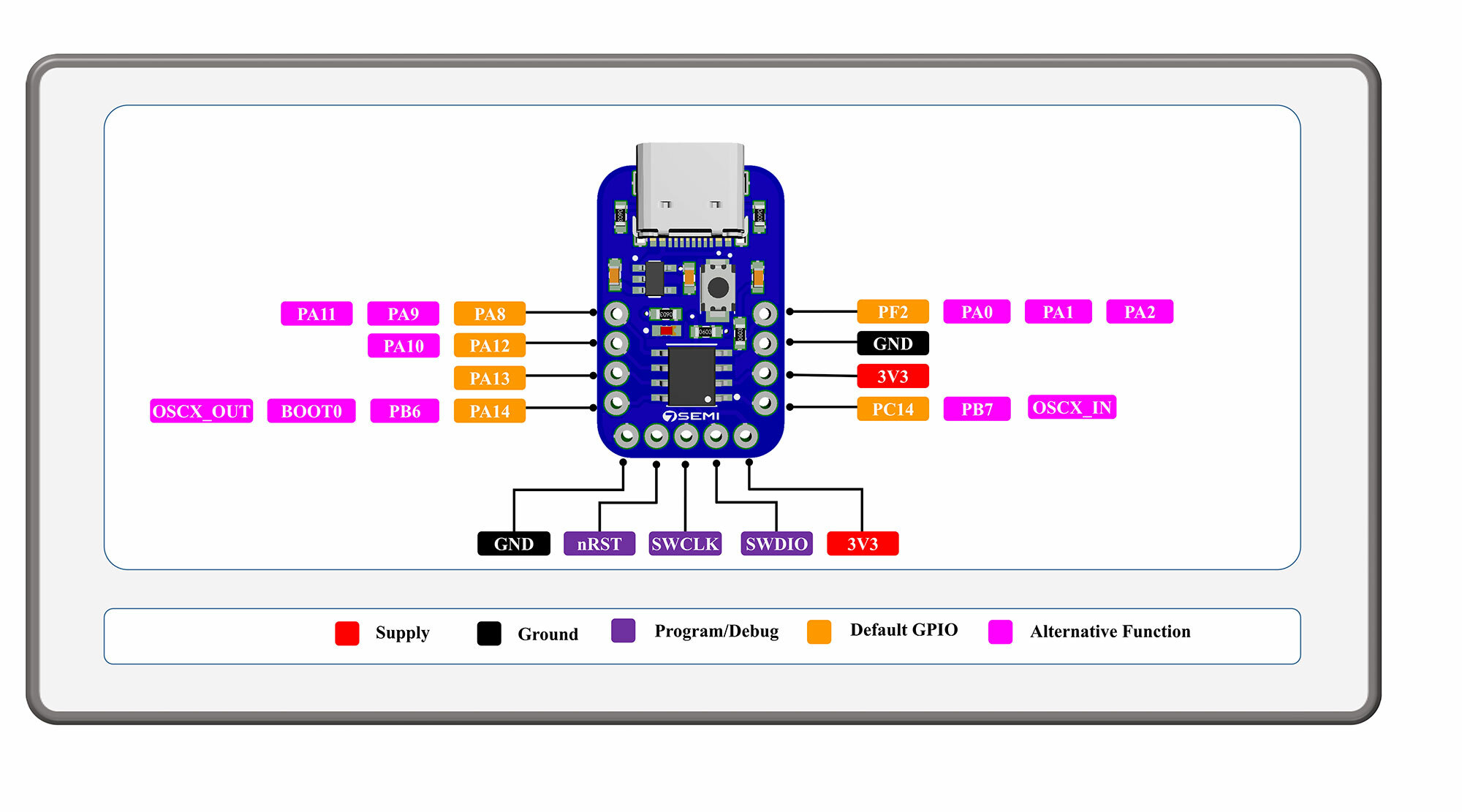

Board Pinouts
