Streamline ARM Microcontroller Programming and Debugging with the 7Semi ARM-JTAG-20-10 Adapter
The 7Semi ARM-JTAG-20-10 simplifies your workflow for ARM microcontroller development. This plug-in adapter seamlessly bridges the gap between ARM microcontrollers and compatible programmers/debuggers like ARM-USB-OCD, ARM-USB-OCD-H, ARM-USB-TINY, and ARM-USB-TINY-H.

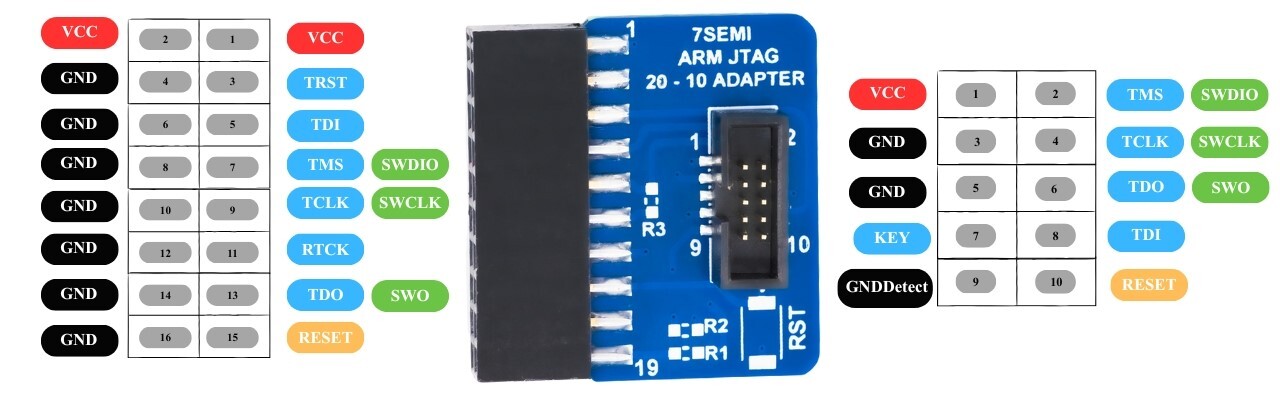

Pinouts
Designed for Efficiency
- Universal Compatibility: Featuring a JTAG 20-pin 0.1 inch to 10-pin 0.05 inch configuration, the adapter adheres to the official ARM JTAG layout. This ensures seamless integration with a wide range of ARM-based devices.
- Broad Programmer Support: The adapter extends its compatibility to other JTAG/SWD programmers/debuggers, including Segger's JLINK.
- Compact Design: Measuring just 25x25 mm, the adapter boasts a space-saving design ideal for tight working environments.
Effortless Programming and Debugging
- Ideal for Small Connectors: This adapter specifically caters to boards equipped with small, 10-pin 0.05 inch step connectors, eliminating connection hassles.
- 20 cm JTAG Cable: The included 20 cm JTAG cable provides ample reach for comfortable use.
Key Features:
-
Plug-in adapter compatible with ARM-USB-OCD/OCD-H/TINY/TINY-H for programming and debugging boards with small, 10-pin 0.05 inch step connectors
-
Standard ARM JTAG layout for extensive compatibility
-
Works seamlessly with Segger's JLINK and other JTAG/SWD programmers/debuggers
-
Compact size (25x25 mm) and 20 cm JTAG cable with 0.05 inch step for user-friendly application
