7Semi XT60 + XT30 Smoke Stopper with Dual Resettable PPTC Protection for 1S–6S LiPo Systems
The 7Semi Amass XT60 + XT30 Smoke Stopper is a reusable circuit-protection and testing module designed for safely powering newly assembled FPV drones, RC models, robotics systems, and custom battery-powered electronics. Installed between a LiPo battery and the device under test, it limits excessive current caused by short circuits, wiring faults, and other abnormal conditions during initial power-up, helping reduce the risk of damage to ESCs, flight controllers, receivers, power-distribution boards, and connected electronics.
The module supports both XT60 and XT30 battery-system connections and operates from 3–30V DC, covering 1S–6S LiPo applications. Two resettable PPTC protection devices rated at 0.5A and 1.1A provide reusable overcurrent protection without requiring disposable fuse replacement after normal recovery. Integrated PWR and ERR LEDs provide quick visual indication of operating and fault conditions, while the compact 48 × 32 mm PCB is convenient for field testing, workbench diagnostics, and first-power-up checks.
Key Features
- First Power-Up Protection: Helps protect newly assembled electronics during initial battery connection
- Short-Circuit Protection: Limits excessive current during wiring faults and short circuits
- Dual Connector Support: Suitable for XT60 and XT30 LiPo-powered systems
- Dual PPTC Protection: Integrates 0.5A and 1.1A resettable protection devices
- Automatic Recovery: PPTC devices reset after the fault is removed and they cool down
- No Disposable Fuse: Eliminates routine fuse replacement after recoverable overcurrent events
- Wide Input Range: Supports 3–30V DC
- LiPo Compatibility: Suitable for 1S–6S LiPo battery systems
- Power Indicator: PWR LED provides operating-status indication
- Error Indicator: ERR LED provides visual fault indication
- Plug-and-Play Operation: Installs in-line between the battery and device under test
- Wide Temperature Range: Operates from -40°C to +75°C
- Compact Design: 48.0 × 32.0 × 11.42 mm form factor
- Reusable Test Tool: Suitable for repeated prototype and repair diagnostics
Applications
- FPV drone first power-up
- RC aircraft testing
- RC car electronics
- Flight-controller installation
- ESC system testing
- Power-distribution board diagnostics
- XT30-powered electronics
- XT60-powered electronics
- Robotics development
- Prototype power testing
- Wiring fault diagnosis
- DIY electronics
- Battery-powered embedded systems
- Electronics repair and troubleshooting
Circuit protection board XT60 & XT30

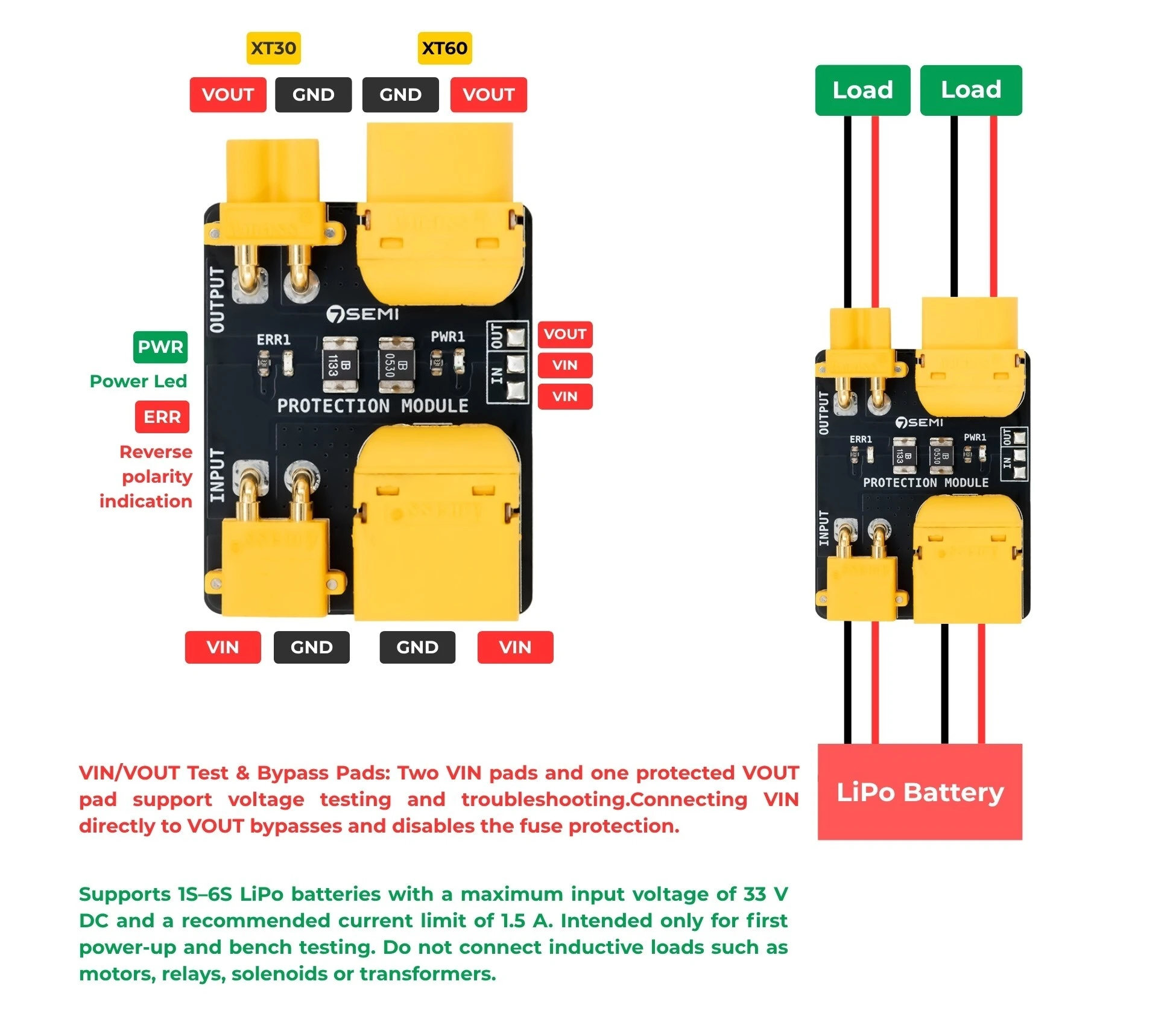

Hardware Interface Guide
