4G Module Expansion Board for Jetson Orin with SIM7600G-H-M.2 Module
The 4G Module Expansion Board for Jetson Orin is a high-speed wireless communication module that integrates the SIM7600G-H-M.2 4G module, providing global 4G/3G/2G network coverage and GNSS positioning capabilities. Designed for Jetson Orin Nano, Orin NX, and other embedded computing platforms, this module enables stable and efficient mobile data communication for IoT, AI, robotics, and remote monitoring applications. Equipped with a USB 3.1 interface (backward compatible with USB 2.0), the module connects seamlessly to Jetson Orin, PCs, or Raspberry Pi boards, delivering high-speed 4G network access with low latency. It supports multiple communication protocols such as dial-up, phone call, SMS, TCP, UDP, MQTT, HTTP(S), FTP(S), and more — making it a flexible solution for diverse networking and data transmission tasks. In addition to connectivity, the module features GNSS positioning support across major satellite systems including GPS, Beidou, Glonass, Galileo, QZSS, and LBS base station positioning, offering accurate global navigation and tracking capabilities. Its onboard M.2 B-Key slot and module selection switches provide compatibility with a variety of M.2 communication modules such as SIM8260X-M2, SIM8262X-M2, RM5XX, and SIM7600 series.
Key Features
- High-Speed 4G Communication: Supports 4G/3G/2G network connectivity with global coverage using SIM7600G-H-M.2 module.
- Comprehensive Protocol Support: Compatible with dial-up, phone call, SMS, TCP, UDP, MQTT, HTTP(S), FTP(S), and more.
- GNSS Positioning: Multi-system support including GPS, Beidou, Glonass, Galileo, QZSS, and LBS for precise global navigation.
- USB 3.1 Interface: Enables high-speed data transfer; backward compatible with USB 2.0.
- Wide Compatibility: M.2 B-Key slot with selection switches for SIM8260X-M2 / SIM8262X-M2 / RM5XX / SIM7600 modules.
- Antenna Connectivity: 4xSMA connectors for reliable wireless signal performance.
- Audio Functionality: Built-in audio interface and decoding chip for call and voice operations.
- Power Management: Onboard power switch, reset button, and LED status indicators for easy control and monitoring.
- High-Efficiency Power Circuit: Supports up to 3A current for stable operation under load.
- Versatile Applications: Ideal for Jetson Orin-based IoT, robotics, smart cities, remote monitoring, and AI-driven embedded systems.
4G module For Jetson Orin
Featuring a high-performance SIM7600G-H-M.2 4G global module
Supports 4G/3G/2G connectivity and GNSS location, with global band support.
Multi System Support, Easy To Use

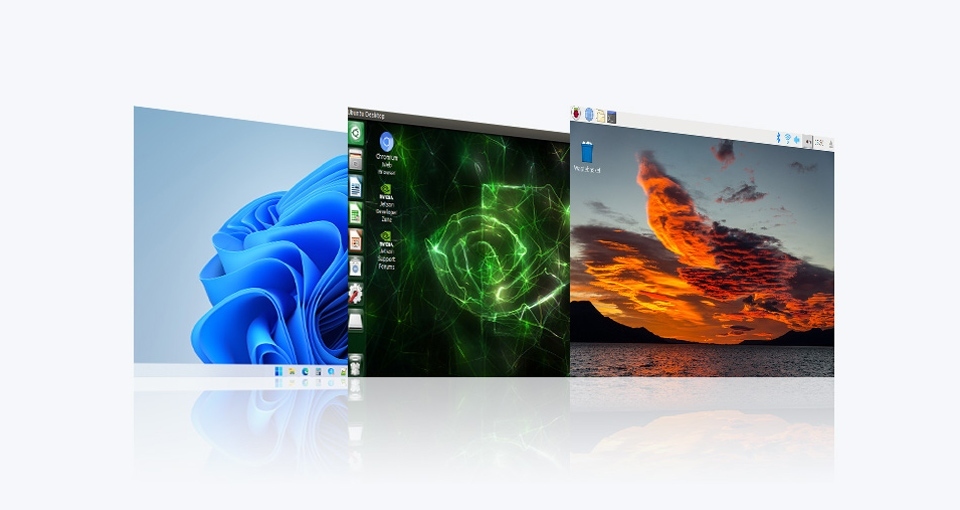

Supports Windows 7 / 8 / 10 / 11, Ubuntu, Raspberry Pi OS, and OpenWRT systems. Just plug it into USB port and simple configuration, the high speed 4G network connection would be ready to use.
Connection Examples

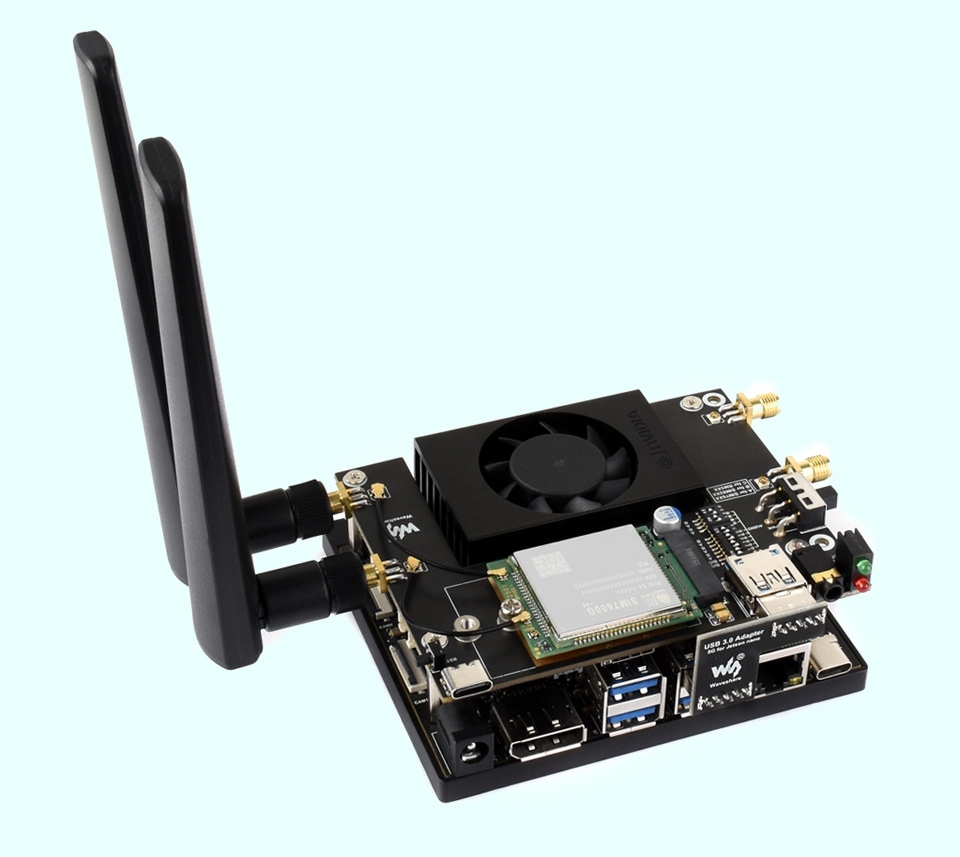

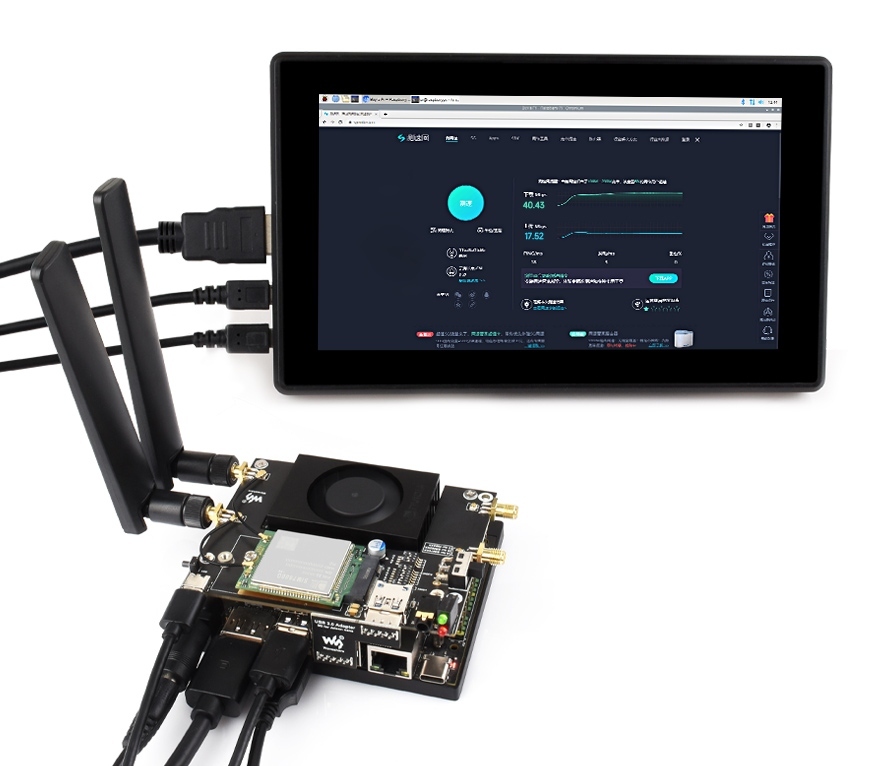

For Jetson Orin Nano and NX, use a dedicated USB adapter. For Windows PC, Jetson Nano series, Raspberry Pi 5 / 4B / 3B+, and CM5 / CM4 series, use a USB dual plug cable.
Note: For Reference Only please refer to the package content for detailed part list.

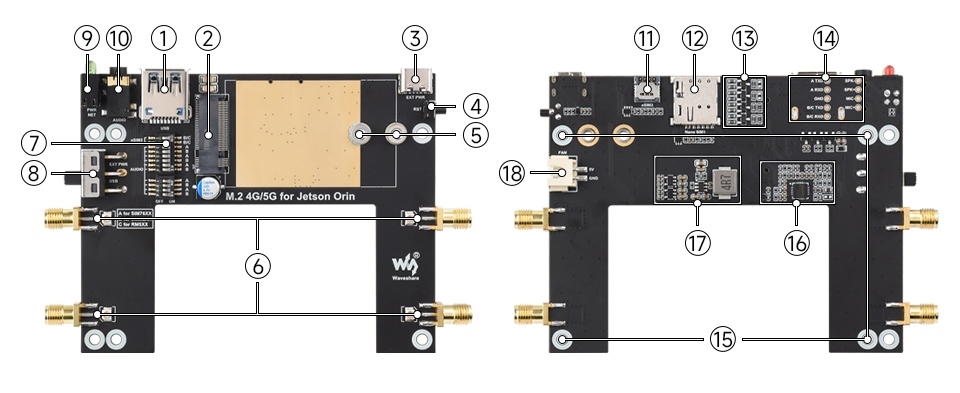

What's On Board
- USB3.1 port
USB 2.0 compatible, for connecting with different hosts
- M.2 slot
compatible with most SIMCom and QUECTEL 4G / 5G modules in M.2 form factor
- USB Type-C port
5V 3A power input, stable and flexible power supply
- Reset button
- Module fixing holes
supports 3042 / 3052 package modules
- Antenna connectors
Supports quad antennas
- Module settings switch
Switch A to ON for SIM7600X / A7906X / SIM7906X / SIM7912X series 4G M.2 modules;
Switch B to ON for SIM8202X / SIM8200EA / SIM8262X / SIM8260X series 5G M.2 modules;
Switch C to ON for RM520N-GL / RM530X / EM06X series 5G / LTE-A M.2 modules
- Power supply switch
Switch the power supply mode:
When set to USB, the module is powered via the "1. USB3.1 port"
When set to EXT PWR, the module is powered by the external power supply via the "3. USB Type-C port"
- Indicator
Easy to monitor the operating status of module
- Audio jack
SIM82XX / SIM7600X series supports audio function, but RM5XX series temporarily does not support this function
- eSIM card slot
configured via AT commands, suitable for SIM8XXX / RM5XX / EM06XX series modules, SIM7600X series modules are not supported
- Nano SIM card slot
please turn off the power before installing or removing the SIM card.
- Level conversion circuit
- Reserved UART and audio interface pads
- Mounting holes
for installing this module onto the Jetson Orin board via screws
- Audio drive circuit
- Power supply circuit
- Fan header
for 5V cooling fan

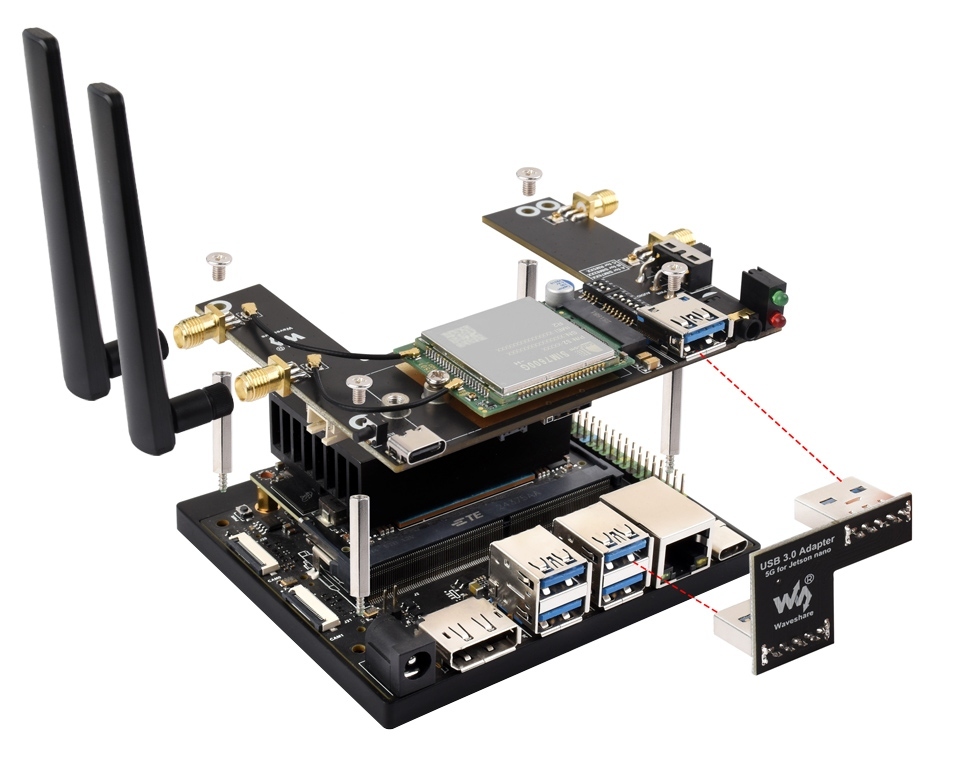

Installation
For reference only, please refer to the package content for detailed part list

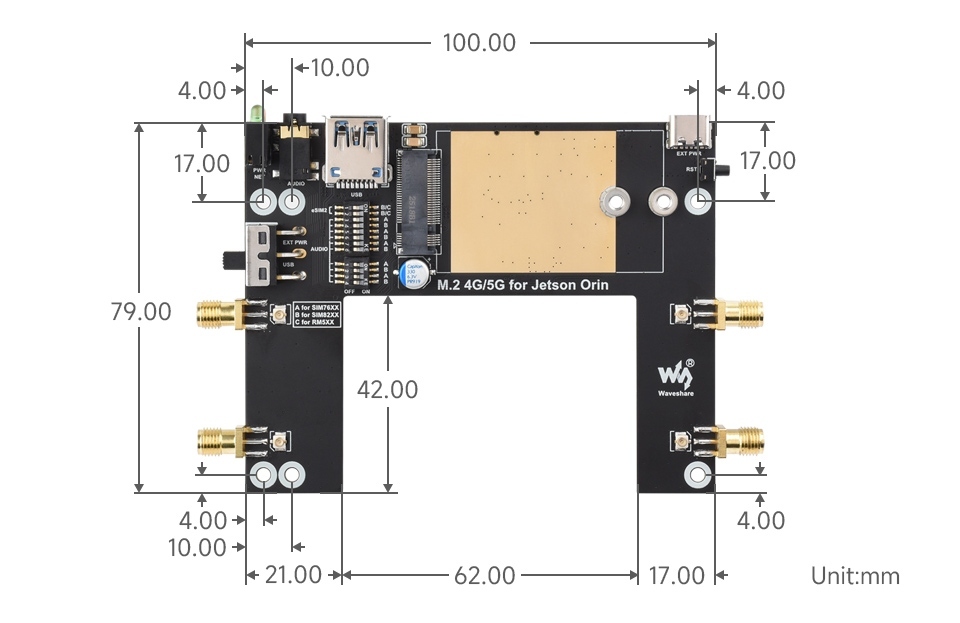

Dimensions
Package Content:
- Jetson Orin M.2 4G / 5G expansion boardx1
- SIM7600G-H-M.2x1
- 4G antennax2
- SMA protective cap (5PCS)x1
- IPEx1 to SMA adapter cable ~10cmx1
- IPEx1 to IPEX4 adapter cable ~5cm (2PCS)x1
- Screws packx1
- GPS External Antenna (C)x1
- Dual plug USB3.0 Type-A cablex1
- Heatsink x1
- USB 3.0 Adapter (C)x1
- Screwdriverx1
