4.3 Inch 480x272 COF TFT LCD Display 8MB Flash UART

DWIN

No reviews yet Write a Review
SKU:
353-DMG48270F043_05WN
MPN:
DMG48270F043_05WN
4.3 Inch 480x272 TFT LCD Display Touch Module – T5F0 ASIC with DGUS II HMI Platform
Quantity
Unit Price (ex. GST)
1 - 9
₹ 495.00
10 or above
₹ 475.20
4.3-inch 480x272 TFT LCD touch module with T5F0 ASIC, DGUS II HMI platform, 20-pin interface, SD card support, UART2, and compatibility with RTP/CTP panels. View full description
  • 100% Original Products
  • GST Invoice
  • Earn 3% Cashback
₹584.10 inc. GST
₹495.00 ex. GST

Technical Specifications

Brand:
DWIN
Display Size:
4.3 inch
Resolution:
480x272
Display Panel:
IPS
Touch Type:
Touch Module
View Angle:
70°/70°/40°/30°(L/R/U/D)
Display Area:
95.04mm (W)×53.86mm (H)
Power Supply:
HDL662SZ5 adapter board power supply
Brightness:
200nit
User Interface:
20Pin_0.5mm FCC
Flash:
8MB

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Resources:

Datasheet

4.3 Inch 480x272 TFT LCD Display Touch Module: Compact HMI Solution with DGUS II Platform

The 4.3-inch 480x272 TFT LCD Display Touch Module is a cost-effective and compact solution for HMI (Human-Machine Interface) applications. Powered by the T5F0 ASIC and running on the DGUS II HMI platform, it simplifies UI development and supports fast integration into embedded projects. With a 4.3-inch TFT screen offering 480x272 resolution and TV-TN-TFT technology, it delivers clear visuals for industrial, consumer, and IoT applications.

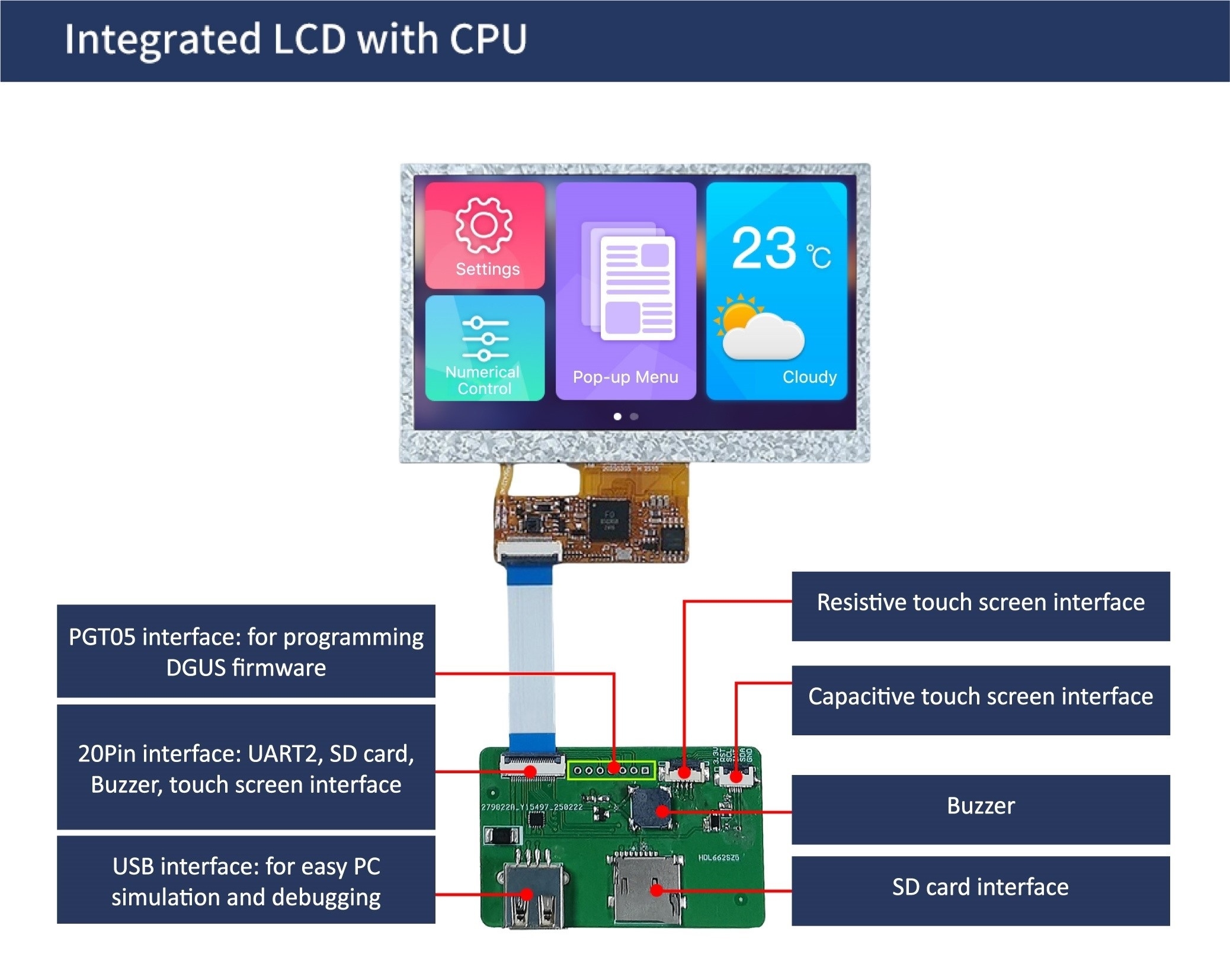

Equipped with a 20-pin interface, the module supports UART2, SD card expansion, buzzer, and touch panel connections. It is compatible with 4-wire resistive touch panels (RTP) or capacitive touch panels (CTP), and can also be paired with a buzzer or external speaker for audio feedback, making it highly versatile for compact interactive systems.

Key Features:

  • T5F0 ASIC Platform: Runs on DGUS II HMI for simple and efficient UI development.
  • Display Quality: 4.3-inch TFT LCD with 480×272 resolution using TV-TN-TFT technology.
  • 20-Pin Interface: Includes UART2, SD card slot, buzzer, and touch panel interface.
  • Touch Support: Works with 4-wire RTP or CTP touch panels.
  • Audio Support: Can connect to buzzer or external speaker for alerts/feedback.
  • Compact Design: Ideal for small-scale HMI panels, embedded controllers, and IoT devices.
