Name: 13.3inch 1920x1080 DCI-P3 FHD AMOLED Toughened Glass Panel Touch Display
Brand: Waveshare
SKU: 061-32785
Price: 26501.62 INR
Availability: InStock

Technical Specifications

Brand:

Waveshare

Display Size:

13.3 inch

Viewing angle:

178 Deg

Resolution:

1920x1080

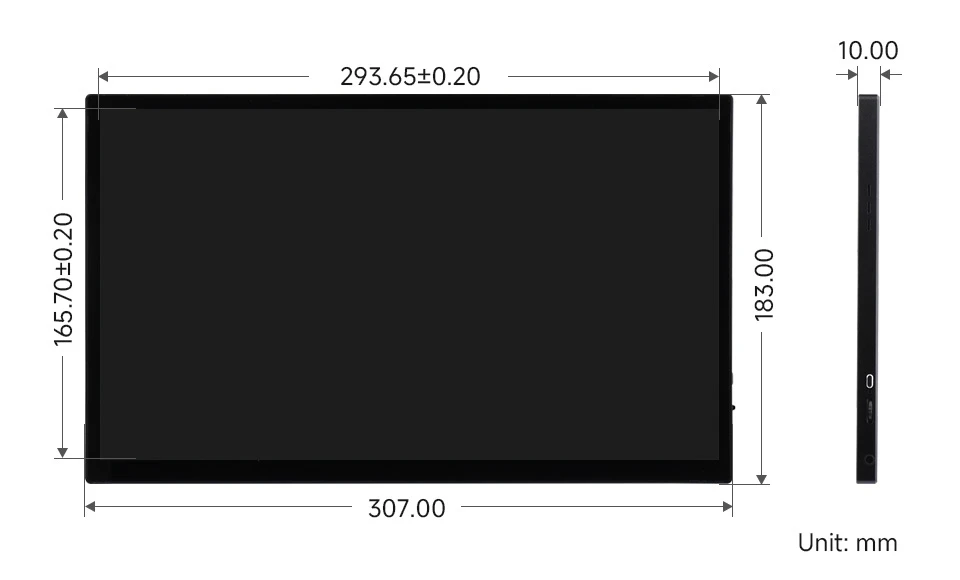

Overall Size:

307.00(H)x183.00(V)x10.00(D)mm

Display Area:

293.65(H)x165.70(V)mm

Pixel Pitch:

0.153(H)x0.153(V)mm

Color Gamut:

99%

Maximum Brightness:

300 cd/m2

Contrast:

100000:1

Refresh Rate:

60Hz

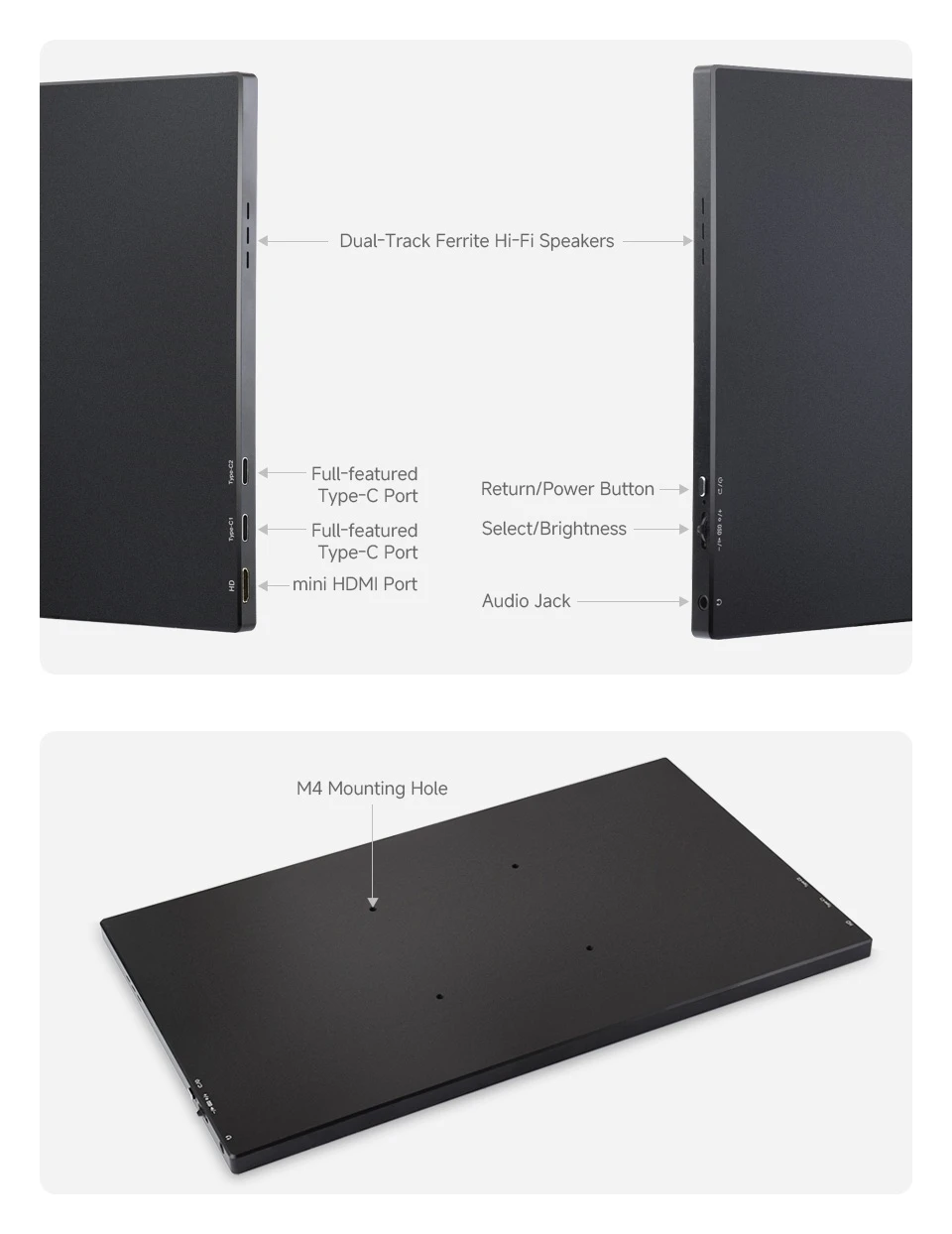

Display Interface:

mini HDMI / Type-C

Power Interface:

5V Power Supply

Weight:

676g

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Resources:
Wiki: www.waveshare.com/wiki/13.3inch_FHD_AMOLED

13.3 Inch FHD AMOLED Touch Display with 1920x1080 Resolution, DCI-P3 Colour and Toughened Glass Protection

The 13.3-inch FHD AMOLED touch display is a premium visual solution designed for high-performance embedded systems, portable devices, and interactive applications. With a Full HD resolution of 1920x1080, this panel delivers sharp visuals, deep blacks, and vibrant colours enhanced by wide DCI-P3 colour gamut coverage. The AMOLED technology ensures superior contrast ratios and energy efficiency, making it ideal for applications such as smart displays, industrial HMIs, multimedia systems, and advanced prototyping platforms.

Engineered for durability and user interaction, this display features a responsive touch interface protected by toughened glass, ensuring resistance against scratches and impact. Its slim and modern design allows seamless integration into compact systems while maintaining excellent visual clarity and touch responsiveness. Suitable for Raspberry Pi, embedded boards, and custom display solutions, this AMOLED panel offers a reliable and immersive user experience for both industrial and consumer applications.

Key Features

13.3 Inch AMOLED Panel: High contrast with deep blacks and vivid colours
Full HD Resolution: 1920x1080 for sharp and detailed visuals
DCI-P3 Colour Gamut: Wide colour range for accurate and vibrant display output
Touchscreen Interface: Smooth and responsive touch interaction
Toughened Glass Protection: Enhanced durability against scratches and impact
Slim Form Factor: Ideal for compact and embedded designs
Wide Viewing Angles: Consistent image quality from multiple perspectives
Energy Efficient Display: Lower power consumption compared to traditional LCDs

Package Content:

13.3inch FHD AMOLEDx1
5V 3A power adapterx1
Mini HDMI to HDMI cable ~1.5mx1
Mini HDMI to Micro HDMI cable ~1mx1
USB Type-A to USB Type-C cable ~1mx1
USB Type-C dual plug cable ~1mx1

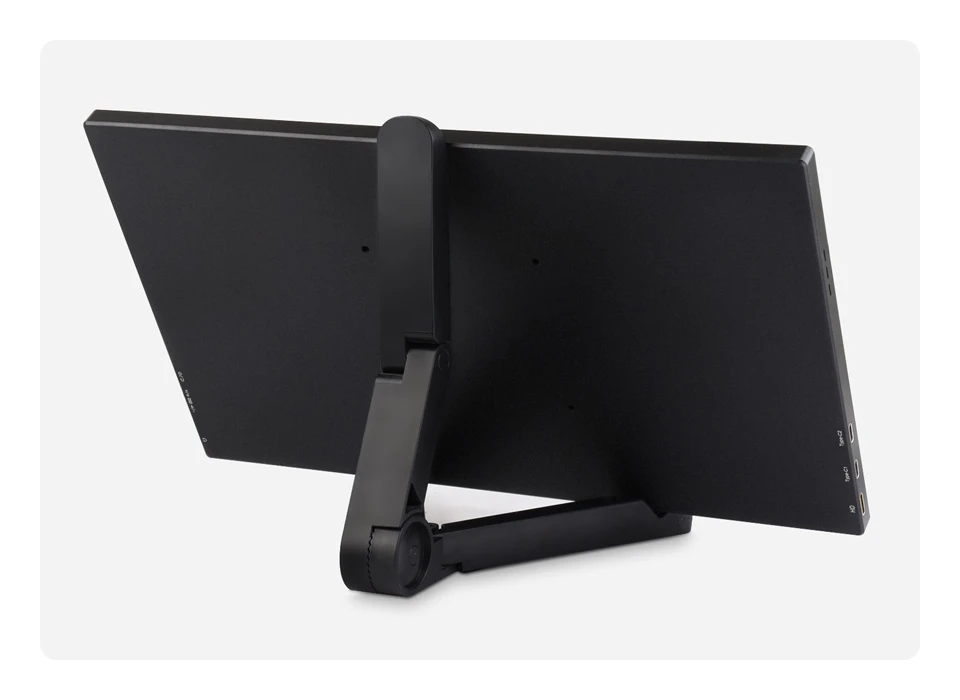

Triangular standx1
Cleaning clothx1

Connection Examples

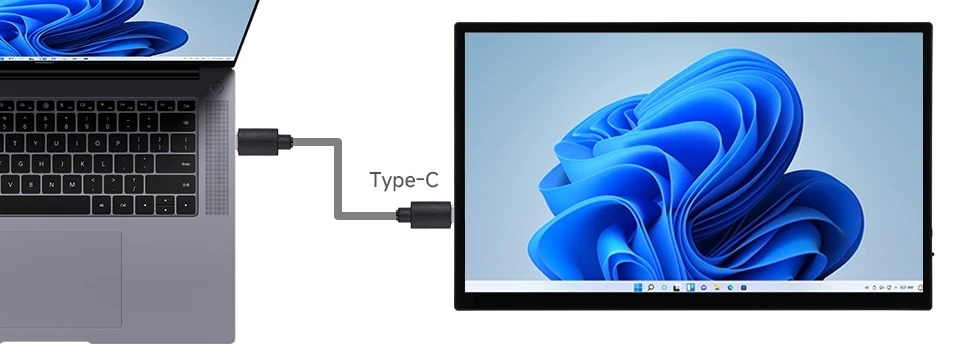

Working With PC

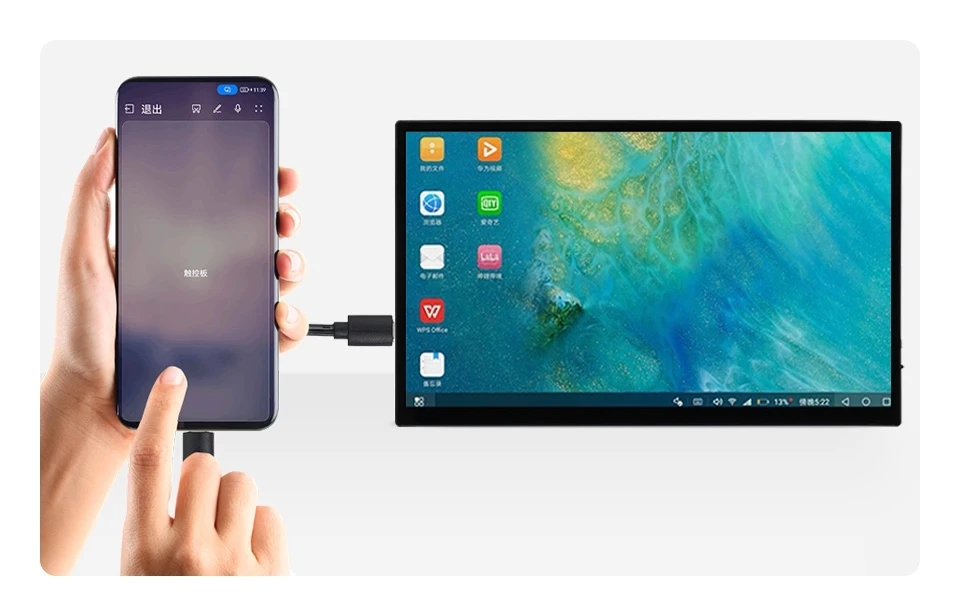

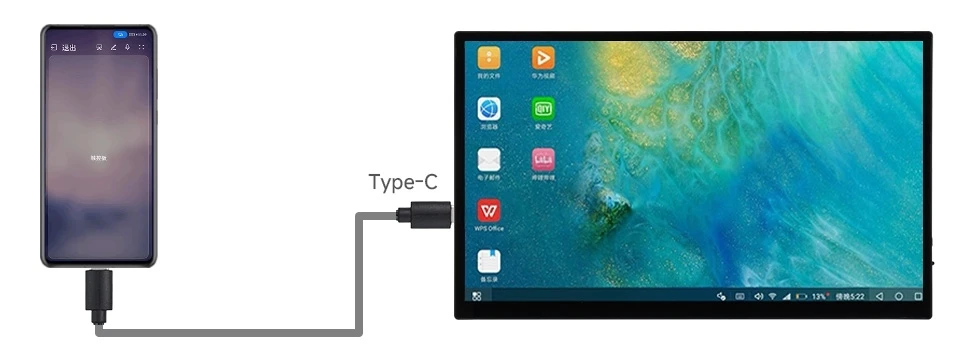

Working With Smartphone

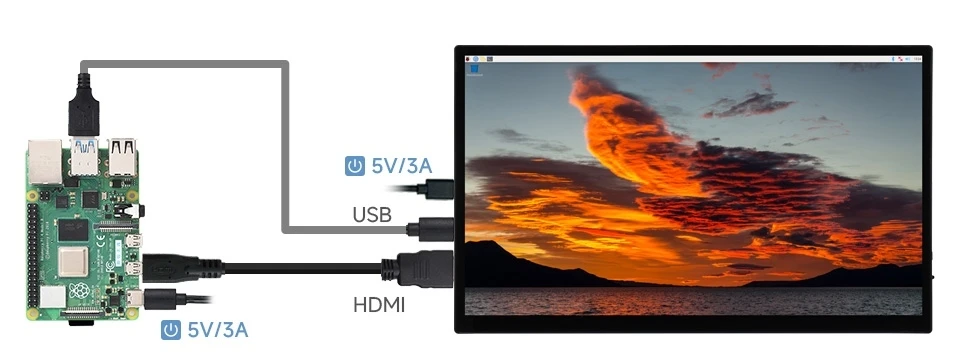

Working With Raspberry Pi 5 / 4B

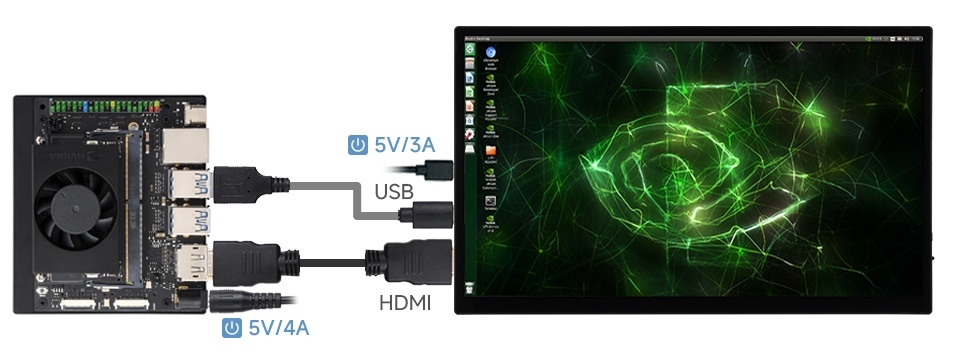

Working With Jetson Nano

Note:

For reference only, the above controller boards or hosts are NOT included
Please make sure that the smartphone or PC itself features a full-featured Type-C interface

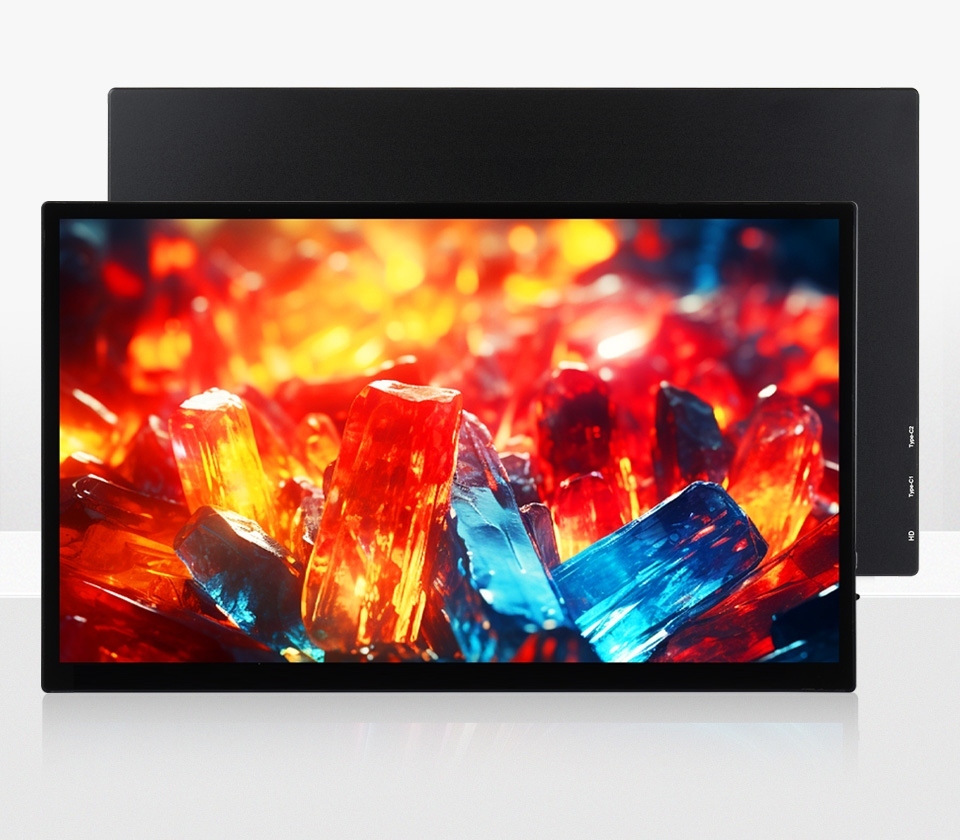

AMOLED Display Panel

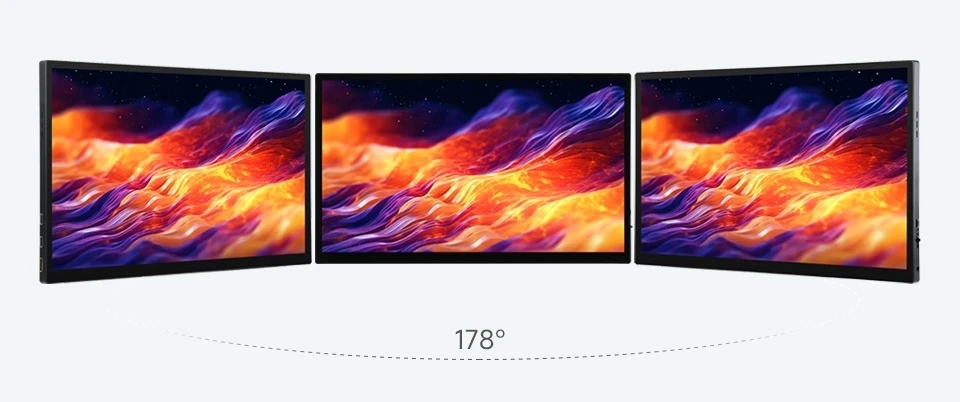

Excellent Display Performance With 178 Wide Viewing Angle

Brighter Highlight, Darker Shadow

The AMOLED, in contrast to a standard LCD, has active emissive technology, which allows each pixel to light up independently to provide a brighter highlight or true black shadow that is almost identical to 0nit pure black.
