13.3inch 1920x1080 Capacitive Touch Type-C/HDMI Display, Toughened Glass

Resources:

Wiki: www.waveshare.com/wiki/13.3inch-FHD-Monitor

Full HD Capacitive Touch Display With Type C HDMI Connectivity And Toughened Glass For Embedded Systems And Desktop Use

This 13.3 inch capacitive touch display is designed for users who need a compact Full HD screen with responsive touch control and flexible connectivity. With a 1920 x 1080 IPS panel, it delivers sharp visuals, wide viewing angles, and clear colour reproduction, making it suitable for embedded projects, industrial interfaces, Raspberry Pi applications, kiosks, and secondary monitor setups. The toughened glass front improves durability for regular use, while the full metal back cover adds structural strength for professional installations.

The display supports both Type C and HDMI input, giving it strong compatibility across single board computers and standard desktop systems. The 10 point capacitive touch function enables smooth and accurate interaction for control panels, HMI systems, educational devices, and portable development setups. Support for Raspberry Pi OS, Ubuntu, Kali, Retropie, and Windows platforms makes it a practical choice for developers, engineers, and system integrators looking for a reliable touch display with audio output and on screen adjustment controls.

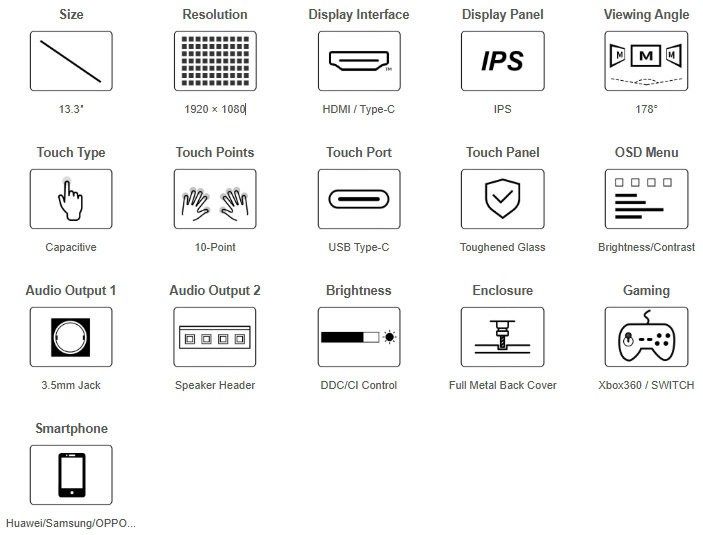

Features

• Full HD IPS Panel
  13.3 inch IPS screen with 1920 x 1080 resolution for sharp image quality and wide viewing angles
• Capacitive Multi Touch Support
  10 point touch capability enables smooth and accurate touch response for interactive applications
• Toughened Glass Protection
  6H hardness glass panel helps improve surface durability and resistance during regular operation
• Type C And HDMI Interface
  Dual interface design supports easy connection with Raspberry Pi, PCs, laptops, and embedded systems
• Wide Operating System Compatibility
  Supports Raspberry Pi OS, Ubuntu, Kali, Retropie, and Windows 11, 10, 8.1, 8, 7
• On Screen Display Controls
  Multi language OSD menu supports brightness, contrast, and backlight adjustment for convenient setup
• Integrated Audio Support
  Supports HDMI audio output along with 3.5 mm headphone jack and 4 pin speaker output
• Metal Back Cover Design
  Full metal rear housing adds strength and improves suitability for industrial and development environments

Package Includes:

1. 13.3inch FHD Monitor x 1
2. 5V 3A Type-C power supply x 1
3. Type-C dual-plug cable ~1m x 1
4. HDMI flat cable ~1m x 1
5. USB Type-A to USB Type-C cable ~1m x 1
6. Cleaning cloth x 1
7. Micro HDMI adapter x 1
8. HDMI adapter x 1
9. Button board x 1
10. 3PIN cable x 1
11. HDMI to Micro HDMI adapter x 1
12. HDMI-Cable-200mm (2PCS) x 1
13. 1.27H 4PIN button board cable x 1
14. USB Type-A to PH1.25 4P cable x 1
15. Screws pack x 1

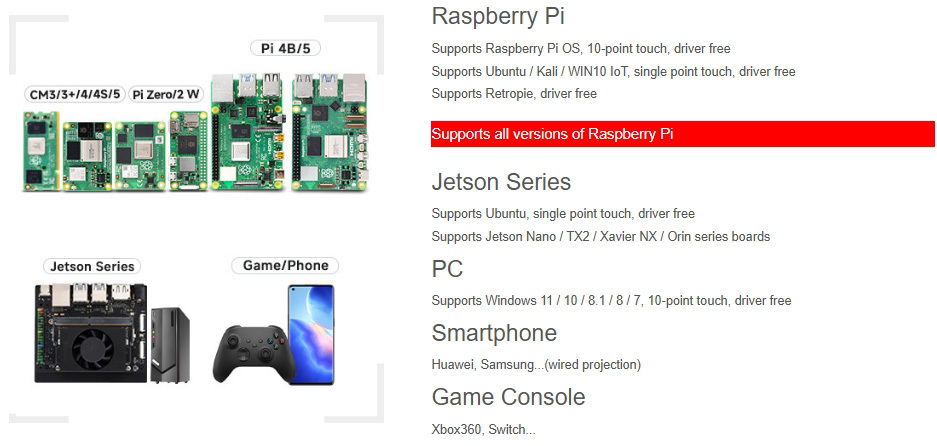

Device & System Support

Connection Examples

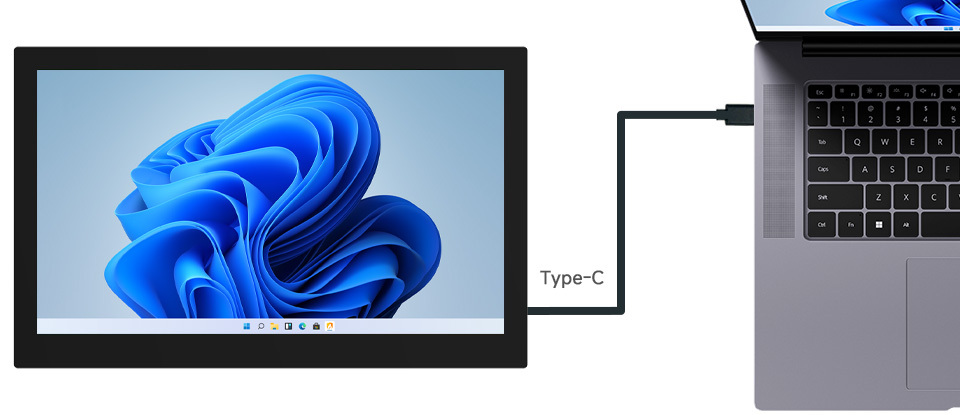

Working with Full-Featured Type-C PC

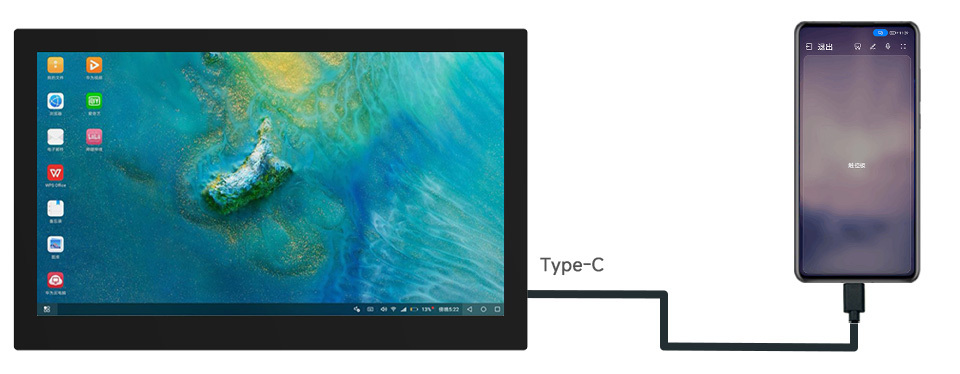

Working with Full-Featured Type-C Smartphone

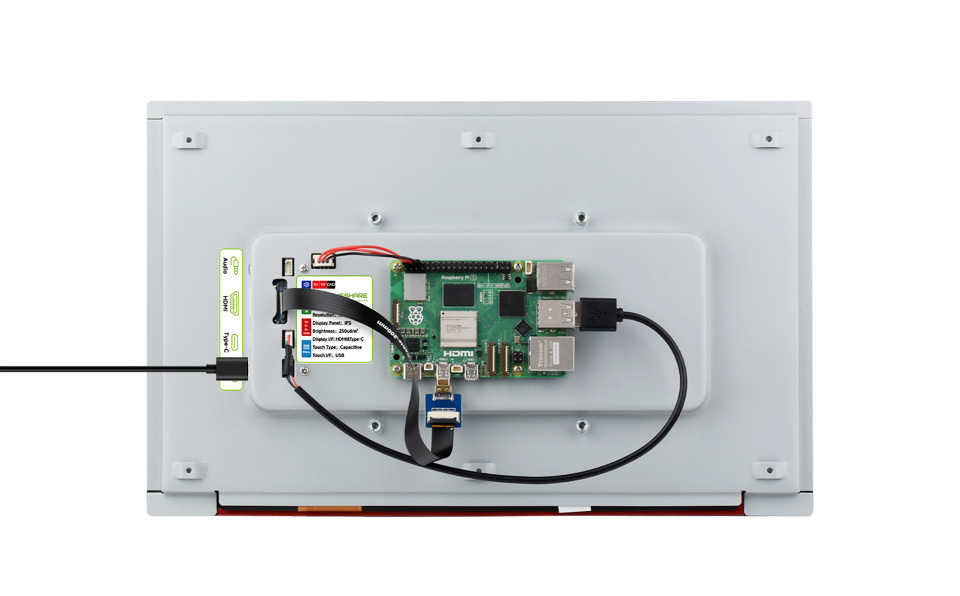

Working with Raspberry Pi 5 / 4B / 3B+

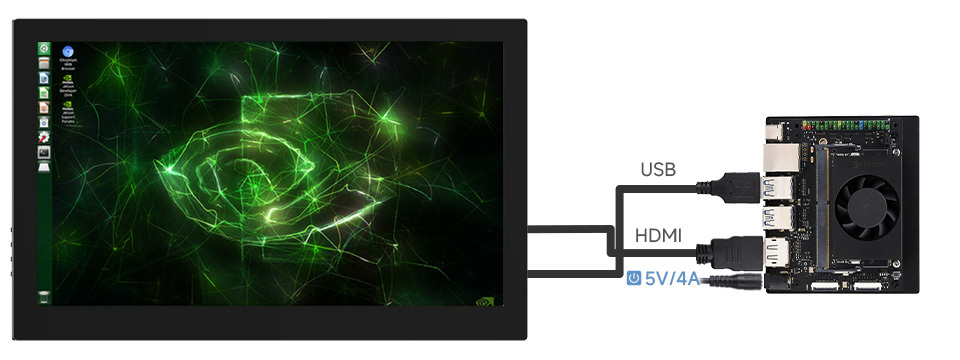

Working with Jetson series board

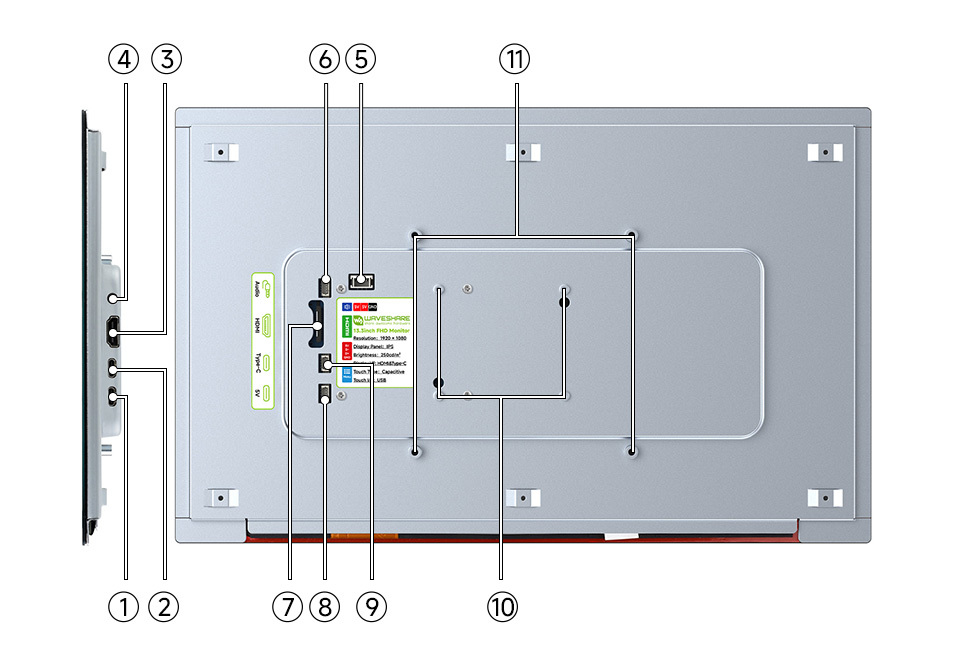

Interface Introduction
