Resources:
Wiki: www.waveshare.com/wiki/0.96inch_RGB_OLED_Module

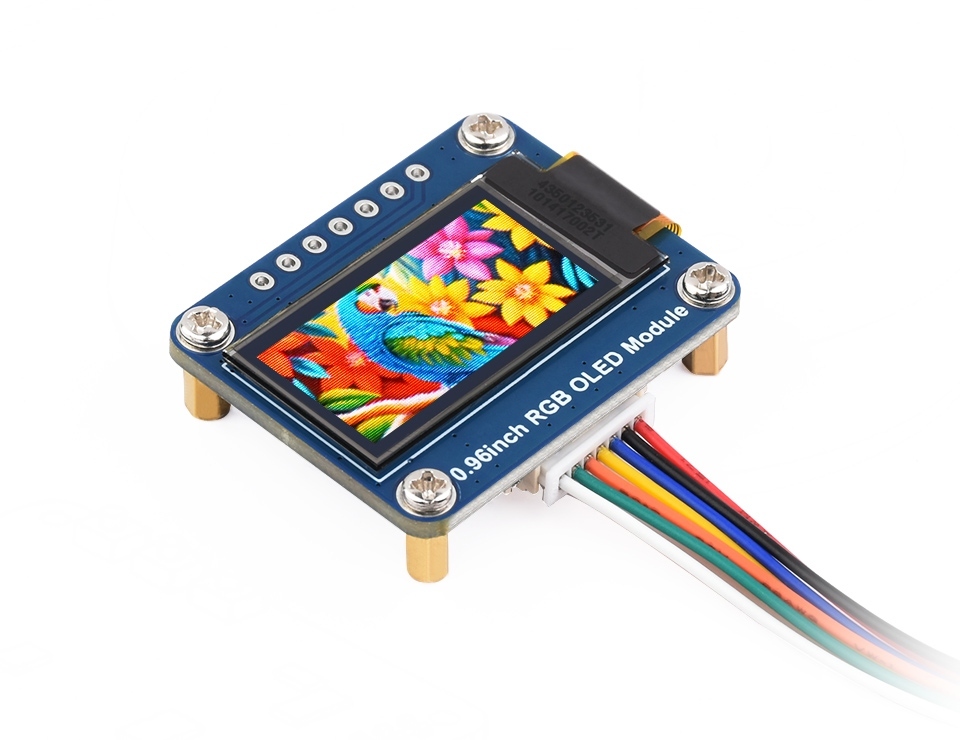

0.96 Inch RGB OLED Display Module with 64x128 Resolution and SPI Interface
The 0.96 Inch RGB OLED Display Module is a compact, full-color display designed for embedded systems, portable electronics, and IoT applications. Featuring a 64 × 128 pixel OLED panel capable of displaying up to 65K colors, it delivers bright, high-contrast visuals with excellent color reproduction for icons, graphics, text, and user interfaces. The OLED technology provides self-emissive pixels, ensuring sharp images, fast response times, and wide viewing angles without requiring a backlight.
The module communicates through an SPI interface, significantly reducing the number of GPIO pins required for integration while enabling high-speed display updates. With available development resources and example code for Raspberry Pi, Arduino, and STM32 platforms, it offers a straightforward solution for prototyping and product development. Its compact form factor makes it ideal for wearable devices, instrumentation, consumer electronics, robotics, and embedded control systems.
Key Features
- 0.96 Inch RGB OLED Display: Compact OLED panel for embedded and portable applications.
- 64 x 128 Resolution: Displays clear text, graphics, and icons with sharp image quality.
- 65K Color Display: Supports vibrant full-color output for enhanced visual presentation.
- OLED Technology: Self-emissive display delivers high contrast, fast response, and excellent viewing angles.
- SPI Interface: High-speed communication while minimising the number of required GPIO pins.
- Compact Design: Suitable for space-constrained electronic projects.
- Development Resources: Includes example code and documentation for Raspberry Pi, Arduino, and STM32.
- Easy Integration: Compatible with a wide range of microcontrollers and embedded platforms.
- Low Power Consumption: Well-suited for portable and battery-powered devices.
Applications
- Embedded systems
- IoT devices
- Arduino projects
- Raspberry Pi applications
- STM32 development
- Wearable electronics
- Portable instruments
- Robotics
- Consumer electronics
- Human-machine interfaces (HMI)
- Educational and prototyping projects
0.96inch OLED Display Module
Embedded SSD1357 driver chip, SPI Communication

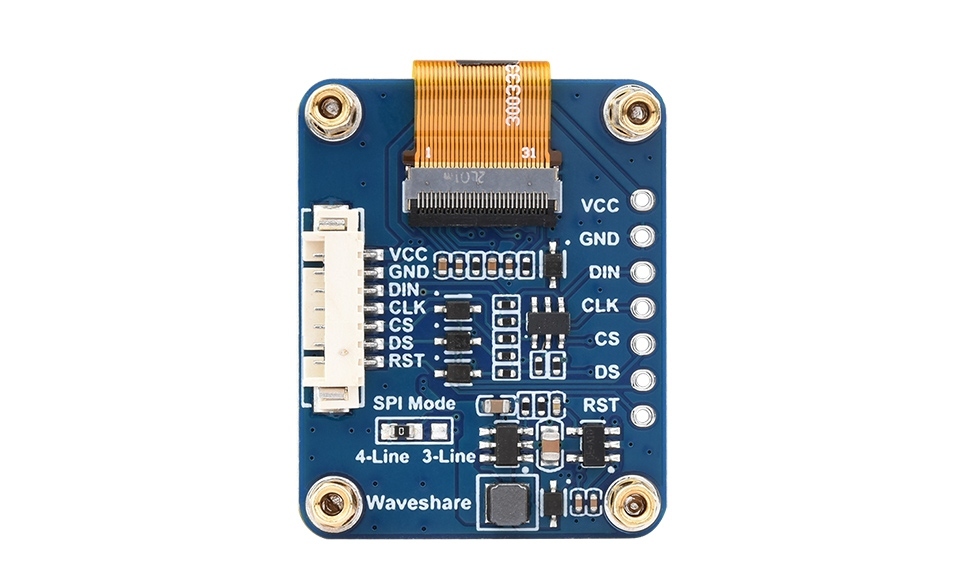

Control Interface
| VCC |
Power (3.3V / 5V input) |
| GND |
Ground |
| DIN |
SPI data input |
| CLK |
SPI clock input |
| CS |
Chip selection, low active |
| DC |
Data/Command selection (high for data, low for command) |
| RST |
Reset, low active |
Hardware Connection

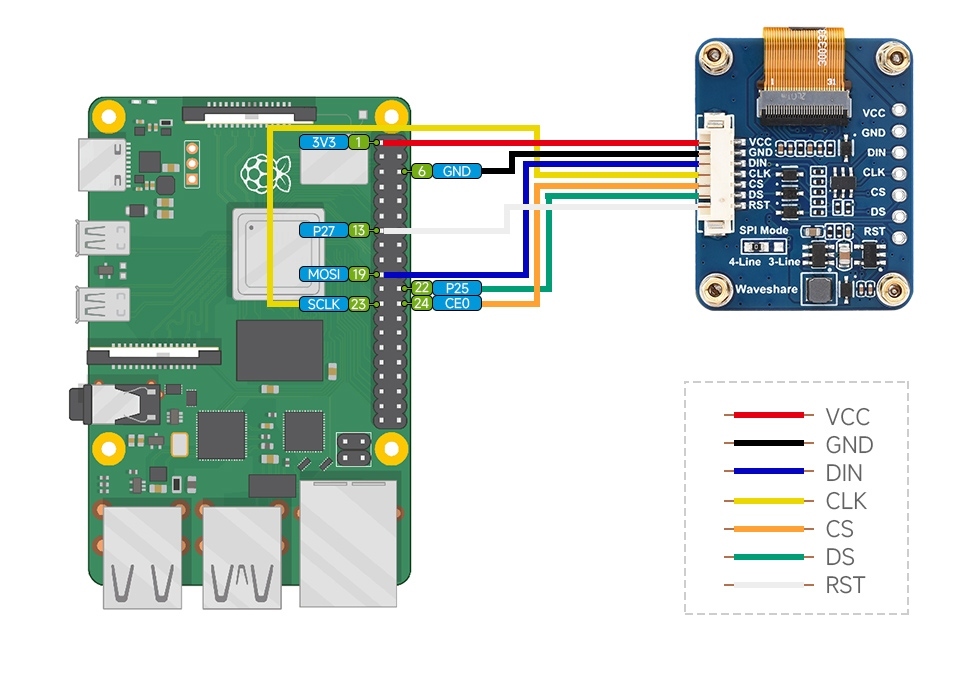

Connecting with Raspberry Pi

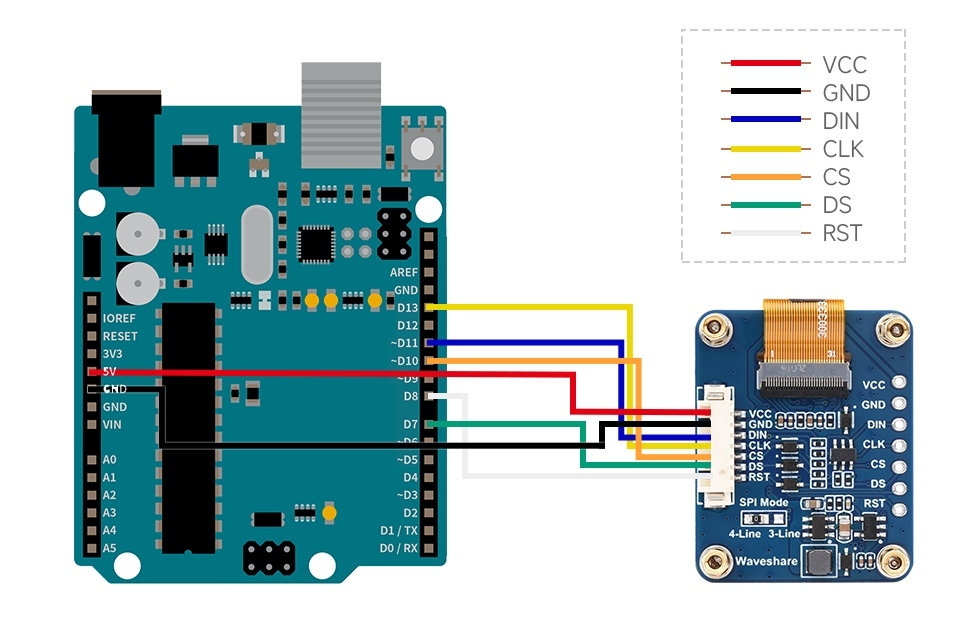

Connecting with Arduino board

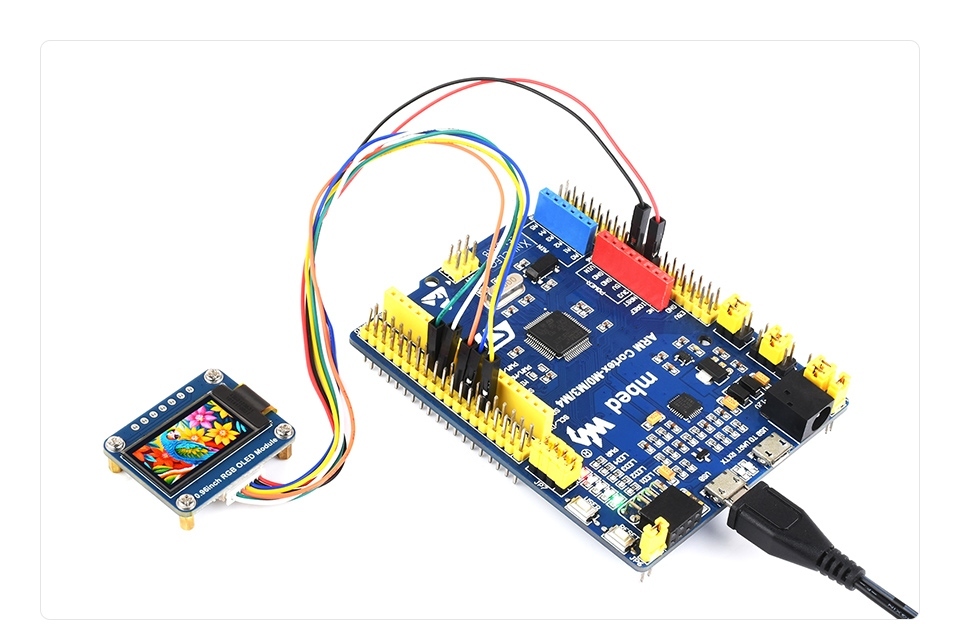

Usage Example
Note: For reference only, the STM32 board is NOT included.

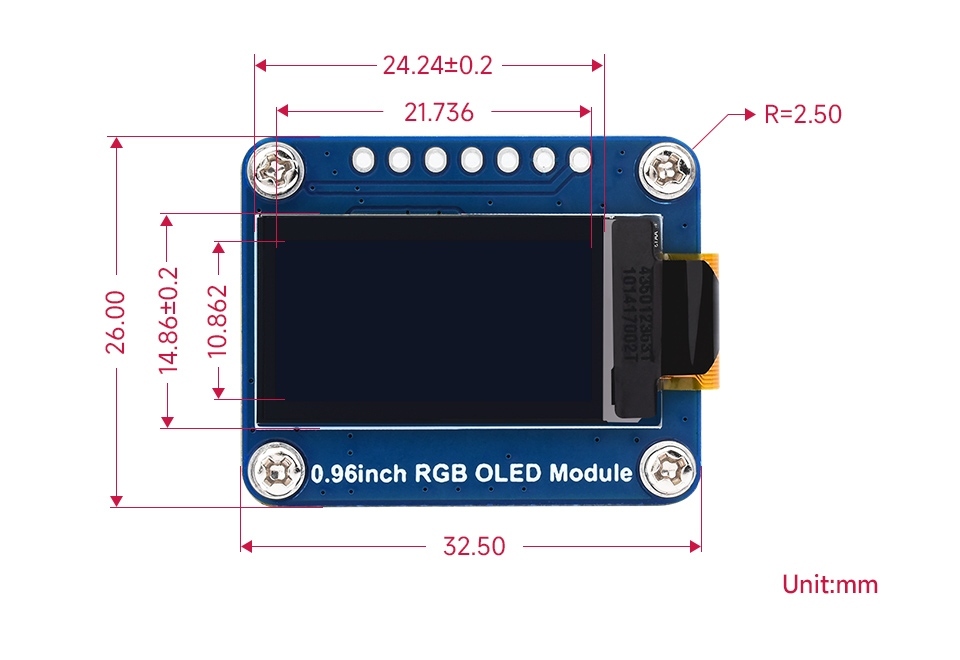

Dimensions
Package Includes:
- 0.96inch RGB OLED Module x1
- MX1.25 7PIN cable x1
