USB-to-UART Debugger Module for Raspberry Pi 5 with Type-A USB Port and Onboard UART Connector
The USB-to-UART Debugger Module for Raspberry Pi 5 is a compact debugging accessory designed to simplify serial communication, system diagnostics, and firmware development. Featuring a standard USB Type-A interface and an onboard UART connector, the module provides a reliable bridge between a host computer and the Raspberry Pi 5 UART interface. It enables direct access to the serial console, making it ideal for boot diagnostics, system configuration, kernel debugging, and headless operation without requiring a monitor or keyboard.
Designed for developers, system integrators, and embedded engineers, the module offers plug-and-play connectivity for Windows, Linux, and macOS systems. Its compact form factor and dedicated UART connection make it an essential tool for Raspberry Pi 5 development, embedded Linux debugging, automation projects, and industrial applications where dependable serial communication is required.
Key Features
- Designed for Raspberry Pi 5: Provides convenient UART debugging and serial console access.
- USB Type-A Interface: Connects directly to a host PC or laptop through a standard USB port.
- Dedicated UART Connector: Enables reliable communication with the Raspberry Pi 5 UART interface.
- Serial Console Access: Supports boot logging, system configuration, and command-line debugging.
- Plug-and-Play Operation: Compatible with Windows, Linux, and macOS.
- Compact Design: Small form factor for portable development and debugging.
- Stable Serial Communication: Suitable for firmware development, diagnostics, and embedded applications.
- Easy Integration: Simplifies Raspberry Pi 5 development and troubleshooting.
- Reliable Debugging Tool: Ideal for headless Raspberry Pi installations and embedded Linux systems.
Applications
- Raspberry Pi 5 debugging
- Serial console access
- Embedded Linux development
- Firmware programming
- System diagnostics
- Headless Raspberry Pi setup
- Boot log monitoring
- Industrial automation
- IoT device development
- Educational and research projects
UART Debugger Module for Raspberry Pi 5
Designed for Raspberry Pi 5

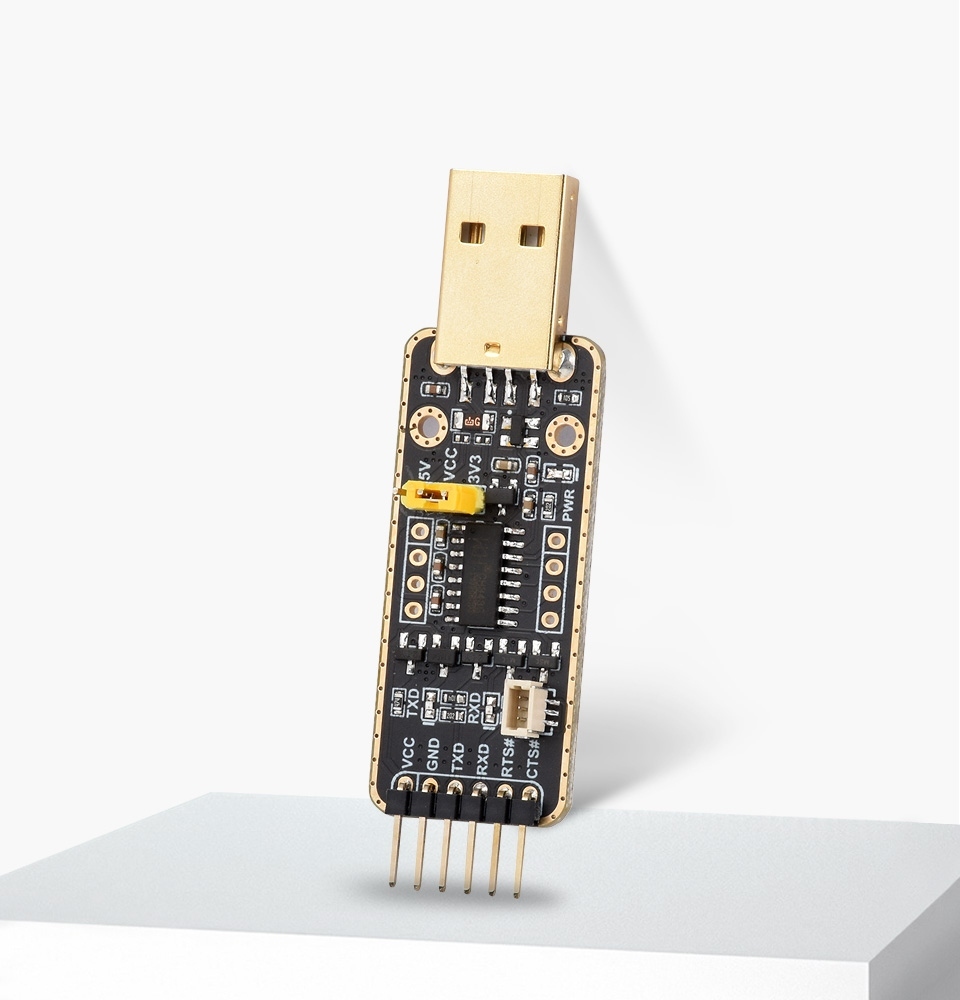

Stable transmission | Multi-device applicable | Multi-system compatible
Pi5 UART debugging

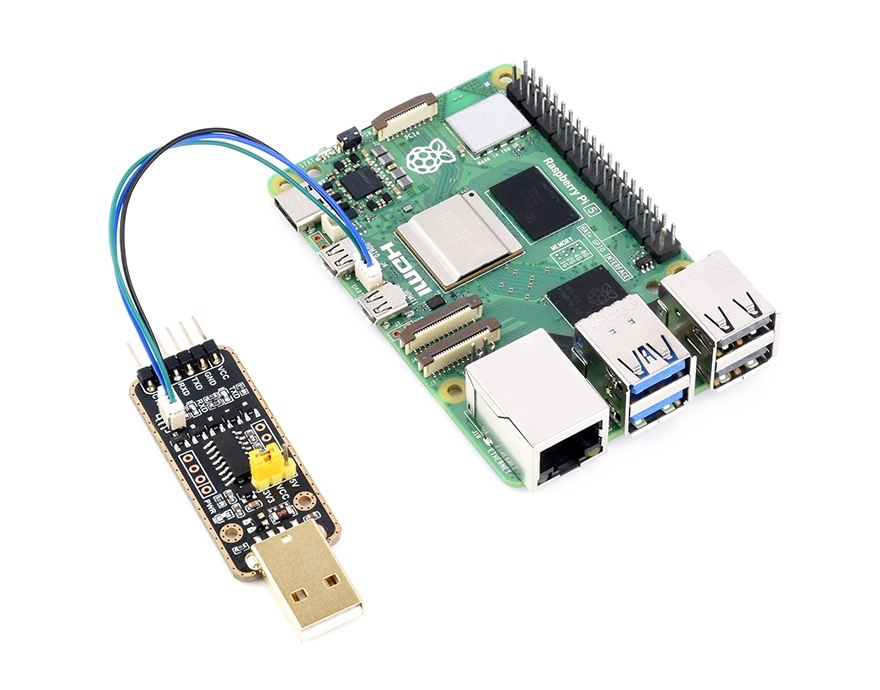

Suitable for Raspberry Pi 5, supports multiple Connection Methods
Multiple Protection Circuits, Safe And Stable

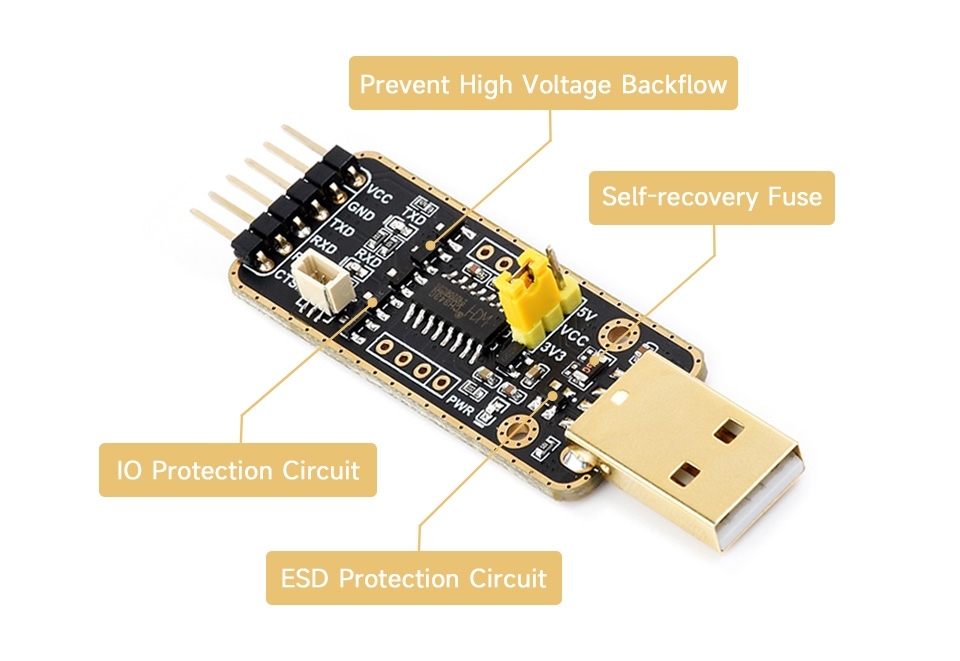

Onboard Self-recovery fuse And Transient Voltage Suppressor, Prevents Overcurrent And Overvoltage, improves shockproof performance; Onboard IO Protection Circuit, anti-surge, Anti-Static, Stable And Safe Communication Performance
Interface
Pinouts
| VCC |
5V or 3.3V output for external device (configured by jumper) |
| GND |
Ground |
| TXD |
Connects to MCU.RXD |
| RXD |
Connects to MCU.TXD |
| RTS# |
Connects to MCU.CTS |
| CTS# |
Connects to MCU.RTS |

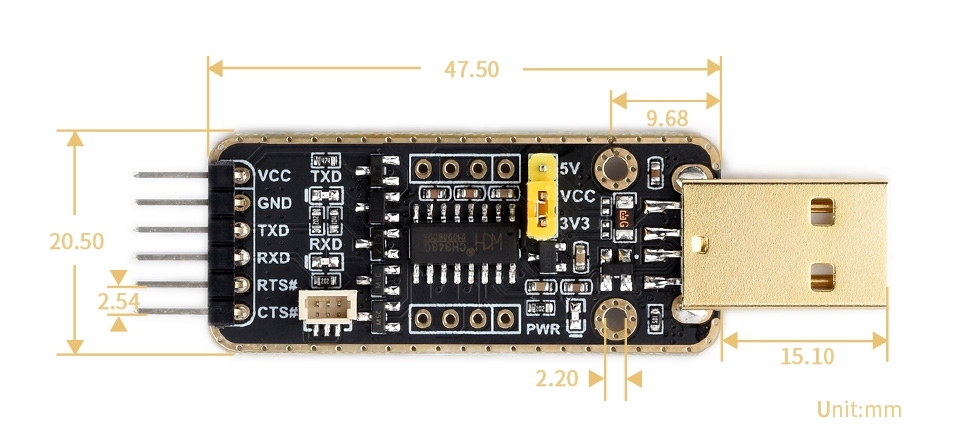

Dimensions
Package Content:
- Pi UART Debugger x1
- 6-pin squid cable x1
- SH1.0 connector to 3PIN cable ~100mm x1
- Dual SH1.0 connector 3PIN cable ~100mm x1
