TF02-Pro-W LiDAR Module IP5X 25m Level Detection ToF Sensor

Benewake

No reviews yet Write a Review
SKU:
111-TF02-Pro-W
Manufacturer Part Number:
TF02-Pro-W
₹10,997.60 inc. GST
₹9,320.00 ex. GST
TF02-Pro-W - TF02-Pro-W LiDAR Module IP5X 25m Level Detection Sensor - Benewake
The TF02-Pro-W LiDAR Module: A rugged IP5X rated sensor for reliable level detection up to 25 meters. View full description
₹10,997.60 inc. GST
₹9,320.00 ex. GST

Description

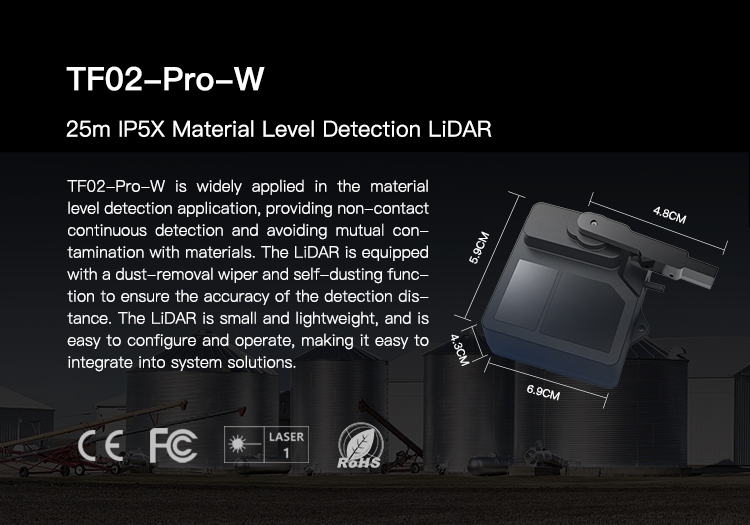

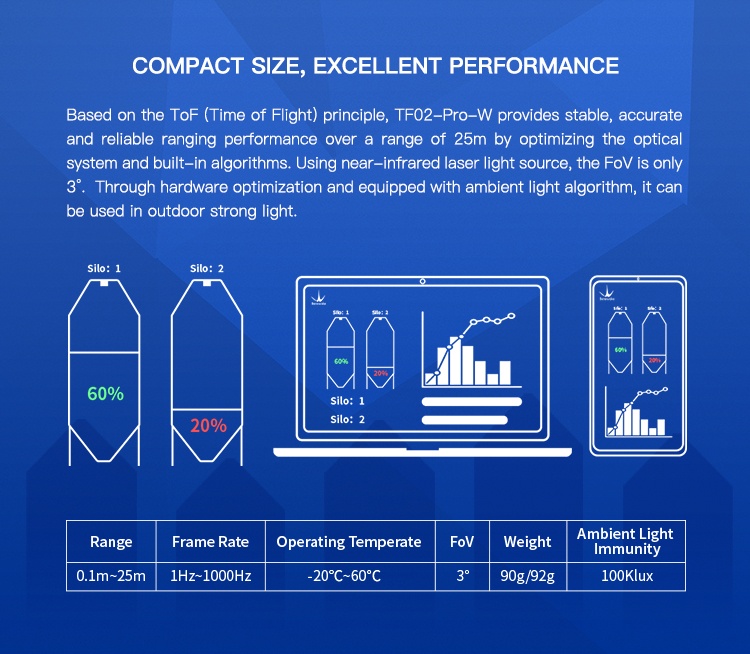

The TF02-Pro-W LiDAR Module IP5X 25m Level Detection Sensor is designed for accurate level detection. It comes with a special dust-removal wiper that cleans the lens automatically, ensuring optimal performance. Utilizing the ToF (Time of Flight) principle, the sensor offers stable and reliable ranging within a high range of up to 25 meters. Operating at a high frame rate of up to 1000Hz, it achieves precise results while keeping power consumption low. The product is compact, with dimensions of 85mmX59mmX43mm, making it versatile for various applications. It is housed in an IP5X enclosure, providing durability and protection against dust, ensuring a long-lasting and efficient performance.

Features
  • High range up to 25 meter
  • High frame rate (Up to 1000Hz)
  • Low power consumption
  • Self-cleaning function

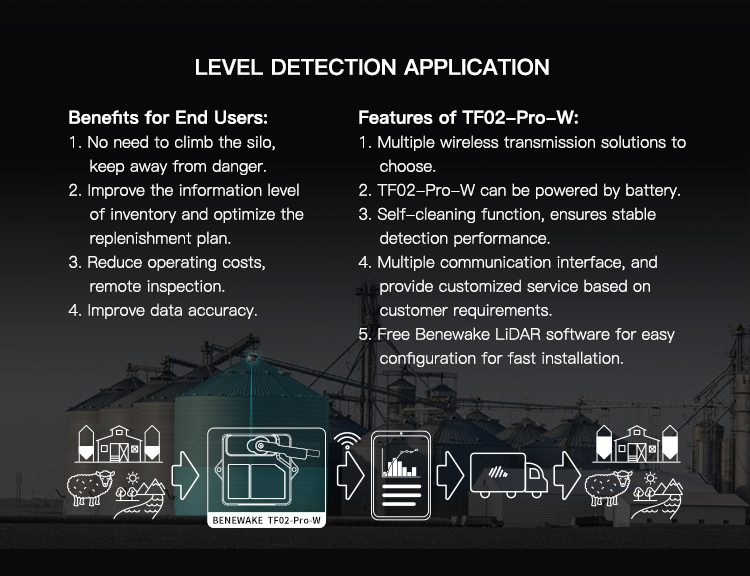

  • Level Detection
  • Dimension (LXHXW) 85mmX59mmX43mm
  • IP5X Enclosure
Resources

Technical Specifications

Brand:
Benewake
Operating Range:
0.1m~25m
Accuracy:
6cm@ (0.1-6m), 1%@ (6m-25m)
Measurement Unit:
cm (Default)
Range Resolution:
1cm
Frame Rate:
1~1000 Hz ( adjustable )
Operating Voltage:
5V
FOV:
3 Deg
Dimension:
85x59x43mm
Communication Interface:
UART/I2C

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.
