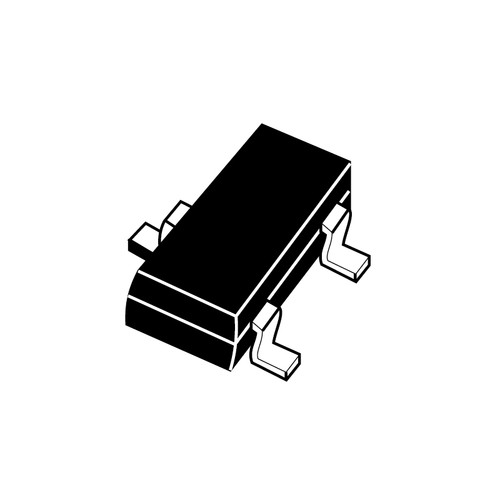

Name: SS30AT - Magnetic Switch Bipolar Hall Effect Sensor SOT-23-3
Brand: Honeywell
SKU: 048-SS30AT
Price: 57.24 INR
Availability: InStock

Technical Specifications

Brand:

Honeywell

Case/Package:

SOT-23-3

Mount:

Surface Mount

Number of Pins:

Current Rating:

11.3 mA

Max Operating Temperature:

125 C

Max Output Current:

20 mA

Max Supply Voltage:

24 V

Min Operating Temperature:

-40 C

Min Supply Voltage:

4.5 V

Nominal Supply Current:

6.5 mA

Number of Contacts:

Operating Supply Current:

11.3 mA

Operating Supply Voltage:

12 V

Output Current:

20 mA

Output Type:

ANALOG

Output Voltage:

400 mV

Response Time:

500 ns

Sensing Method:

Hall Effect

Termination:

SMD/SMT

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Resources:
Datasheet

Bipolar Hall Effect Magnetic Switch Sensor In SOT-23-3 Package For Position And Speed Detection

The SS30AT Magnetic Switch Bipolar Hall Effect Sensor is a compact magnetic sensing IC designed for reliable contactless switching and magnetic field detection applications. Using Hall-effect sensing technology, this bipolar sensor responds to alternating north and south magnetic poles, making it suitable for rotational sensing, speed detection, and magnetic position monitoring systems. Its compact SOT-23-3 package enables easy integration into space-constrained embedded designs, industrial electronics, and portable devices.

The SS30AT provides stable digital magnetic switching performance for motor control, automation systems, and embedded-system applications. Its contactless sensing operation eliminates mechanical wear and improves operational reliability compared to conventional mechanical switches. The compact surface-mount design supports modern PCB layouts while enabling accurate magnetic detection in industrial, consumer, and automotive electronic applications.

Key Features

Bipolar Magnetic Detection: Detects alternating north and south magnetic poles for reliable switching operation.
Hall Effect Sensing Technology: Accurate contactless magnetic field detection for embedded applications.
Compact SOT-23-3 Package: Small surface-mount package suitable for compact PCB layouts.
Digital Magnetic Switching: Stable ON OFF output for magnetic sensing applications.
Fast Magnetic Response: Suitable for speed sensing and rotational detection systems.
Contactless Operation: Eliminates mechanical wear for improved durability and operational life.
Reliable Embedded Integration: Compatible with microcontrollers and digital logic systems.
Compact Embedded Design: Suitable for portable electronics and industrial devices.
Stable Switching Performance: Reliable operation across varying environmental conditions.
