SparkFun 2D Barcode Scanner Breakout v2 With Global-Shutter Imaging And USB-C Connectivity
The SparkFun 2D Barcode Scanner Breakout v2 integrates the DYscan DE2290D scanning module with advanced CMOS image recognition and a 300,000-pixel global-shutter camera. It can identify and decode more than 30 different 1D and 2D barcode formats, including UPC, EAN, QR Code, Data Matrix, and Aztec. With a reading precision of 3 mil or 0.076 mm, the scanner is suitable for product identification, inventory systems, access control, embedded kiosks, and automated data-entry applications.
The scanner automatically adjusts its illumination brightness according to the distance from the target, supporting reliable reading from printed labels, product packaging, and digital screens. A white illumination LED improves scene visibility, while a red LED projects an aiming line for accurate alignment. USB-C provides plug-and-play operation with keyboard, HID, and serial communication, while the 5-pin header offers direct access to TTL serial, power, and trigger connections for Arduino, Raspberry Pi, and other embedded systems.
Key Features
- DYscan DE2290D Module: Integrates a capable barcode-decoding module with onboard image processing.
- 300,000-Pixel Camera: Uses a global-shutter CMOS image sensor for accurate barcode capture.
- 1D and 2D Decoding: Supports more than 30 barcode symbologies for broad application compatibility.
- 3 Mil Reading Precision: Detects barcode elements as small as 3 mil or 0.076 mm under suitable conditions.
- Universal Barcode Support: Reads common formats including UPC, EAN, QR Code, Data Matrix, and Aztec.
- Printed and Digital Scanning: Decodes barcodes from paper labels, product packaging, and electronic displays.
- Automatic Illumination Control: Adjusts lighting brightness according to the distance between the scanner and target.
- White Illumination LED: Lights the scanning area to improve barcode visibility.
- Red Aiming Line: Provides clear visual alignment for accurate target positioning.
- Onboard Buzzer: Delivers immediate audible confirmation after a successful scan.
- Status LED: Provides visual feedback during scanning and successful decoding.
- USB-C Connectivity: Supports convenient connection to desktop computers and compatible host systems.
- Multiple USB Protocols: Can enumerate keyboard, HID, and CDC serial communication simultaneously.
- Virtual COM Port: CDC serial support allows the scanner to appear as a standard COM port on a computer.
- 5-Pin Embedded Header: Provides direct access to TTL serial, power, and trigger connections.
- Multiple Working Modes: Supports Manual, Auto Sense, Continuous, and Command-controlled operation.
- Flexible Configuration: Settings can be changed through the serial interface or by scanning configuration barcodes.
- Microcontroller Integration: Suitable for Arduino, Raspberry Pi, and other embedded development platforms.
Applications
- Retail point-of-sale systems
- Inventory and warehouse management
- Product identification equipment
- Self-service kiosks
- Access-control systems
- Ticket and membership verification
- Industrial tracking systems
- Automated data-entry terminals
- Embedded barcode readers

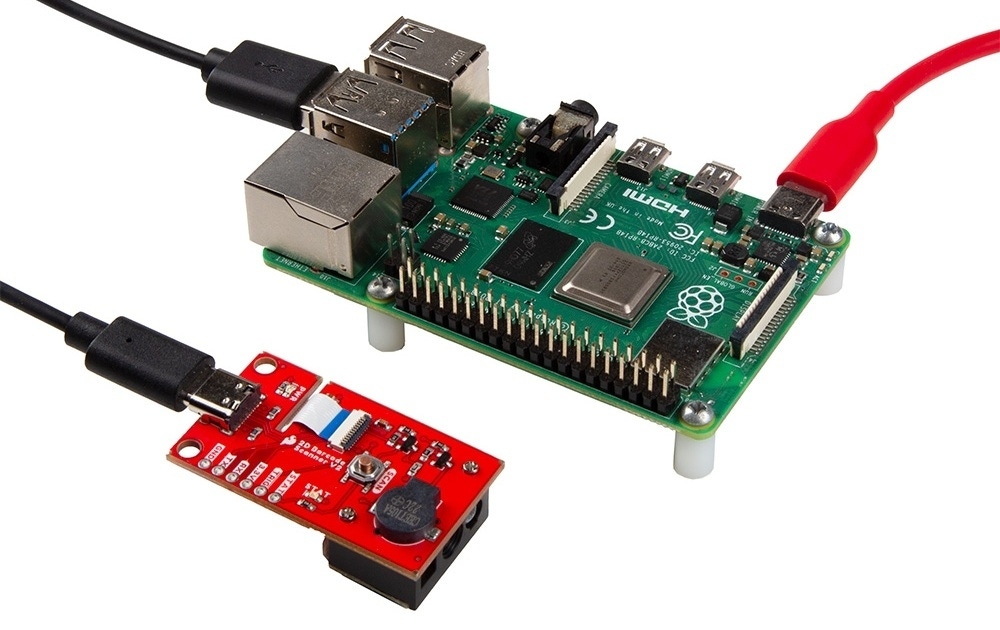

- Arduino and Raspberry Pi projects
- Packaging and logistics systems
- Digital-screen barcode scanning
Specifications:
- USB-C Connector for USB HID Interface and Virtual COM port
- Communication Interfaces: USB and Serial TTL (3.3V Only)
- CMOS, Global shutter
- 300,000 pixels, 640x480 Resolution
- Reads more than 30 different symbologies
- 1D Symbologies (including but not limited to)
- UPC-A
- UPC-E
- EAN-8
- EAN-13
- Code 128
- GS1-128
- Code 11
- Code 32
- Code 39
- Code 93
- Interleaved 2-of-5
- Matrix 2-of-5
- Industrial 2-of-5 (Straight 2-of-5)
- Standard 2-of-5 (IATA 2-of-5)
- Codabar (NW-7)
- MSI
- GS1 DataBar (Omnidirectional, Limited, Expanded)
- GS1 Composite
- China Post
- Tepepen
- Febraban Brazil Bank Code
- 2D Symbologies (including but not limited to)
- QR Code
- Micro QR Code
- Data Matrix
- PDF417
- Micro PDF 417
- MaxiCode
- Aztec
- HanXin Code
- Japan Post
- Postnet
- Scan Button
- Piezo Buzzer
- LEDs
- Red Power (PWR)
- Blue Status (STAT)
