Description
The SIM8200EA-M2 Core Module is based on the Qualcomm Snapdragon X55 platform, supporting multi-mode and multi-band connectivity. It enables 5G/4G/3G internet access in various modes, making it suitable for applications such as Internet of Networked Medical Treatment, Intelligent Agriculture, Smart City, Smart Robots, Security Monitoring Networking, and Intelligent Bus WiFi. The module offers high-speed 5G networking through the Gigabit Ethernet port or WiFi connection. It features 1 WAN interface and 4 LAN interfaces with 10/100/1000M Ethernet ports. The module also includes 1 M.2 connector and 3 mini PCIE connectors for flexible software/hardware customization or upgrades. With onboard RS232/RS485 serial communication, it supports TCP/UDP transparent transmission, Modbus, and MQTT multi-mode work. The module has a 4G-SIM card slot and a 5G-SIM card slot that support 1.8V and 3V SIM cards. It incorporates 16 LED indicators for easy monitoring of the module's operating status. The SIM8200EA-M2 supports AT command control, integrated multi-constellation system dual-frequency positioning (GPS, GLONASS, BeiDou, Galileo, and QZSS*), operator private network access, and financial-grade data security standards. The module is housed in a quality metal case and provides multiple protections, including ESD protection, surge protection, electric fast pulse protection, and power supply phase-reversal protection.
-
Supporting SIM8200EA-M2 core module, based on Qualcomm Snapdragon X55 platform with multi mode multi band support.
-
Support 5G/4G/3G Internet access in various modes, which can be used in the fields of Internet of Networked Medical Treatment, Intelligent Agriculture, Smart City, Smart Robots, Security Monitoring Networking, Intelligent Bus Wifi etc.
-
Enjoy High Speed 5G Networking Via The Gigabit Ethernet Port Or WiFi Connection
-
Onboard 1 WAN interface and 4 LAN interfaces, the interface is 10 / 100 / 1000M Ethernet port, adaptive MDI/MDIX
-
Onboard 1x M.2 connector, 3x mini PCIE connectors,you can flexibly customize or upgrade the software/hardware by yourself
-
Onboard multi-function RS232/RS485 serial communication, support TCP/UDP transparent transmission, Modbus and MQTT multi-mode work
-
Onboard one 4G-SIM card slot and one 5G-SIM card slot, support 1.8V and 3V SIM card
-
Onboard 16 LED indicators for easy viewing of module operating status
-
Support AT command control (based on 3GPP TS 27.007, 27.005, and V.25TER command set)
-
Integrated multi-constellation system dual-frequency positioning: GPS, GLONASS, BeiDou, Galileo and QZSS*
-
Support operator private network access, adopt financial-grade data security standards, and data transmission is stable and reliable.
-
Quality metal case, with multi protections like ESD protection, surge protection, electric fast pulse protection, power supply phase-reversal protection
Specifications
| 5G WIRELESS SPECIFICATION | |
|---|---|
| FREQUENCY BAND | 5G Sub-6G (SA): n1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n40, n41, n48, n66, n71, n77, n78 5G Sub-6G (NSA): n41, n77, n78 |
| LTE-FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71 |
|
| LTE-TDD: B34, B38, B39, B40, B41, B42, B43, B48 |
|
| WCDMA: B1, B2, B3, B4, B5, B8 |
|
| GNSS: GPS, GLONASS, BeiDou, Galileo, and QZSS |
|
| DATA RATE | 5G Sub-6G: 2.4 Gbps (DL) / 500 Mbps (UL) |
| LTE: 1 Gbps (DL) / 200 Mbps (UL) |
|
| HSPA+: 42 Mbps (DL) / 5.76 Mbps (UL) |
|
| WIFI WIRELESS SPECIFICATION | |
| WIFI STANDARD | IEEE802.11b/g/n compliant, 2.4GHz, supports AP mode |
| DATA RATE | 2.4GHz: up to 300Mbps |
| AUTHENTICATION | supports encryption methods including WEP, WPA, WPA2, etc. |
| INTERFACES | |
| M.2 | 1x connector, comes with 1x SIM8200EA-M2 module by default, supports other 5G modules |
| MINI PCIE | 3x connectors, comes with 1x 2.4GHz WiFi module, allows connecting one more 4G module and one more 5.8GHz WiFi module |
| WAN | 1x 10 / 100 / 1000M Ethernet, auto-negotiation MDI/MDIX, embedded 1.5KV electromagnetic isolation protection (the WAN RJ45 can be used as LAN RJ45 port, so there could be totally 5x LAN RJ45 port) |
| LAN | 4x 10 / 100 / 1000M Ethernet, auto-negotiation MDI/MDIX, embedded 1.5KV electromagnetic isolation protection |
| SERIAL PORT | 1x RS232 + 1x RS485, embedded ESD protection |
| SIM/UIM CARD SLOT | drawer SIM card slot, prevents the SIM card from dropping out, embedded 15KV ESD protection |
| ANTENNA CONNECTOR | SMA standard antenna connector, comes with 6x 5G antennas, 2x WiFi antennas by default |
| TF CARD SLOT | for external storage |
| POWER SUPPLY | standard power supply interface, supply 12~24V input, embedded power supply phase-reversal protection and over-voltage protection |
| RESET BUTTON | press and hold for 5~10s then release, restores the router to factory setting |
| INDICATORS | PWR, SYS, 5G, 4G, WAN, LAN, TF, 2.4G, 5.8G status indicators |
| POWER SUPPLY | |
| POWER ADAPTER | DC 12V/2A |
| POWER INPUT RANGE | 12 ~ 24V |
| POWER CONSUMPTION | data mode: ＜1A@12V, idle mode: ＜500mA@l2V |
| MECHANICAL | |
| CASE | Metal case, IP30 protection level |
| DIMENSIONS | 195 × 107 × 37mm |
| OPERATING TEMPERATURE | -35 ~ +75ºC |
| STORAGE TEMPERATURE | -40 ~ +85ºC |
| RELATIVE HUMIDITY | 95% (non-condensing) |
-
SIM8200EA-M2 5G Router x1
-
5G antenna x6
-
WiFi antenna x2
-
12V power adapter x1

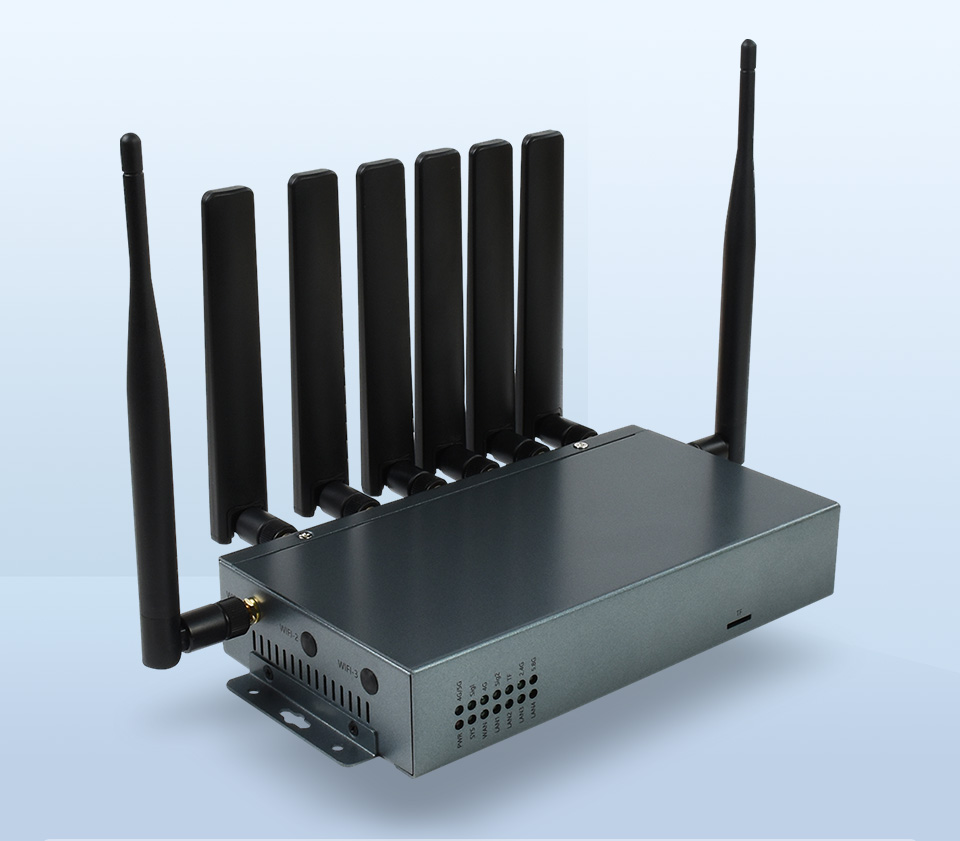

Industrial 5G Wireless Router
High Speed 5G, Multi Mode Multi Band
Incorporates SIM8200EA-M2 5G Module, Supports 5G/4G/3G, And 5G SA / NSA
Applicable For Regions With 5G Sub-6G Signal Coverage Including China, US, Japan, South Korea, Europe, The Middle East, Latin America...
Multi Mode Multi Band
Applicable For Most Of The Countries And Regions
Based on Qualcomm snapdragon X55 platform with multi mode multi band support.
Applicable for regions with 5G Sub-6G signal coverage including China, US, Japan, South Korea, Europe, the Middle East, Latin America...
Supports 5G NSA (4G+5G common networking) and SA (5G standalone networking)
Based on 5G NR/LTE-FDD/LET-TDD/HSPA+ cellular network, convering most 5G commercial frequency band of global major regions, backward-compatible with 4G/3G network, supports 5G/4G/3G auto switching, providing high speed wireless connection and data transmission capability
* the frequency band diagram above is for reference only, please confirm the supported bands according to your local service provider.
High Speed 5G Network Experience
Enjoy High Speed 5G Networking Via The Gigabit Ethernet Port Or WiFi Connection
RS232/RS485 Serial Communication
Supports Multi Modes Including TCP/UDP Transparent Forwarding, Modbus, And MQTT
Industrial Design, Stable & Reliable
Quality metal case, with multi protections like ESD protection, surge protection, electric fast pulse protection, power supply phase-reversal protection
Embedded hardware watchdog, allows self-detection on failure, self-recovery, ensures stable and reliable running
More Safe & Stable Data Transmission
Supports provider VPN access, adopts financial-level data security standard, dual WAN/Wired/Wireless connections with mutual backup, reducing communication failure probability, providing stable and reliable data transmission.
Supports general VPN protocols like PPTP, L2TP, GRE, OpenVPN, multi-layer encryption, more safe transmission.
Customizable Software/Hardware
Standardized and modular base board interface design
Onboard 1x M.2 connector, 3x mini PCIE connectors, allows connecting 1x 5G module, 1x 4G module, and 2x WiFi modules at one time
Comes with 1x SIM8200EA-M2 5G module and 1x WiFi module by default, you can flexibly customize or upgrade the software/hardware by yourself
More Possibilities
Industrial Hardware Design, Powerful Software Function,
Suitable For Sorts Of Industrial And IoT Applications
Interface Introduction
Outline Dimensions
