SCS0009 - 6V 2.3kg 300deg Serial BUS Servo Motor

Feetech

No reviews yet Write a Review
SKU:
501-SCS0009
MPN:
SCS0009
SCS0009 6V 2.3kg 300-degree Serial BUS Servo Motor with metal gearbox and plastic case, designed for precision control in robotics and small torque applications.
The SCS0009 6V 2.3kg 300° Serial BUS Servo Motor delivers precise control with advanced feedback. Its durable build and versatile performance make it ideal for robotics, teaching, and small torque transmission applications. View full description
  • 100% Original Products
  • GST Invoice
  • Earn 3% Cashback
₹764.64 inc. GST
₹648.00 ex. GST
14 people looking at this.

Technical Specifications

Brand:
Feetech
Storage Temperature Range:
-30℃～80℃
Operating Temperature Range:
-15℃～70℃
Size:
23.2mmx12.1mmx25.25mm
Weight:
13.2± 1g
Gear Type:
Copper+Steel
Limit Angle:
NO limit
Bearing:
NO
Horn Gear Spline:
20T/OD3.95mm
Horn Type:
Plastic,POM
Connector Wire:
150mm
Motor:
core motor
Operating Voltage Range:
4-7.4V
Idle Current (at Stopped):
6mA@6V
No Load Speed:
0.1sec/60°@6V
Running Current (at No Load):
150 mA@6V
Peak Stall Torque:
2.3kg.cm@6V
Rated Torque:
0.7kg.cm@6V
Stall Current:
1.0A@6V
Running Degree:
300°(when 0～1024)
Rotating Direction:
Load, Position, Speed, Input Voltage, Temperature
Command Signal:
Digital Packet
Case:
PC
Protocol Type:
Half duplex Asynchronous Serial Communication

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Power Your Robotics with Precision and Efficiency: Elevate Your Projects with the SCS0009 6V 2.3kg 300° Serial BUS Servo Motor

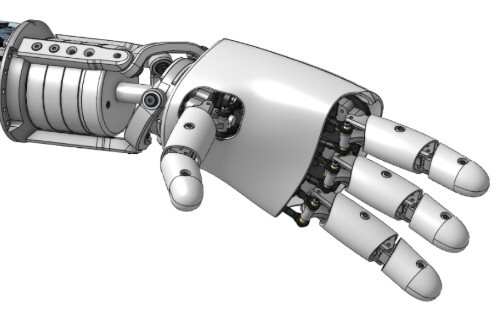

The SCS0009 is a high-performance 6V 2.3kg serial bus servo motor, meticulously designed to deliver reliable torque and precision control for your robotics and small torque transmission applications. Featuring a robust metal gearbox, core motor, and a proprietary TTL control board, this servo motor is ideal for teaching, maker projects, and robot joints. Its advanced feedback system provides detailed information on position, speed, voltage, temperature, and load, ensuring optimal performance and overload protection.

Key Features:
  • Versatile Control: Achieve precise control with a 300° effective rotation angle, supporting both servo and continuous motor modes.
  • Robust Build: Constructed with a durable plastic case and metal gearbox, ensuring longevity and consistent performance.
  • Advanced Feedback: Monitors load, position, speed, input voltage, and temperature for enhanced control and safety.
  • Efficient Performance: Operates effectively within a voltage range of 4-7.4V, delivering a peak stall torque of 2.3kg.cm at 6V.
  • Compact and Lightweight: Weighs just 13.2g with a compact size, making it perfect for applications requiring small torque transmission.
