Radxa X5 Intel Processor N150 (Twin Lake) SBC For Edge Computing

Radxa

No reviews yet Write a Review
SKU:
498-RS869-D12E128R45W16-12
MPN:
RS869-D12E128R45W16
Radxa X5 12GB 128GB Intel Twin-Lake single-board computer for edge computing and embedded AI applications
Radxa X5 single-board computer with Intel N150 Twin-Lake processor, 12GB LPDDR5 RAM, 128GB eMMC, dual Micro-HDMI, Wi-Fi 6, Bluetooth 5.2, and 2.5GbE connectivity for edge computing applications. View full description
  • 100% Original Products
  • GST Invoice
  • Earn 3% Cashback
₹41,351.73 inc. GST
₹35,043.84 ex. GST

Technical Specifications

Brand:
Radxa
CPU:
Intel Processor N150 (Twin Lake) - Total Cores: 4 - Total Threads: 4 - Max Turbo Frequency: 3.6 GHz - Cache: 6 MB Intel Smart Cache
GPU:
Intel Graphics - Max Dynamic Frequency: 1GHz - Max Resolution: 4K@60Hz - Support DirectX 12.1 / OpenGL 4.6 / OpenCL 3.0
MCU:
RP2350
RAM:
LPDDR5 - Up to 16 GB
Storage:
Onboard eMMC (Optional) 1x M.2 M Key 2230 Slot
Display:
2xMicro HDMI
Networking:
1x 2.5GbE RJ45 Port (PoE supported via optional PoE HAT) Onboard WiFi 6 / BT 5.2
USB:
1xUSB 2.0 Type-A Port 3x USB 3.2 Gen 2 Type-A Port
Audio:
3.5mm Headphone Jack
Button:
1x Power Button 1x BOOTSEL Button
Other:
1x PoE Header 1x Fan Connector 1x RTC Battery Connector 1x 40-Pin GPIO Header - Support UART, I2C, PWM, GPIO, etc 1x Power Button Connector
Power:
USB Type-C (PD supported) or 12V DC Power Input Header
Operating System:
Windows 10 / Windows 11 Major Linux distributions (Ubuntu, Debian, Fedora, etc.)
Dimension:
85 mmx56 mm

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

High-Performance Intel Twin-Lake Single-Board Computer For Edge Computing And Embedded AI Applications

The Radxa X5 12GB 128GB is a compact high-performance single-board computer powered by the Intel Processor N150 Twin-Lake platform, designed for edge computing, embedded systems, industrial automation, and multimedia applications. With x86 architecture support, advanced graphics capabilities, and high-speed connectivity, the board delivers reliable computing performance for developers, system integrators, and industrial IoT deployments. Its compact form factor makes it suitable for space-constrained installations while maintaining efficient thermal and processing performance.

Equipped with 12GB LPDDR5 memory and 128GB onboard eMMC storage, the Radxa X5 provides fast multitasking, efficient application execution, and flexible storage expansion through the M.2 M-Key 2230 interface. The board supports dual Micro-HDMI displays, 2.5GbE networking, onboard Wi-Fi 6, and Bluetooth 5.2 for modern connectivity requirements. Additional interfaces, including a 40-pin GPIO header, enable hardware expansion and integration with sensors, controllers, and industrial peripherals for embedded computing projects.

Key Features

  • Intel Processor N150 Twin-Lake Platform: Delivers efficient x86 computing performance for embedded and edge applications.
  • 12GB LPDDR5 Memory: High-speed memory architecture supports multitasking and demanding workloads.
  • 128GB Onboard eMMC Storage: Provides reliable onboard storage for operating systems and applications.
  • M.2 M-Key 2230 Expansion: Supports additional high-speed storage expansion options.
  • Dual Micro-HDMI Outputs: Enables dual-display multimedia and digital signage applications.
  • 2.5GbE Ethernet Connectivity: High-speed wired networking for industrial and edge deployments.
  • Wi-Fi 6 and Bluetooth 5.2: Supports modern wireless connectivity and peripheral integration.
  • USB Type-C PD and 12V DC Input: Flexible power-input options for embedded system integration.
  • 40-Pin GPIO Header: Allows peripheral interfacing and hardware expansion for custom applications.
  • Compact Embedded Design: Suitable for industrial gateways, AI edge systems, and smart-device development.

Applications

  • Edge AI computing
  • Industrial automation systems
  • Embedded x86 applications
  • Smart gateways and IoT systems
  • Multimedia and digital signage
  • Network appliances and servers
  • Robotics and automation control
  • Custom embedded development

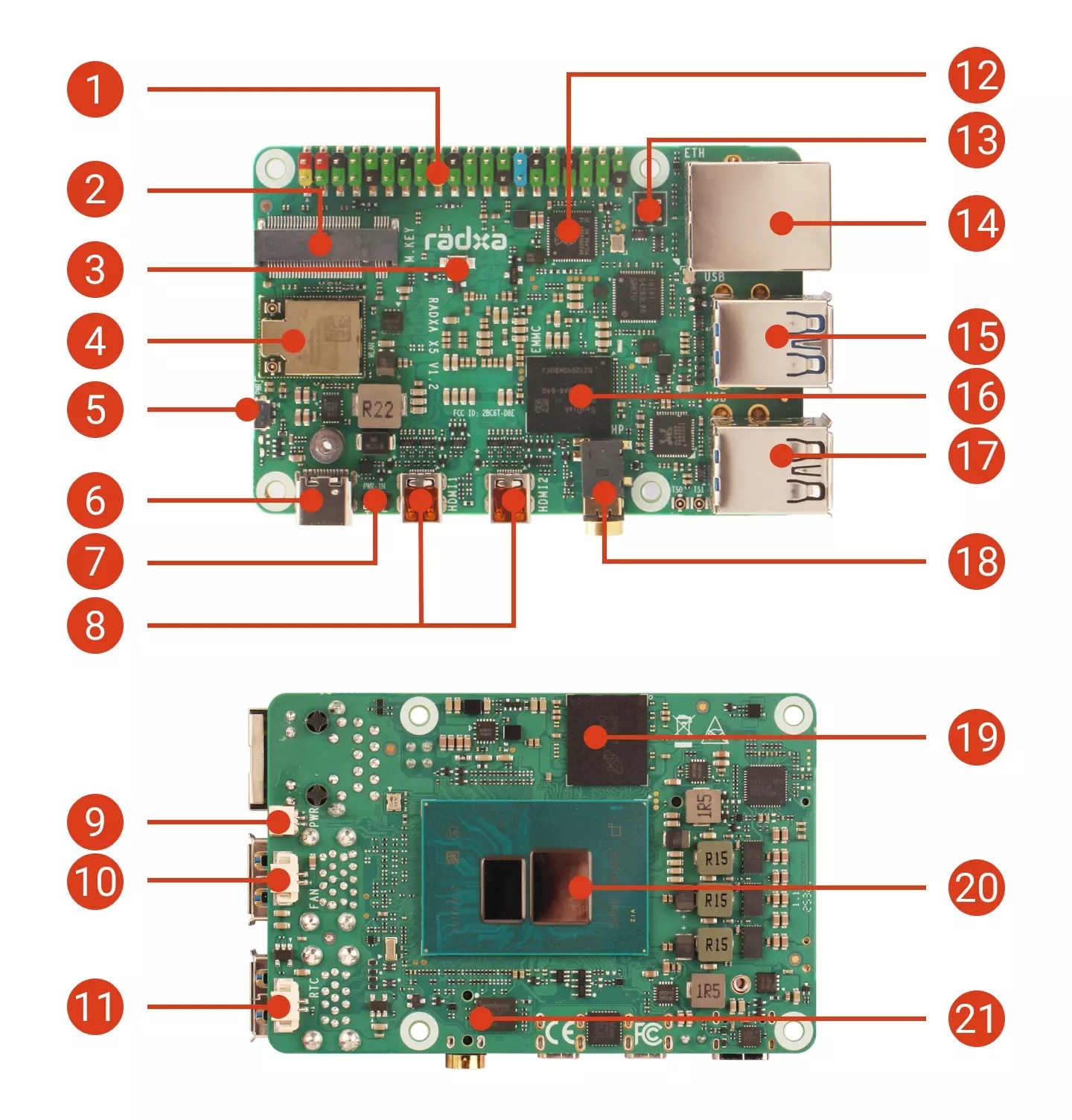

Interface

1 40-Pin GPIO Header
2 M.2 M Key 2230 Slot
3 BOOTSEL Button
4 WiFi 6 & Bluetooth 5.2 Module
5 Power Button
6 USB Type-C Power Input
7 12V DC Power Input
8 2x Micro HDMI
9 Power Button Connector
10 Fan Connector
11 RTC Battery Connector
12 RP2350
13 PoE Header
14 2.5GbE RJ45 Port
15 2x USB 3.2 Gen2 Type-A Ports
16 Onboard eMMC
17 Up: USB 2.0 Type-A Down: USB 3.2 Gen2 Type-A
18 3.5mm Audio Jack
19 LPDDR5 Memory
20 Intel® Processor N150 (Twin Lake)
21 SPI Flash
