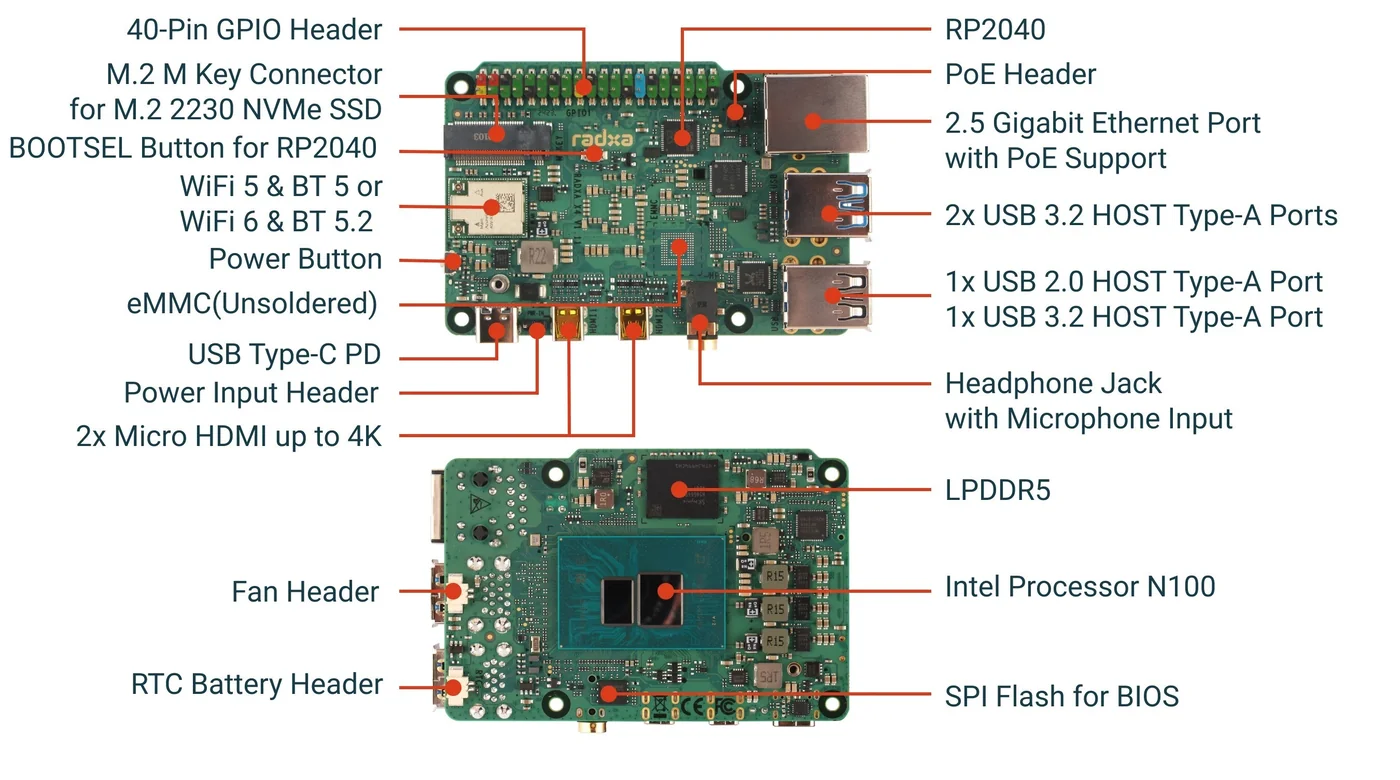

Technical Specifications
Brand:
Radxa
CPU:
Intel Processor N100 (Alder Lake-N), Total Cores: 4, Total Threads: 4, Max Turbo Frequency: 3.40 GHz, Cache: 6 MB Intel Smart Cache, Intel Gaussian & Neural Accelerator 3.0, Intel Image Processing Unit 6.0
GPU:
Intel UHD Graphics, Graphics Max Dynamic Frequency: 750 MHz, DirectX Support: 12.1, OpenGL Support: 4.6, OpenCL Support: 3.0
RAM:
LPDDR5 RAM, Maximum Frequency of 4800 MT/s, 4GB/8GB/12GB/16GB
Storage:
Optional Onboard eMMC, SPI Flash for BIOS, 1x M.2 M Key Connector with PCIe 3.0 4-lane for M.2 2230 NVMe SSD
Display:
Dual Display Outputs via Two Micro HDMI up to 4Kp60
Ethernet:
1x 2.5G Ethernet Port with PoE Support(Additional PoE HAT Required),
Ethernet-Wireless Connectivity:
IEEE 802.11 a/b/g/n/ac/ax (WiFi 6) and Bluetooth 5.2 with BLE, IEEE 802.11 a/b/g/n/ac (WiFi 5) and Bluetooth 5.0 with BLE
USB:
1xUSB 2.0 HOST Type A Port, 3xUSB 3.0 HOST Type A Ports
Audio:
1xHeadphone Jack with Microphone Input
Connectivity:
1xRTC Battery Socket, 1x 2-Pin Fan Header, 1x 2-Pin Power Input Header, 40-Pin Color GPIO Header, Up to 2x SPI, Up to 2x UART, Up to 2x I2C, Up to 16x PWM, Up to 8x PIO, 2 x 5V DC, 2 x 3.3V
Button:
1xPower Button is used for powering on and off, 1x BOOTSEL Button is used to put the RP2040 into USB mass storage mode for firmware upload.
Software:
Windows 10 / 11, Debian / Ubuntu Linux support
Power Requirements:
The Radxa X4 supports the following power input, USB Type-C PD Version 2.0 with 12V/2.5A.
Operating Conditions:
0 ~ 50 C
Dimension:
85 mmx56 mm
