Technical Specifications
Brand:
Radxa
SoC:
MTK G1200(MT8395)
CPU:
Quad-core Arm Cortex-A78@2.2 ~ 2.4GHz, Quad-core Arm Cortex-A55@2.0GHz, based on Arm DynamIQ configuration
GPU:
Arm Mali G57 MC5 GPU, OpenGL ES1.1, ES2.0, and ES3.2, OpenCL 1.1, 1.2 and 2.2, Vulkan 1.1 and 1.2,
APU:
Dual‑core Al Processor Unit (APU) Cadence Tensilica VP6 processor with Al Accelerator (AIA), APU computing power is up to 4TOPs
DSP:
Single‑core Cadence HiFi 4 Audio Engine DSP
RAM:
LPDDR4x RAM up to 4266MT/s-4GB/8GB/16GB
Storage:
UFS (Universal Flash Storage) Version 2.1 with options:128GB/256GB/512GB,microSD Card Slot, eMMC
Display:

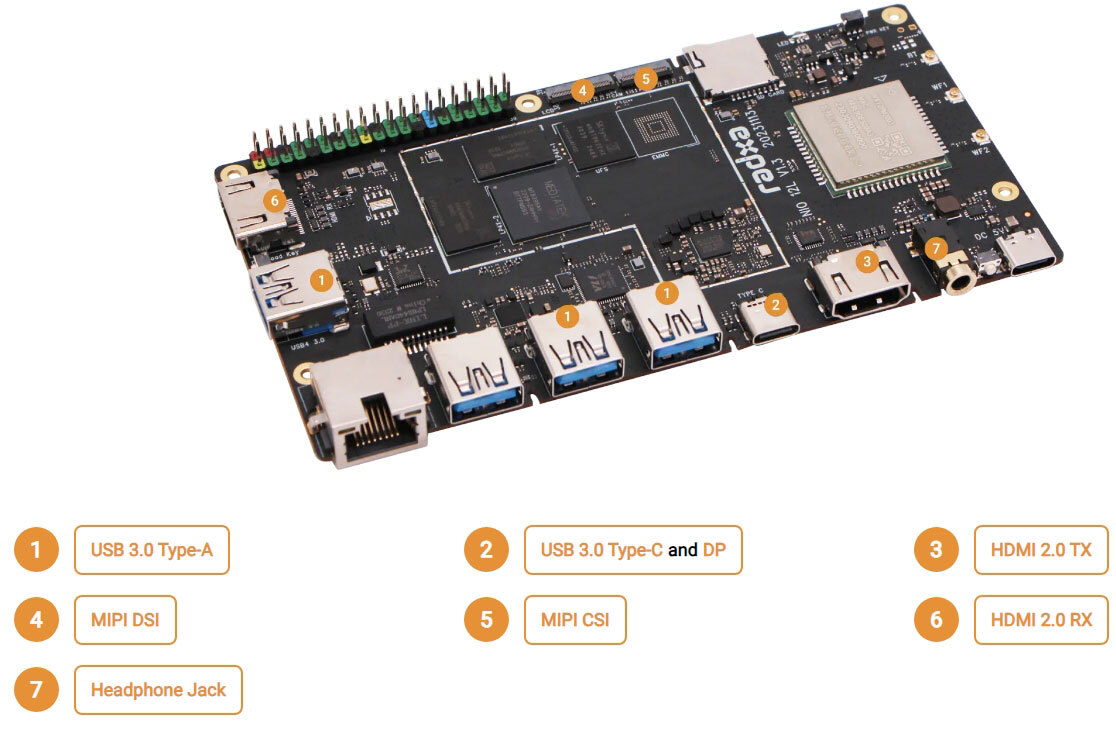

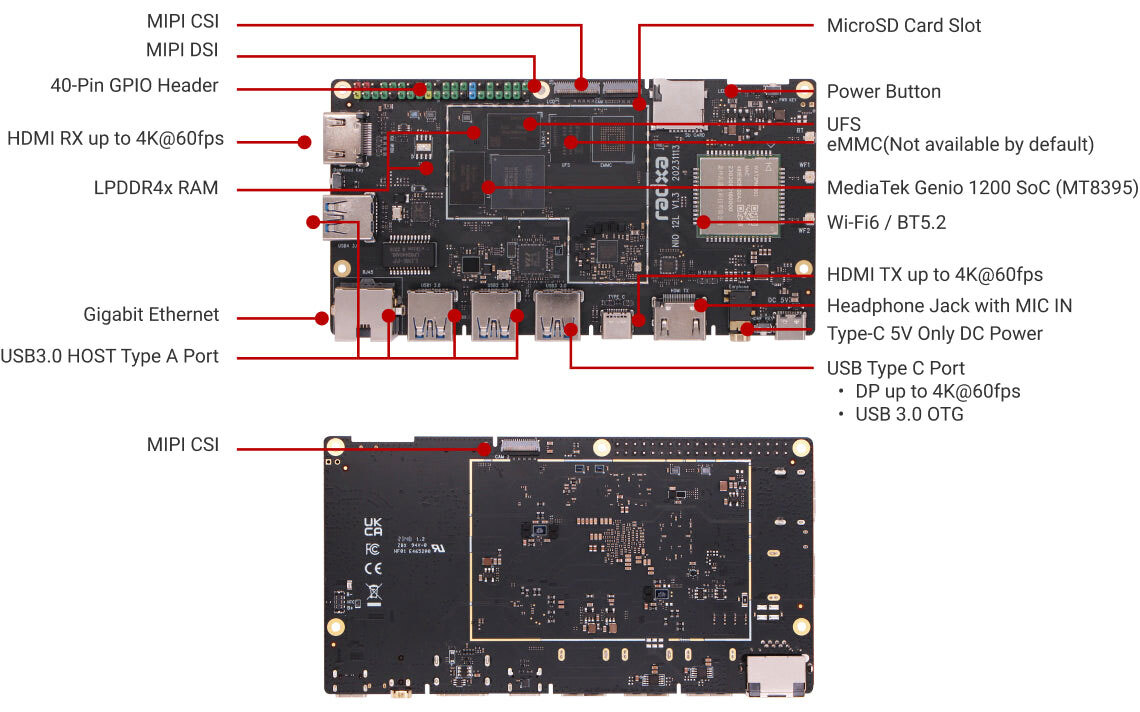

Dual display outputs via any two of: 1xHDMI TX up to 4Kp60, 1xDP (USB Type‑C) up to 4Kp60, 1xMIPI DSI up to 2Kp60
Video Input:
1xStandard HDMI input port, supporting up to 4Kp60 display input, 2x4‑lane MIPI CSI Ports
Image Processing:
Single camera with image processing up to 48MP@30fps, Dual camera with image processing up to 16MP@30fps+16MP@30fps
Multimedia:
AV1/VP9/HEVC/H.264 multivideo decoder up to 4K@90fps, HEVC/H.264 multivideo encoder up to 4K@60fps
Network:
1xGigabit Ethernet port, 1xWiFi 6 & BT 5.2 Wireless Module with triple antenna
USB:
4xUSB 3.0 HOST Type-A Ports, 1xUSB 3.0 OTG / HOST Type-C Port
Audio:
1x3.5mm Headphone Jack with Microphone Input
Connectivity:
1xRTC battery connector, 1xRGB power/status/user LED, 40 pin 0.1 (2.54mm) GPIO header options-2x UART/2xSPI bus/2xI2C bus/1xPCM/I2S/1xSPDIF/1xPWM/1xADC/6xGPIO/2x5V DC power in/out/2x3.3V power out
Button:
1x Power Button, 1x User Button, 1x Force Upgrade Button
Software:
Android, Ubuntu, Yocto
Power Requirements:
Power adapter with fixed voltage of 5V on the USB Type‑C port 5V Power applied to the GPIO PIN 2 & 4 The recommended power source should be able to produce, at least, 10W without power consuming devices on USB 3 or 20W with full USB ports load.
Operating Conditions:
0 ~ 50 C
Dimension:
140 mmx75 mm
