PCIe TO 4-Ch Gigabit/2.5G ETH Board For Raspberry Pi 5

Waveshare

No reviews yet Write a Review
SKU:
061-33365
MPN:
33365
PCIe to 4-channel Gigabit Ethernet adapter for Raspberry Pi 5
PCIe to 4-channel Gigabit Ethernet adapter for Raspberry Pi 5 with driver-free plug-and-play support. Enables four independent Gigabit LAN ports for routing, edge computing, and multi-network applications. View full description
  • 100% Original Products
  • GST Invoice
  • Earn 3% Cashback
₹4,341.31 inc. GST
₹3,679.08 ex. GST
10 people looking at this.

Technical Specifications

Brand:
Waveshare
Controller Chip:
RTL8153
Expansion Chip:
VL805
Ethernet Port:
RJ45 Ethernet ports
Power Supply:
5V
Network Standard:
10/100/1000Mbps
Indicator Status:
The green indicator keeps lighting, the yellow indicator keeps blinking

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Resources:

Wiki: www.waveshare.com/wiki/PCIE_TO_4-CH_2.5G_ETH_Board_(B)

PCIe to 4-Channel Gigabit Ethernet Adapter for Raspberry Pi 5 Driver-Free Plug and Play

The PCIe to 4-Channel Gigabit Ethernet Adapter for Raspberry Pi 5 is a high-performance network expansion solution designed to unlock multi-port wired networking on the Raspberry Pi 5 platform. By utilising the native PCIe interface, this adapter provides four independent Gigabit Ethernet ports with stable throughput and low latency. Its driver-free, plug-and-play design ensures seamless operation with supported operating systems, significantly reducing setup complexity. Ideal for applications requiring multiple network connections, this adapter is well suited for routers, network gateways, firewalls, edge computing, virtualisation labs, and industrial networking projects built around Raspberry Pi 5.

Key Features

  • PCIe Interface for Raspberry Pi 5 – Leverages native PCIe connectivity for high-speed and reliable data transfer
  • 4-Channel Gigabit Ethernet Ports – Provides four independent 10/100/1000 Mbps Ethernet interfaces
  • Driver-Free Plug and Play Operation – Works without additional driver installation for quick deployment
  • Stable and Low-Latency Networking – Suitable for routing, switching, and multi-NIC applications
  • Optimised for Raspberry Pi 5 – Designed specifically for compatibility with the Raspberry Pi 5 platform
  • Compact Expansion Solution – Integrates easily into embedded and edge computing systems
  • Versatile Application Support – Ideal for network appliances, edge servers, and industrial communication setups.
PCIe TO 4-ch ETH Port Adapter Board

Supports Raspberry Pi OS, Driver-free, Plug and Play

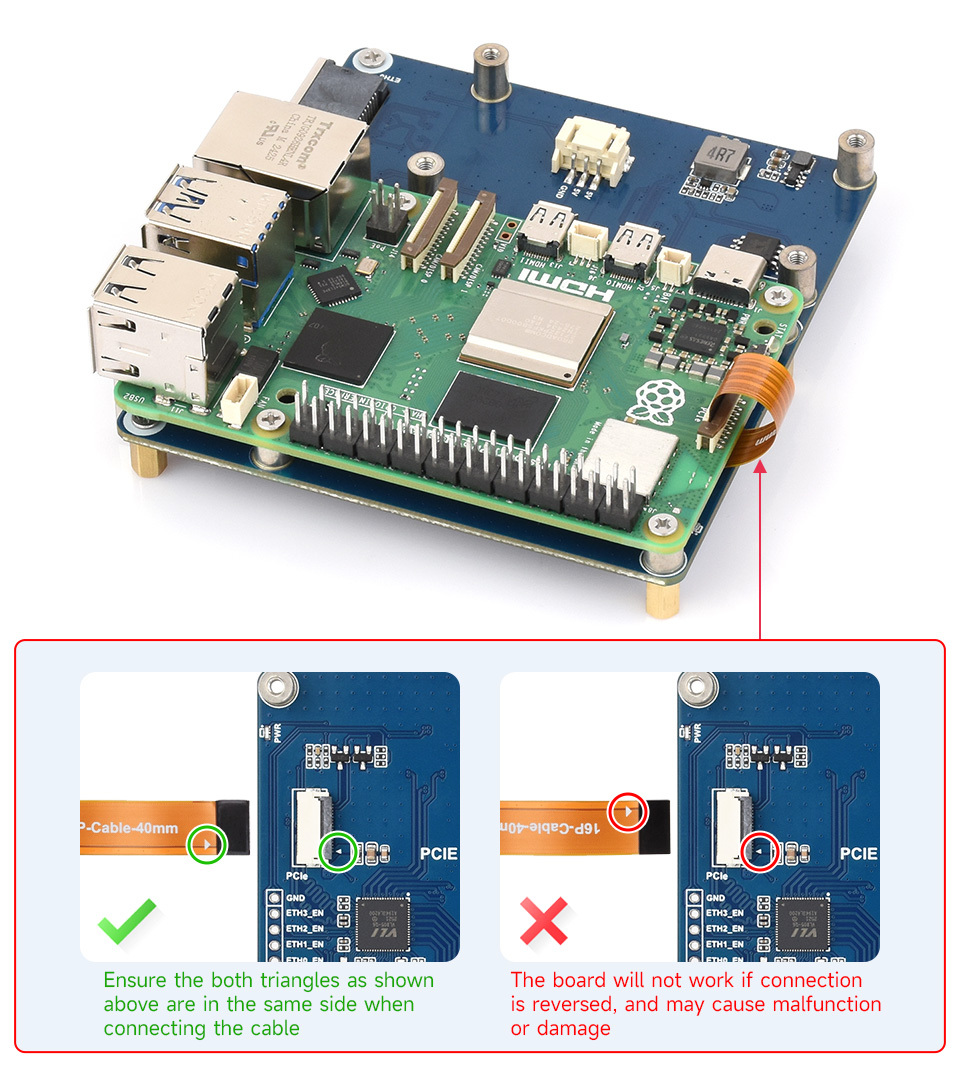

Connecting To PI5 Via 16PIN Cable

Based on 16PIN PCIe Interface of Raspberry Pi 5

For reference only, please refer to the Package Content for detailed part list

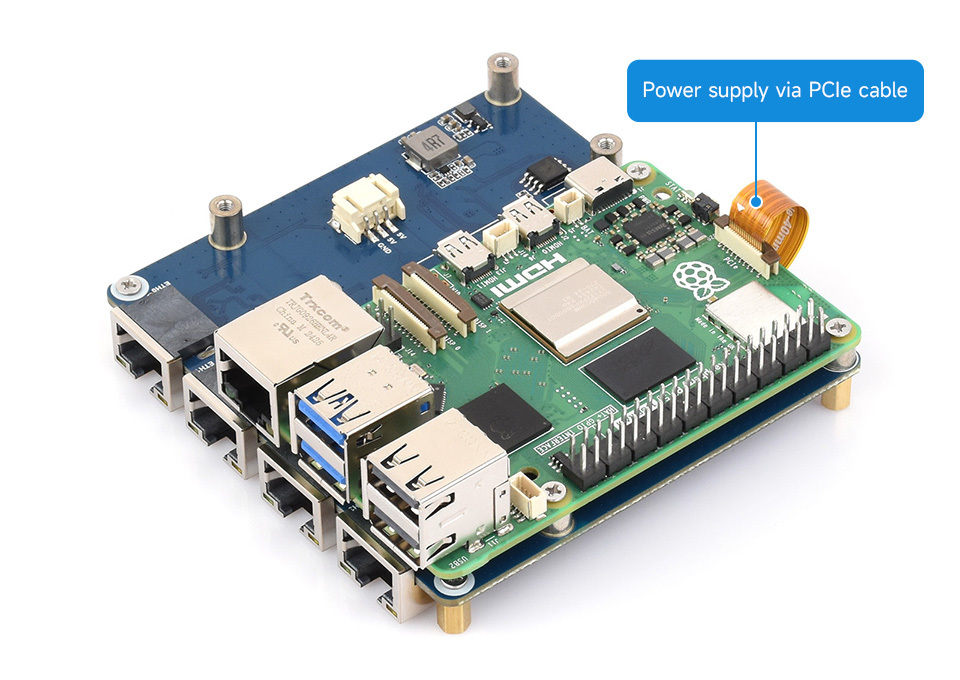

Power Supply Method

Power Supply via PCIe Cable By Default

For reference only, please refer to the Package Content for detailed part list

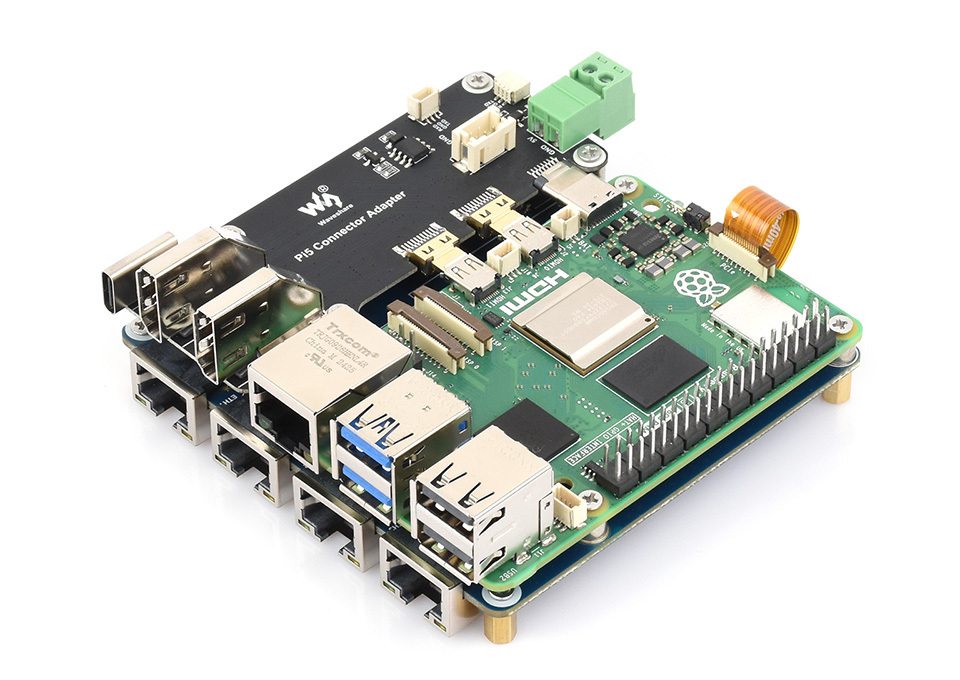

Assembly Diagram

For reference only, the Pi5 Connector Adapter and Raspberry Pi 5 are NOT included in the package, please purchase separately.

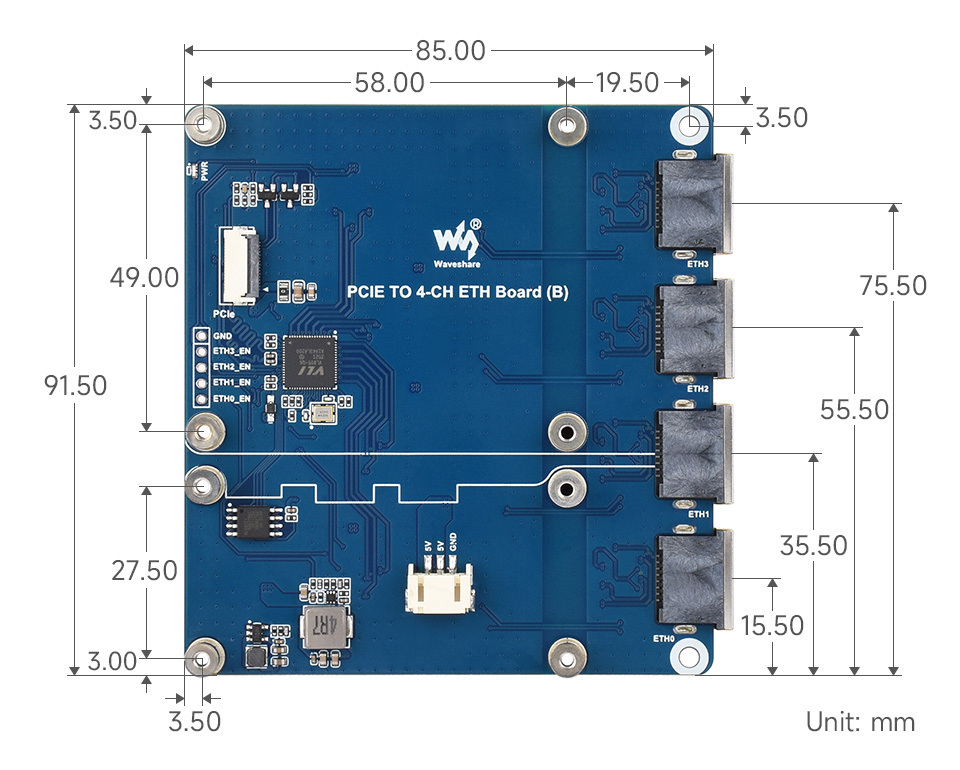

Dimensions

Package Includes:

  1. PCIE TO 4-CH Gigabit ETH Board (B) x1
  2. 16P-Cable-40mm x1
  3. Screws pack x1
