High-Speed OV9281 Global Shutter Camera 4B / 5 (1MP, FOV 79°) for Motion Capture & Computer Vision:
The global shutter camera module uses the OV9281 photosensitive chip with 3μm x 3μm pixel size and OmniPixel3-GSTM technology. The global shutter technology enables simultaneous exposure of all pixels, minimizing motion distortion and improving the capacity to capture fast-moving objects in detail. Its 1280x800 resolution and 1 million pixels provide detailed image capture even in low-light situations, making it perfect for applications such as night surveillance and indoor shooting in which lighting conditions may be poor. The module's tiny design contains two FPC cables for easy connection to Raspberry Pi single-board computers, allowing for a quick setup with no further purchases.

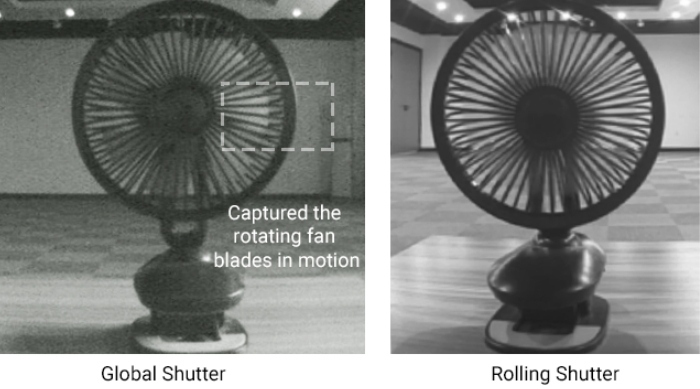

Global Shutter for Clear Capture of Moving Objects
The camera can record rapidly moving things, including spinning fan blades, without distortion or motion blur thanks to the global shutter. As opposed to rolling shutter cameras, which are prone to the "jelly effect," the global shutter takes a full picture at once, guaranteeing crisp, undistorted photos even in dynamic situations. For applications involving high-speed motion, this makes the module perfect.
Low-Light Performance with High-Resolution Imaging
This camera's 3μm x 3μm pixel size and global shutter technology enable clear and detailed photographs in low-light circumstances, surpassing other cameras' capabilities. The fixed focus, f/2.0 aperture, and integrated infrared filter all work together to produce clear, high-quality photos in adverse lighting conditions, such as night surveillance and inside monitoring.

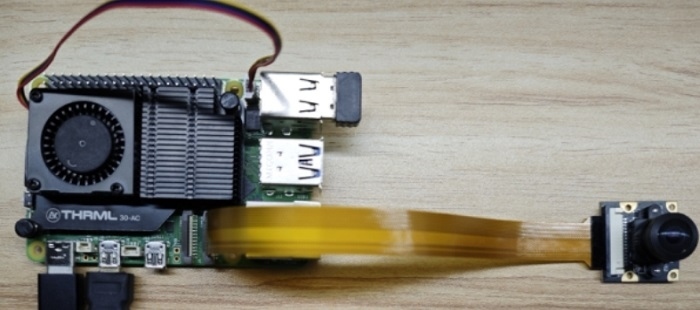

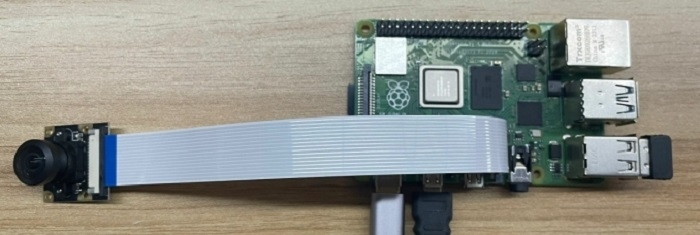

Easy Integration with Raspberry Pi
The module includes two FPC cables that allow for a seamless connection to the Raspberry Pi 4 / Raspberry Pi 5, removing the need for additional wires. This functionality simplifies and makes setup easier for those working on Raspberry Pi-based applications. The MIPI-CSI-2Lane interface supports high-speed data transmission, making it ideal for real-time applications.
Applications:
- Gesture Detection
- Head and Eye Tracking
- Depth and Motion Detection
Resources:
Package Content:
- OV9281-79 1MP Global Shutter Raspberry Pi Camera x1
- 15 Pin to 15 Pin FPC cable x1
- 15 Pin to 22 Pin FPC cable x1
