The Waveshare's OV9281-160 1MP Mono Camera can be directly connected to different variants of Raspberry Pi including 4B/3B+/3A+/3B/2B/B+/A+, an extra FPC cable is required for Zero / Zero 2 W Series. The Global shutter eliminates Jello-Effect while capturing moving objects and is suitable for high frame rate capture.

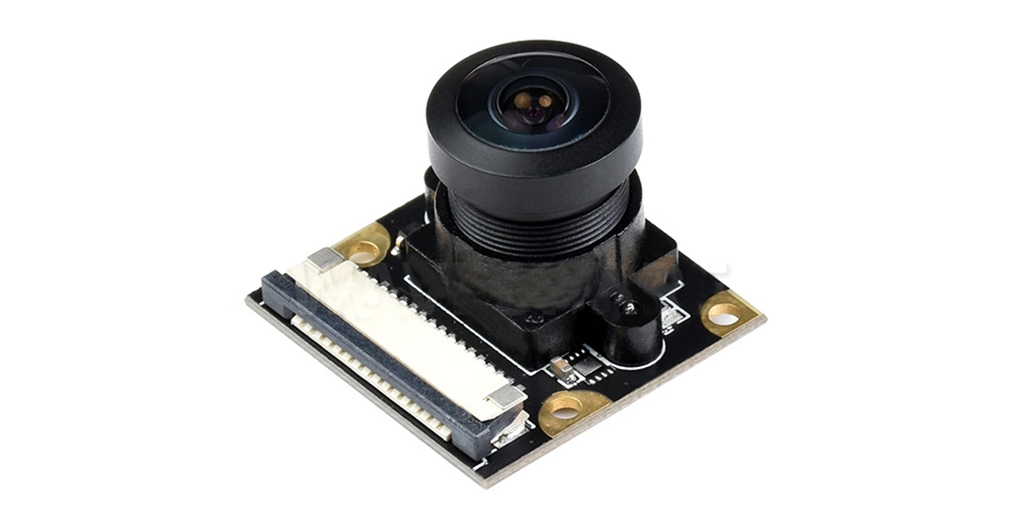

OV9281-160 Mono Camera
MP, Global Shutter, 160 degrees FOV
Compatible with Raspberry Pi series boards

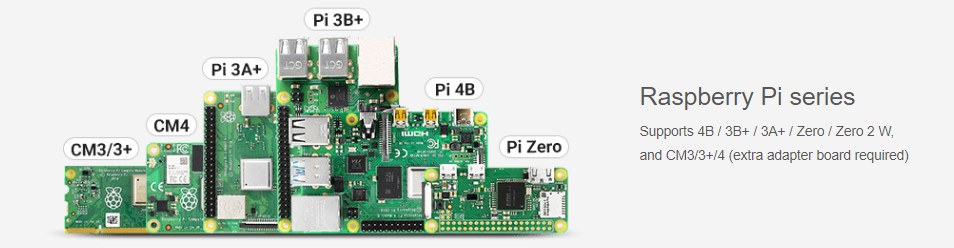

Device Support
Global Shutter, More Clear Imaging
The Global Shutter Eliminates Jello-Effect While Shooting Fast Moving Objects
More Suitable For High Frame Rate Capturing

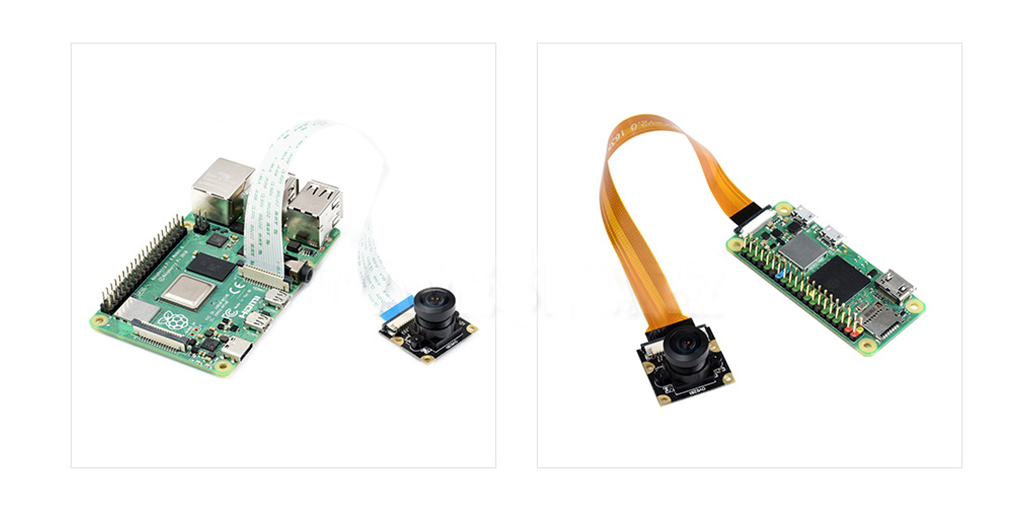

Working With Raspberry Pi
Direct Connect To Raspberry Pi Different Variants Including 4B/3B+/3A+/3B/2B/B+/A+,
Extra FPC Cable Is Required For Zero / Zero 2 W Series

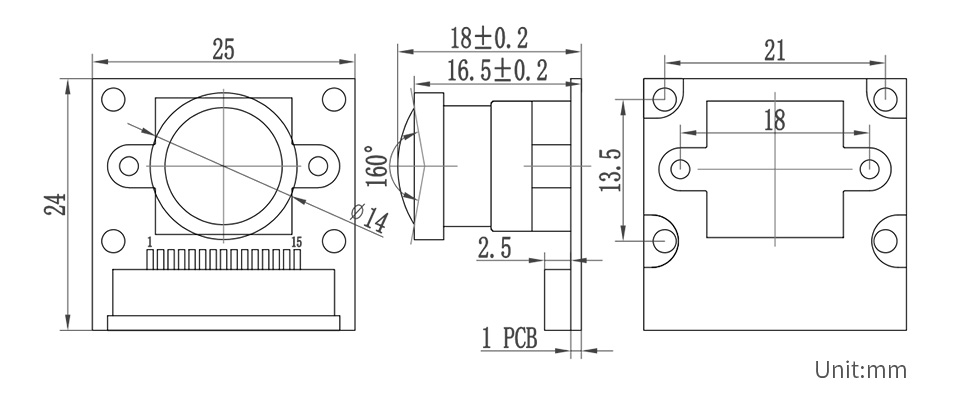

Outline Dimensions
Resources
FAQs:
Q: What is the resolution of the OV9281-160 Mono Camera?
A: The OV9281-160 Mono Camera has a resolution of 1MP (1280x800 pixels), providing clear and detailed monochrome images.
Q: What is the field of view (FOV) of the OV9281-160 Camera?
A: The OV9281-160 Camera features a wide 160° field of view, allowing for extensive scene capture in a single frame.
Q: What are the main applications for the OV9281-160 Mono Camera?
A: The OV9281-160 Mono Camera is ideal for high-speed imaging, low-light environments, robotics, machine vision, and other advanced imaging projects.
Q: How do I connect the OV9281-160 Camera to my system?
A: The OV9281-160 Camera connects via a 24-pin FPC connector and supports MIPI CSI-2 interface, making it compatible with various development boards, including Raspberry Pi.
Q: What technology does the OV9281-160 Camera use for imaging?
A: The OV9281-160 Camera uses global shutter technology, which is effective for capturing fast-moving objects without distortion, making it suitable for high-speed applications.
