Name: NVIDIA Jetson Orin NX 8GB C200 AI Developer Kit for Robotics, Edge Solutions
Brand: Radxa
SKU: 498-DK122
Price: 66316 INR
Availability: InStock
Rating: 4 (4 reviews)

Technical Specifications

Brand:

Radxa

SoC:

NVIDIA Jetson Orin NX 8GB

CPU:

Hexa-core Arm Cortex -A78AE v8.2 (64-bit) CPU @ 2 GHz

GPU:

Ampere architecture GPU - GPU Max Frequency: 1173 MHz (Super mode) - 1024 NVIDIA CUDA Cores + 32 Tensor Cores - End-to-end lossless compression - Support OpenGL 4.6 / OpenGL ES 3.2 / Vulkan 1.2 / CUDA 11.4+

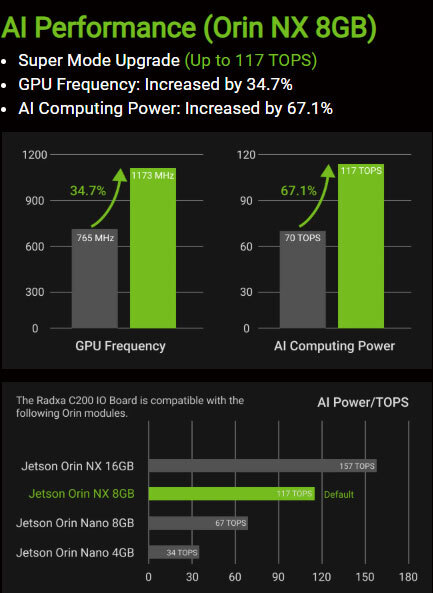

AI Performance:

Normal Mode - GPU Max Frequency: 765 MHz - AI Performance: Up to 70 TOPS @INT8 (Sparse), 35 TOPS @INT8 (Dense), Super Mode - GPU Max Frequency: 1173 MHz - AI Performance: Up to 117 TOPS @INT8 (Sparse), 58 TOPS @INT8 (Dense)

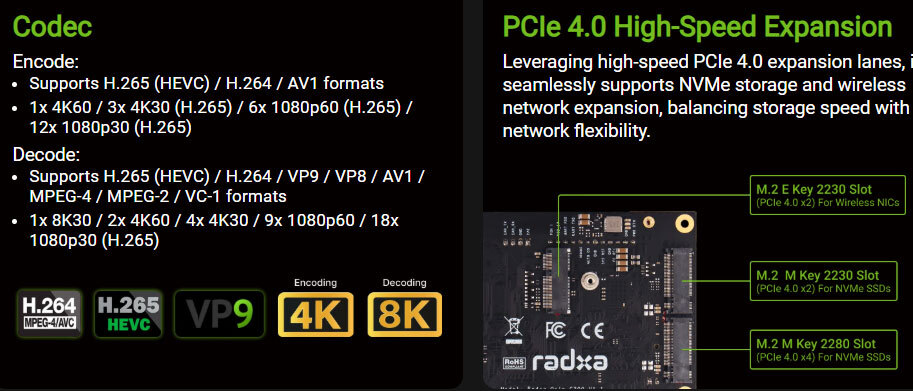

Video Codec:

Encode - Supports H.265 (HEVC) / H.264 / AV1 formats - 1x 4K60 / 3x 4K30 (H.265) / 6x 1080p60 (H.265) / 12x 1080p30 (H.265)

Video Codec:

Decode - Supports H.265 (HEVC) / H.264 / VP9 / VP8 / AV1 / MPEG-4 / MPEG-2 / VC-1 formats - 1x 8K30 / 2x 4K60 / 4x 4K30 / 9x 1080p60 / 18x 1080p30 (H.265)

Video:

Video Output - 1x VESA DisplayPort v1.2 with MST, Video Input - 2x 22-Pin FPC connector - 1x MIPI CSI with 2 lanes - 1x MIPI CSI with 2 or 4 lanes

Memory:

8GB LPDDR5 - Speed: 6400MT/s - Peak Memory Bandwidth: 102 GB/s

Storage:

2x M.2 M Key NVMe slots - Slot 1: PCIe Gen4 x2 - Slot 2: PCIe Gen4 x4 - Support NVMe SSD

USB:

1x USB 3.2 Gen2 Type-C - Support Recovery Mode 4x USB 3.2 Gen2 Type-A

Network:

1x 10/100/1000M Ethernet 1x M.2 E Key slot - PCIe Gen4 - Support WiFi / BT

Power:

DC Power Input (5.5×2.5 mm jack) - Voltage Range: 9 - 20V

Other Interfaces:

1x 40-Pin GPIO Header - Supports I2C, SPI, UART, GPIO, PWM and other functional interfaces 1x 4-Pin PWM Fan Connector,1x 2-Pin RTC Battery Connector,1x 4-Pin CAN Bus Header,1x 12-Pin Button Header,1x 2-Pin PoE Backpower Header,1x 4-Pin PoE Header

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Radxa C200 Orin Developer Kit for Next-Gen Robotics and Edge AI Solutions with NVIDIA Jetson Orin NX 8GB

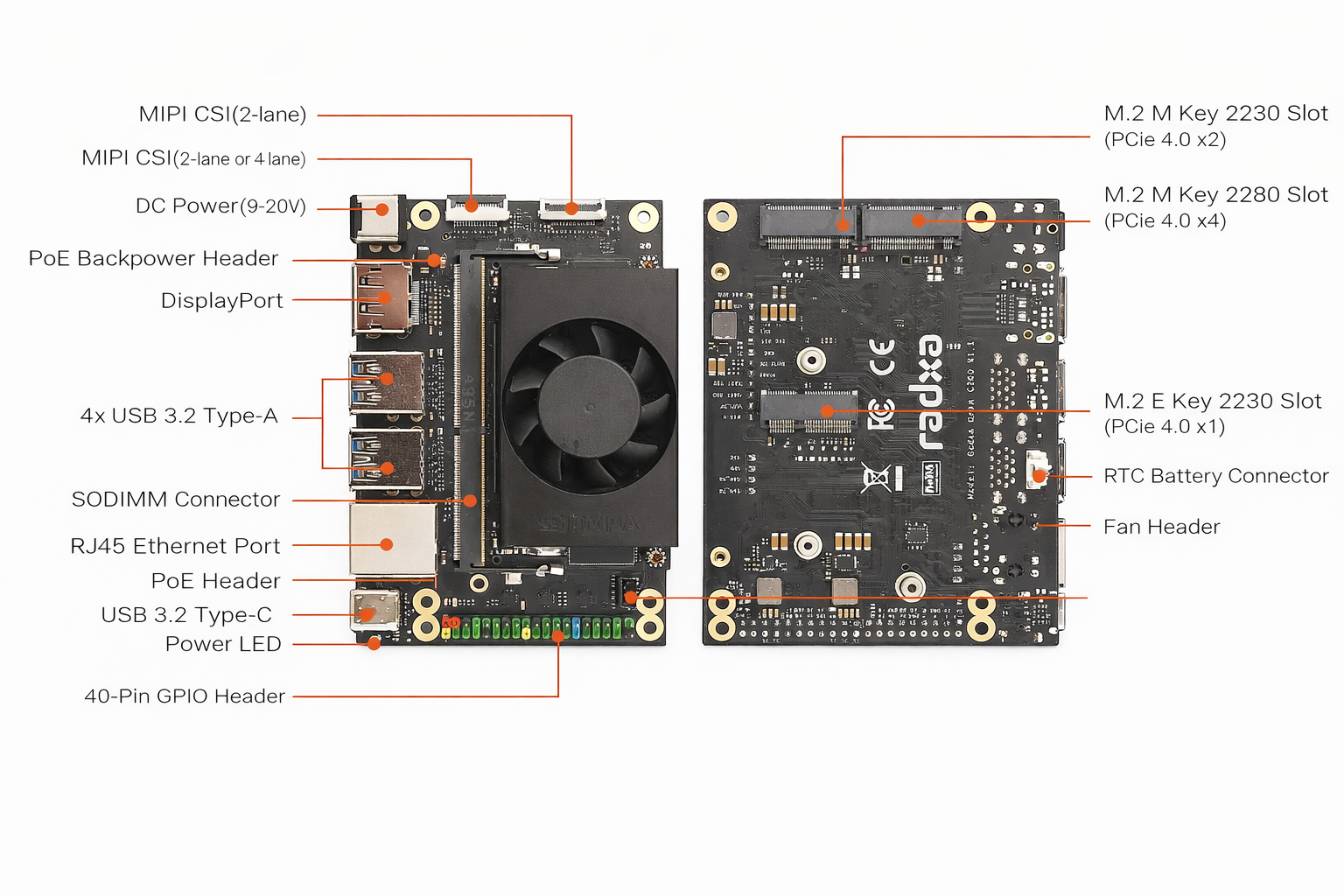

The Radxa C200 Orin Developer Kit combines a powerful Radxa C200 IO carrier board with an NVIDIA Jetson Orin NX 8GB module, delivering advanced computing and AI acceleration for robotics, edge AI, industrial automation, intelligent surveillance, and high-performance embedded applications. With a 6-core Arm Cortex-A78AE CPU, an Ampere architecture GPU with 1024 CUDA cores and 32 Tensor cores, and up to 117 TOPS AI performance in Super Mode, this developer kit is engineered to handle demanding machine learning, perception, and real-time inferencing workflows. It includes rich connectivity such as USB 3.2 Gen2 ports, DisplayPort, Gigabit Ethernet, MIPI CSI camera inputs, dual PCIe 4.0 NVMe expansion slots, a 40-pin GPIO header, CAN bus, PoE headers, and supports Ubuntu 20.04/22.04 LTS with NVIDIA JetPack SDK for accelerated software deployment.

Key Features

AI & Compute Performance: Up to ~117 TOPS INT8 AI acceleration for edge AI tasks
Powerful Processor: 6-core Arm Cortex-A78AE CPU up to 2 GHz
Graphics & AI Cores: NVIDIA Ampere GPU with 1024 CUDA cores+32 Tensor cores
Memory & Storage: 8 GB 128-bit LPDDR5 6400 MT/s and dual PCIe 4.0 NVMe SSD support
Rich I/O Connectivity: USB 3.2 Gen2 Type-A & Type-C, DisplayPort, Gigabit Ethernet
Expansion & Interfaces: 40-pin GPIO, CAN bus, PoE headers, MIPI CSI camera inputs
Software Support: Ubuntu 20.04 / 22.04 LTS with JetPack SDK and NVIDIA AI tools
