Technical Specifications
Brand:
onsemi

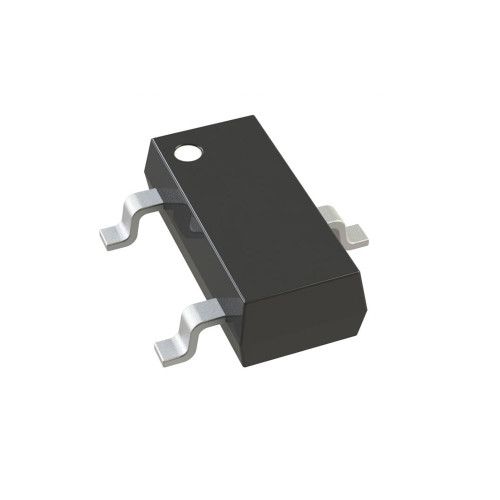

Case/Package:
SOT-23-3
Contact Plating:
Tin
Number of Pins:
3
Number of Terminals:
3
Collector Base Voltage (VCBO):
30 V
Collector Emitter Breakdown Voltage:
30 V
Collector Emitter Saturation Voltage:
1.5 V
Collector Emitter Voltage (VCEO):
30 V
Continuous Collector Current:
300 mA
Current Rating:
300 mA
Element Configuration:
Single
Emitter Base Voltage (VEBO):
10 V
hFE Min:
10000
Max Breakdown Voltage:
30 V
Max Collector Current:
300 mA
Max Operating Temperature:
150 C
Max Power Dissipation:
225 mW
Min Operating Temperature:
-55 C
Number of Elements:
1
Packaging:
Tape and Reel
Polarity:
NPN
Power Dissipation:
225 mW
Transition Frequency:
125 MHz
Voltage Rating (DC):
30 V
Height:
940 um
Length:
2.9 mm
Width:
1.3 mm
