PIR Motion Sensor Unit with 500 cm Detection Range and HY2.0-4P Interface
The M5Stack U004 PIR Unit is a passive pyroelectric infrared motion sensor designed to detect changes in infrared radiation from people or other warm objects. When motion is detected, the module outputs a high-level signal and maintains the output during its delay period, supporting repeated triggering until the detection condition ends. This makes it suitable for presence detection, automatic lighting, security systems, and other motion-triggered embedded applications.
The sensor provides a detection distance of up to 500 cm with a sensing angle below 100 degrees. It communicates with compatible M5Stack controllers through PORT.B using the HY2.0-4P interface and supports development with UIFlow and Arduino. With a static current below 60 uA, an operating-temperature range from -20 C to +80 C and 2 LEGO-compatible mounting holes, the U004 can be integrated into compact automation, IoT, and interactive projects. A 2-second delay applies after motion detection is triggered.
Key Features
- Passive Infrared Detection: Detects changes in infrared radiation from people and other warm objects without emitting an active sensing signal.
- 500 cm Detection Distance: Supports motion detection at distances up to 500 cm under suitable operating conditions.
- Wide Sensing Area: Provides a sensing angle of less than 100 degrees for area-based motion detection.
- 2-Second Delay: Maintains the triggered output with an approximately 2-second delay after detection.
- Repeatable Triggering: Output remains active and supports repeated triggering while motion continues to be detected.
- Low Static Current: Consumes less than 60 uA in the specified static condition.
- Digital Output: Provides a high-level signal when infrared motion is detected and returns low when the trigger condition ends.
- PORT.B Communication: Designed to connect with compatible M5Stack controllers through PORT.B.
- HY2.0-4P Interface: Uses the standard M5Stack HY2.0-4P connector for convenient system integration.
- Wide Operating Temperature: Supports operation from -20 C to +80 C.
- Development Support: Compatible with UIFlow and Arduino development environments.
- LEGO-Compatible Mounting: Includes 2 LEGO-compatible holes for mechanical installation and prototyping.
Applications
- Human-presence detection
- Motion-triggered lighting
- Smart-home automation
- Security and alarm systems
- Occupancy detection
- IoT sensing projects
- Interactive installations
- Automatic door-control projects
- Energy-saving control systems
- Robotics
- M5Stack development projects
- Embedded motion-detection systems

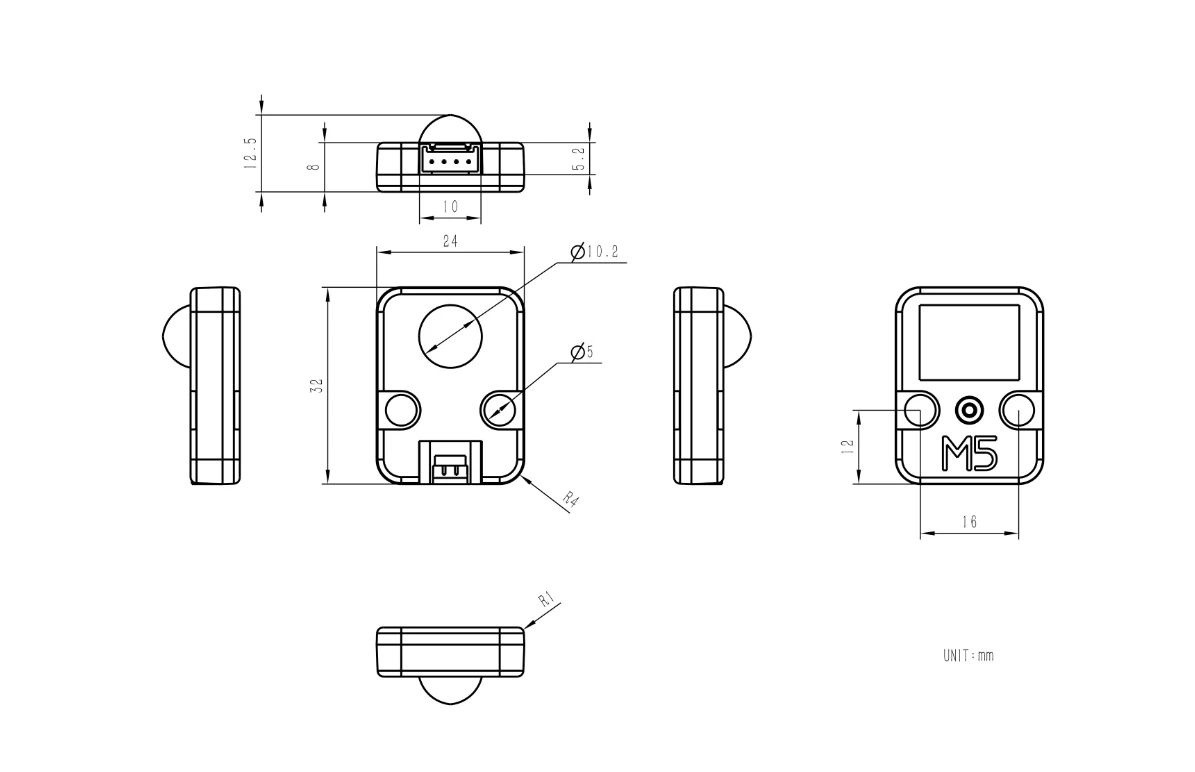

Model Size
Package Includes:
- 1 x Unit PIR
- 1 x HY2.0-4P Grove Cable (20cm)
